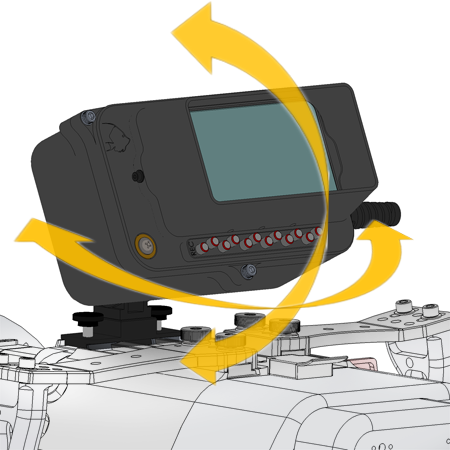

Tilt, pivot and swivel for the perfect, comfortable viewing position.
Ask any seasoned professional "What makes underwater imaging easy and painless?" The list is short: reliability, perfect balance / trim, simple user-friendly controls, and a bright underwater monitor rich with focus / exposure tools. That's the Gates family of Underwater Monitors.
High resolution displays, access to focus and exposure tools, shades and shade extensions, and of course a low profile tilt / swivel base mount for perfect viewing position. Reliability is inherent: Seal Check fittings are standard to verify integrity *before* entering the water. And nearly all cables are custom made to Gates specifications with a tough outer jacket and internal water-block material. Should the cable accidentally be cut, water is restricted from travel to your LCD or precious camera.
Reaching the far corners of the world, Gates housings are tasked with the most demanding projects extending from marine research and military to television and cinema productions. Experts know that failure is not an option, so they never take a chance…. they take a Gates!

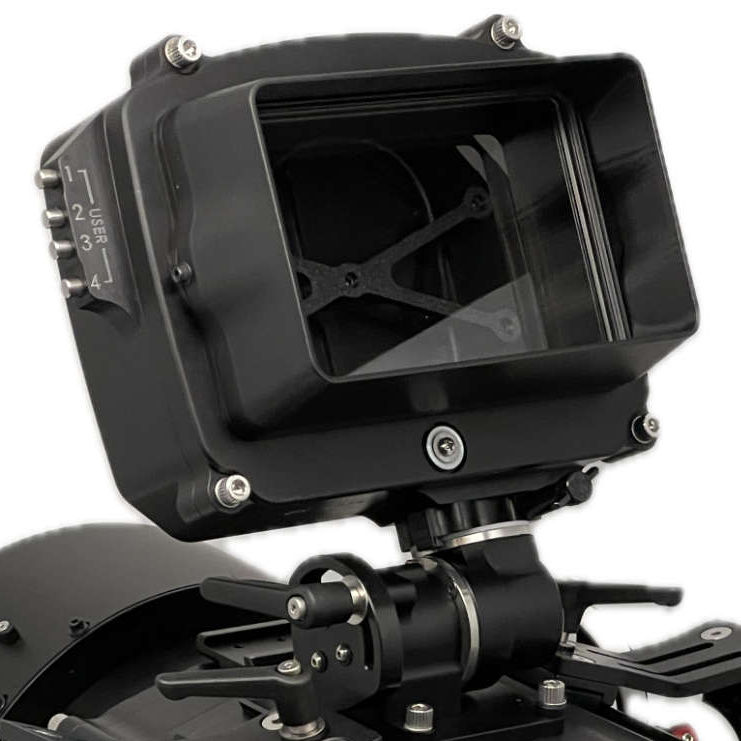

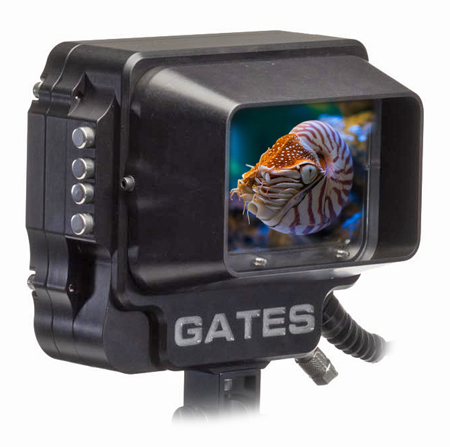

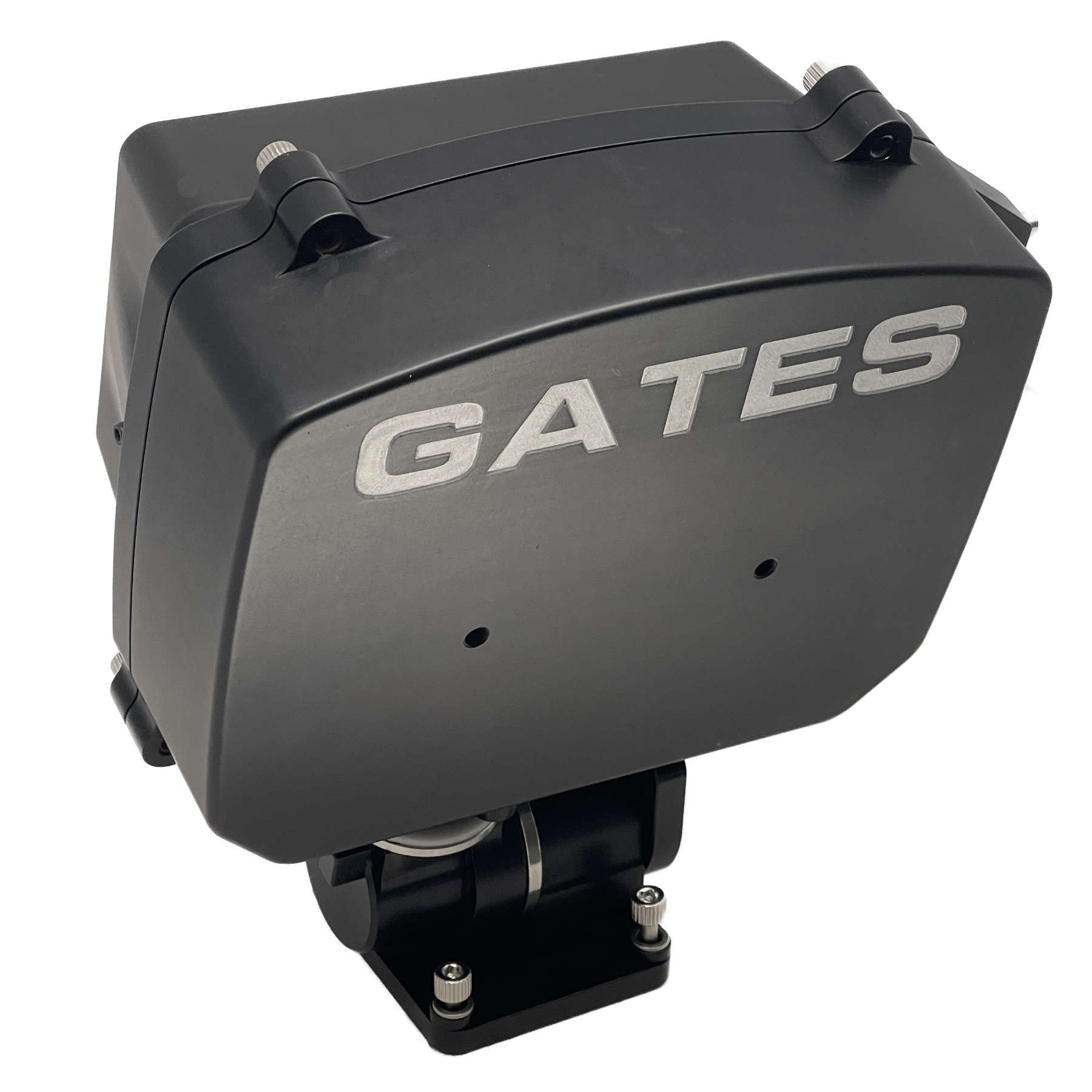

RT73 has not external Monitor-to-Camera housing cable. It utilizes the RED Monitor Interface (RMI) Cable, passing through a sealed, dry tilt / swivel mount. Genuine innovation. DSMC3 RED TOUCH 7.0" (730-0029) LCD is a big 7" / 178 mm 1920 x 1200 display with brilliant HDR illumination. Neutrally buoyant design means no fighting a rig that wants to flip over. Only Gates offers a professional 2-year renewable warranty on all housings. Replacement 39 in RMI cable is purchased from REDRT73 Underwater Monitor Housing
Compatible Housings: PRO RAPTOR
Gates "Cable-Less" Design
Easy-to-see Daylight Bright 1300 nit Display

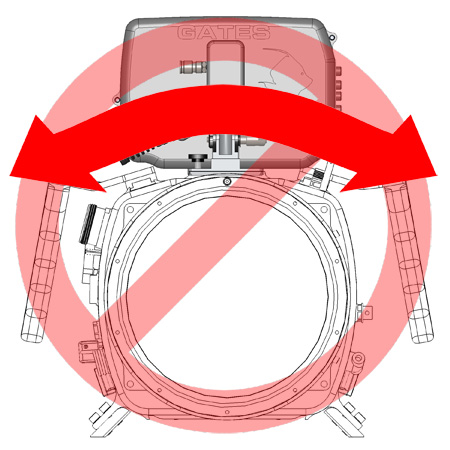

No 'Turtling'
2-Year Warranty
Display
Controls
Dimensions
Input Format
Material
Weight
Depth Rating
Warranty
Cable / Connectors
Power Source / Run Time
Resources

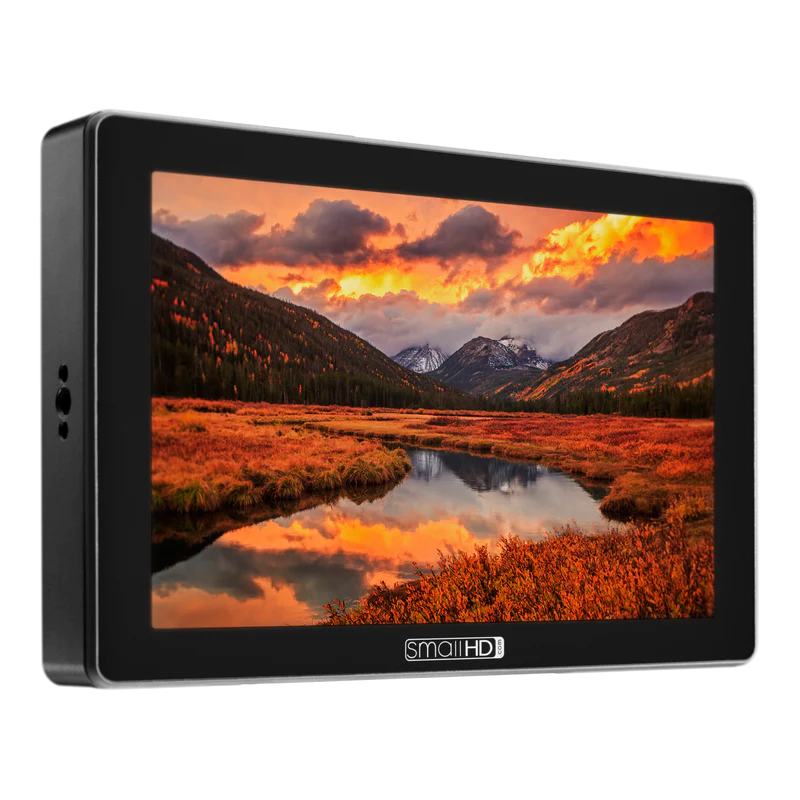

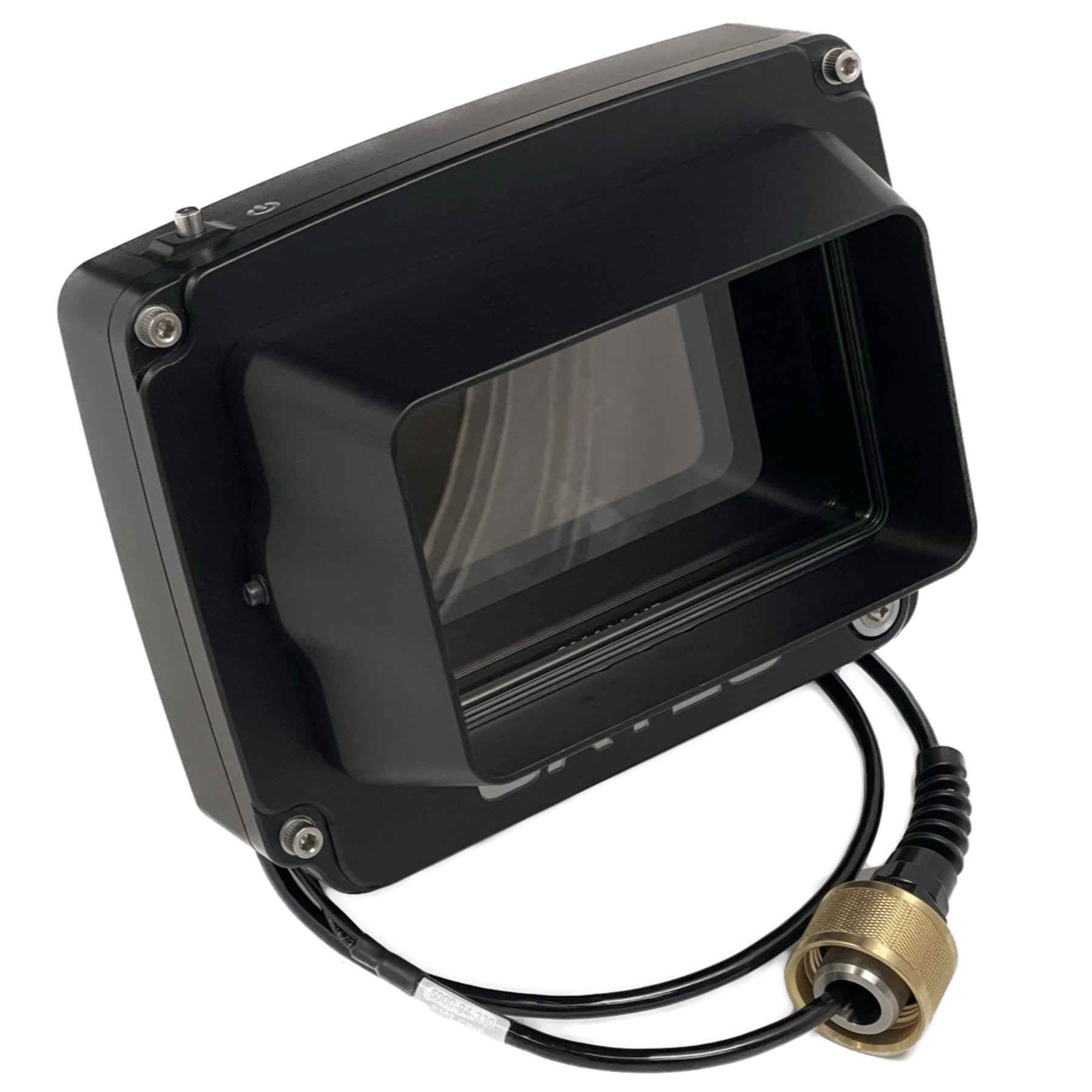

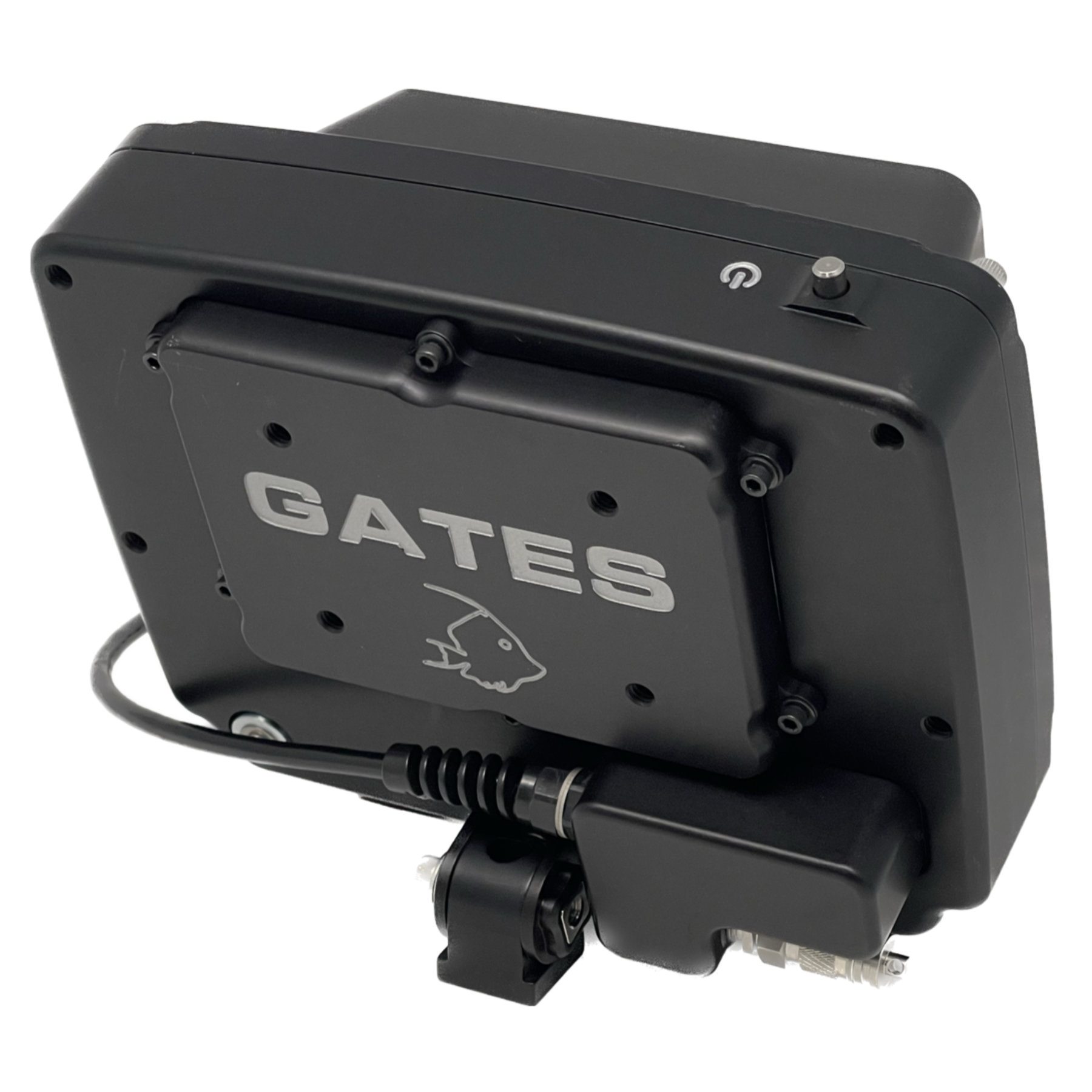

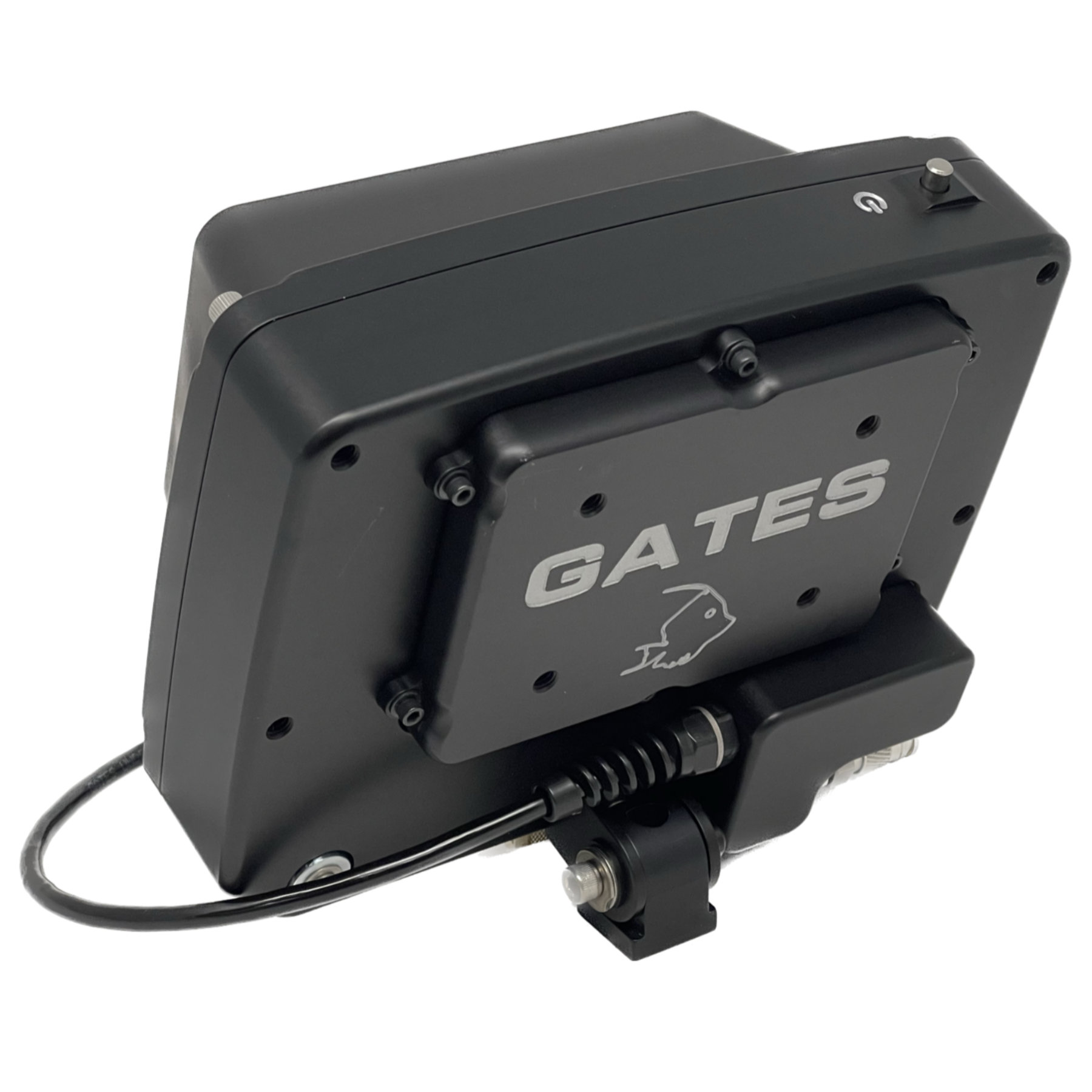

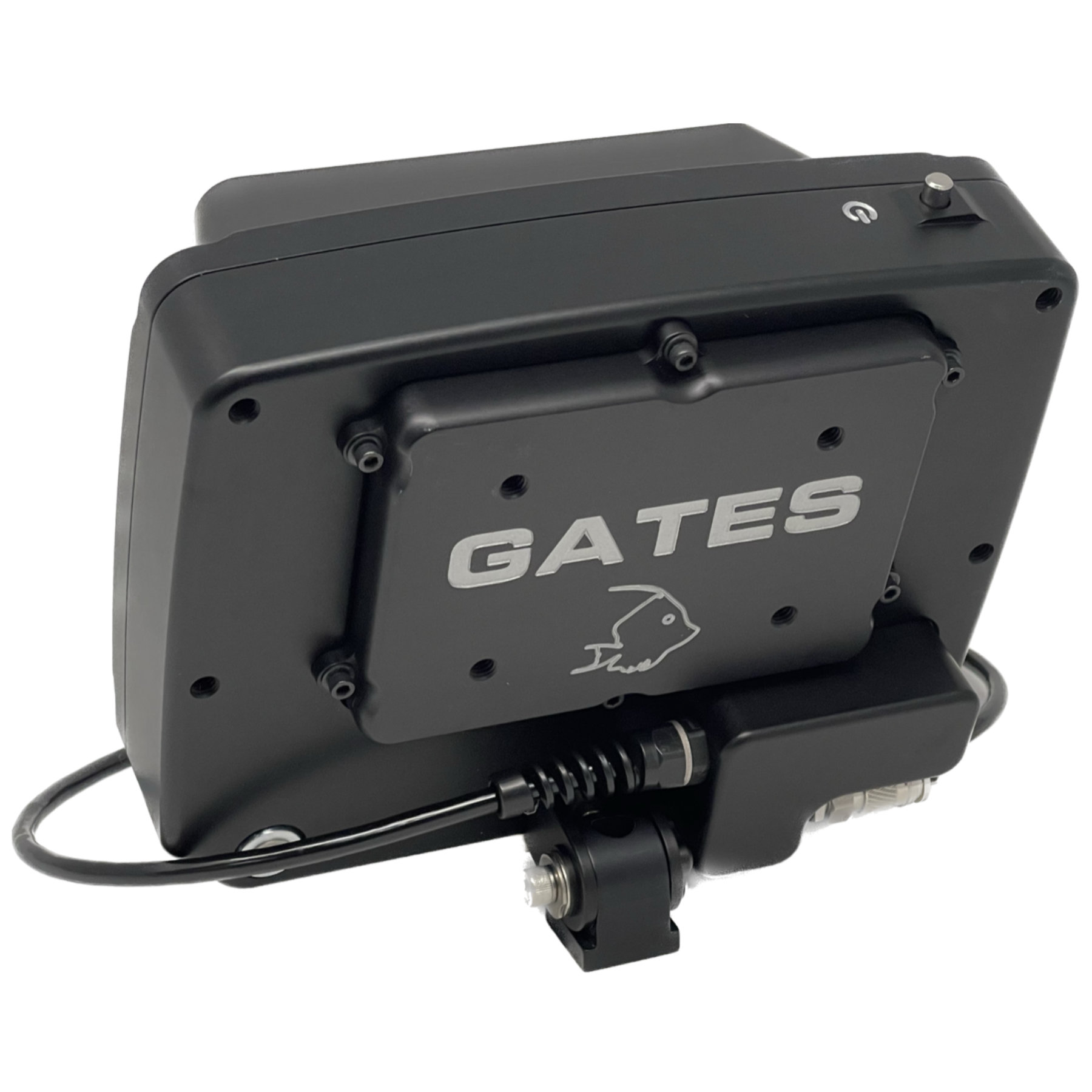

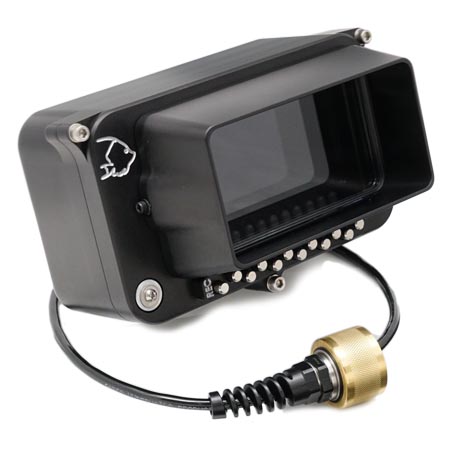

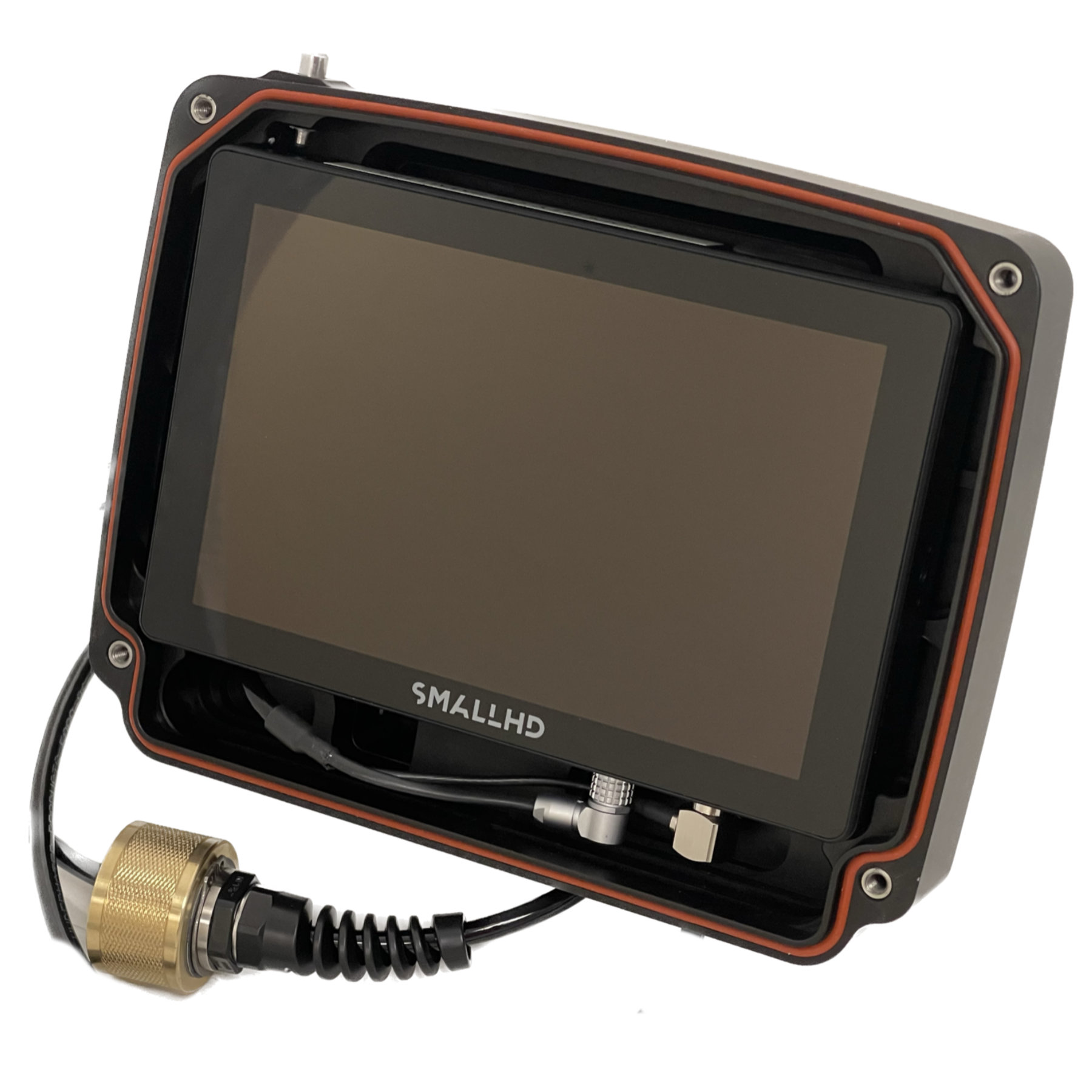

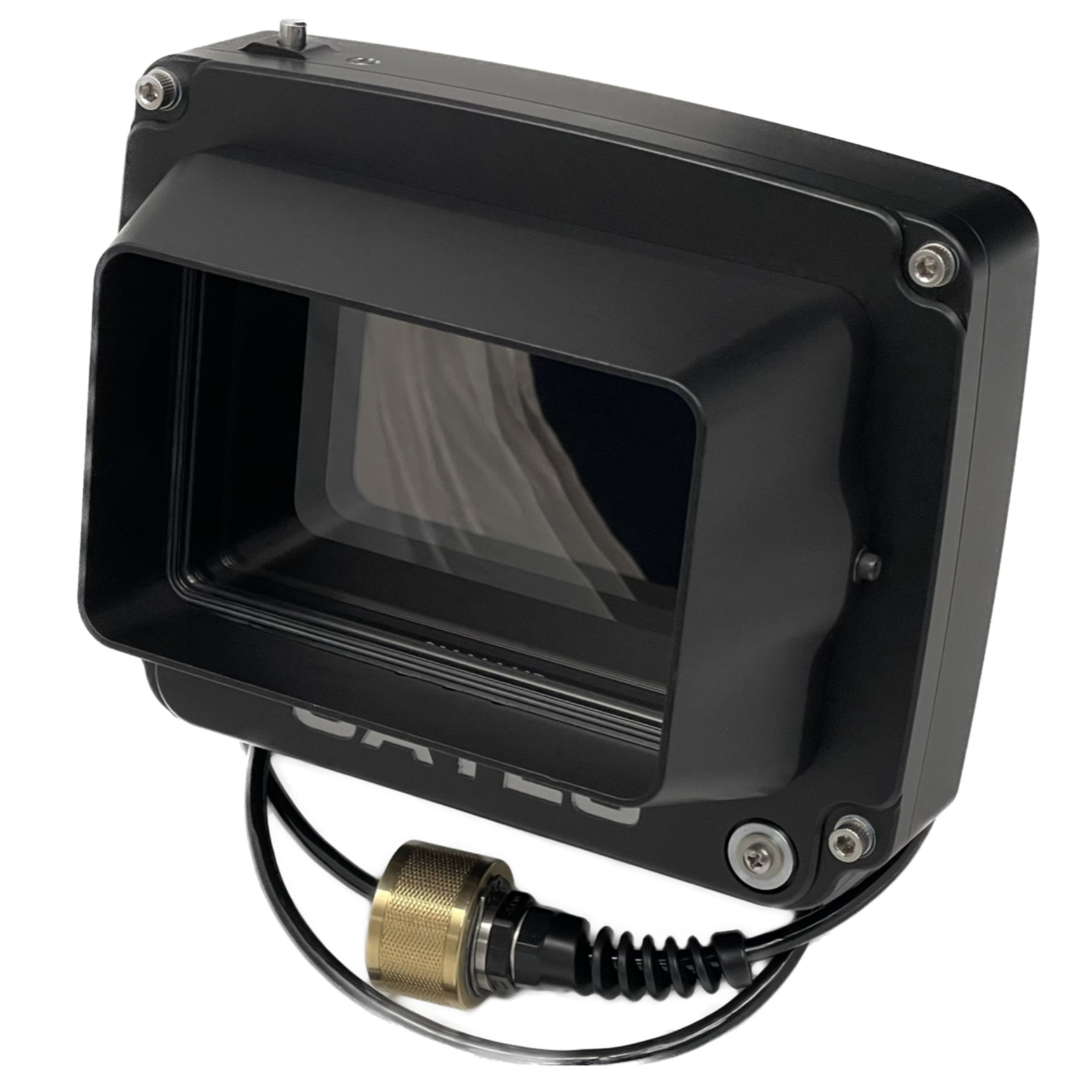

Gates EM7 CINE Underwater Monitor Housing is a bespoke, glove-fit for the SmallHD CINE 7 LCD, offering a vivid 1800 nit 1900x1200 resolution display, visible even the bright daylight of shallow tropical waters. As with all Gates External Monitors, its adjustable base can tilt / swivel to any position for the perfect viewing angle. Simple, robust SDI interface that is broadly compatible with a variety of Gates Housings for RED, ARRI, and Sony. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from the main camera housing shell. For the perfect trim, EM7 CINE can be either slightly negative or perfectly neutral buoyancy with included trim float -- no 'turtling'! Of course, Gates EM7 CINE Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years. SmallHD CINE 7 LCD is a big 7" / 178 mm 1920 x 1200 display with brilliant HDR illumination. with a tough polyurethane jacket is "bulletproof". Power can be either 2x Sony L-Series batteries (mounted to CINE 7 LCD) or from the main housing system. Only Gates offers a professional 2-year renewable warranty on all housings. Adjust EM7 CINE for the perfect viewing angle. A true professional touch. Neutrally buoyant design means no fighting a rig that wants to flip over. EM7 CINE Underwater Monitor Housing
Compatible Housings: GATES IMMERSIVE HOUSING DEEP WEAPON - RAPTOR
ARRI ALEXA MINI / MINI LF ALEXA 35 ARRI ALEXA FLEX4K
Easy-to-see Daylight Bright 1800 nit Display
Rugged, Water Blocked Cable

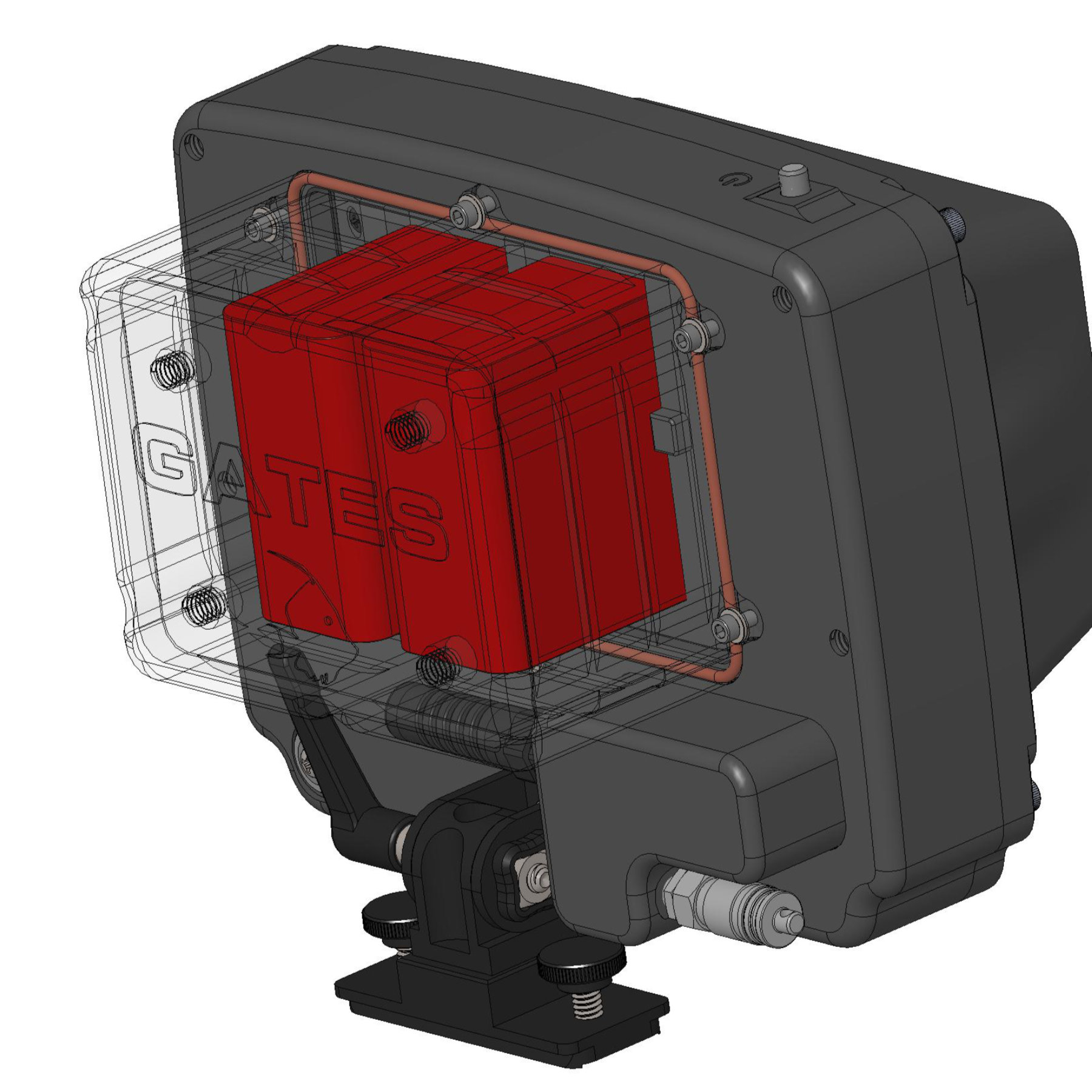

Dual Power Options
2-Year Warranty
Tilt / Swivel base mount
No 'Turtling'
Display
Controls
Dimensions
Input Format
Material
Weight
Depth Rating
Warranty
Cable / Connectors
Power Source / Run Time
Gates Immersive Housing
Mini/ Mini LF / ALEXA 35 / ALEXA / FLEX4K Housings
DEEP WEAPON / DEEP RAPTOR Housing
Housings using Gates MultiConn (GMC) bulkhead connector system

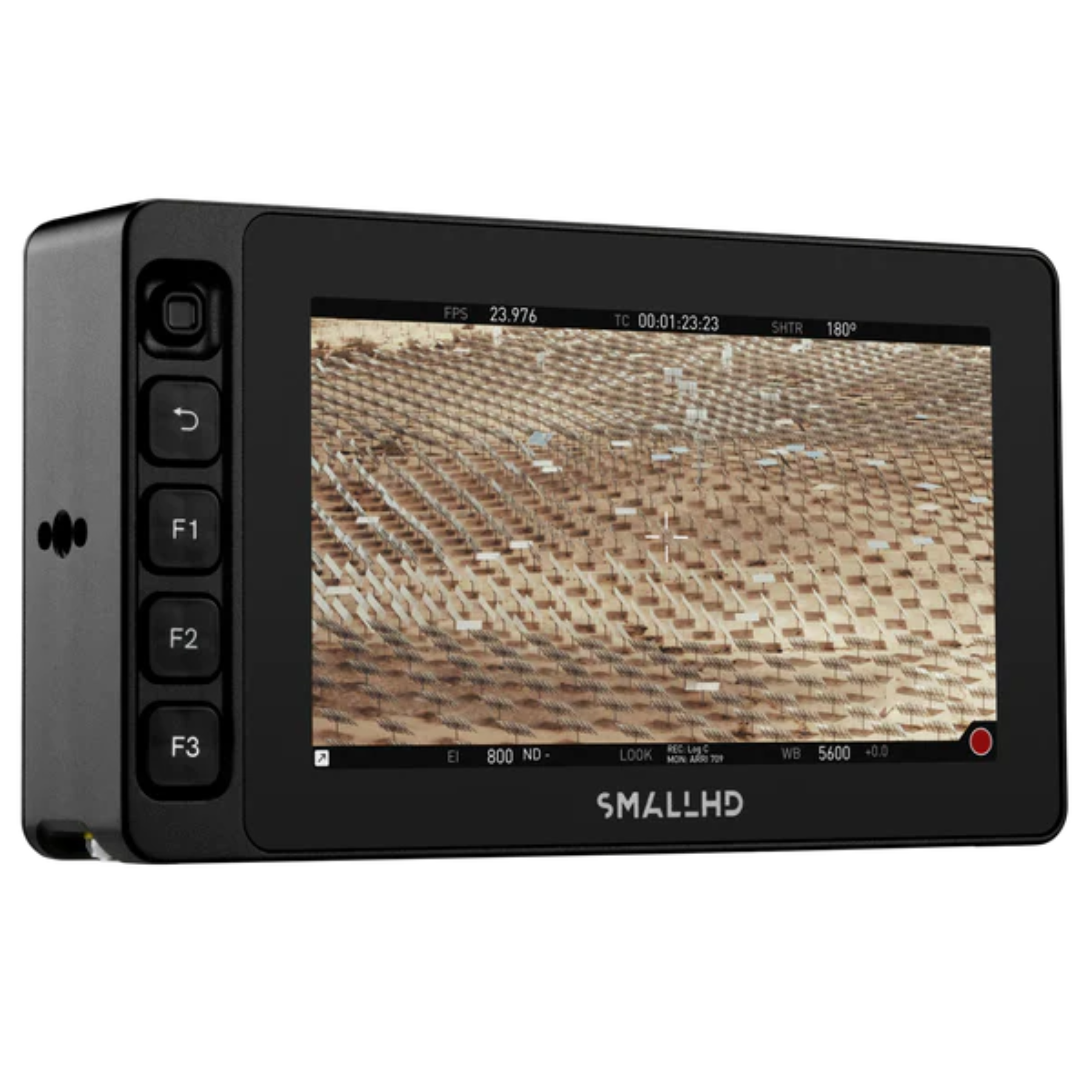

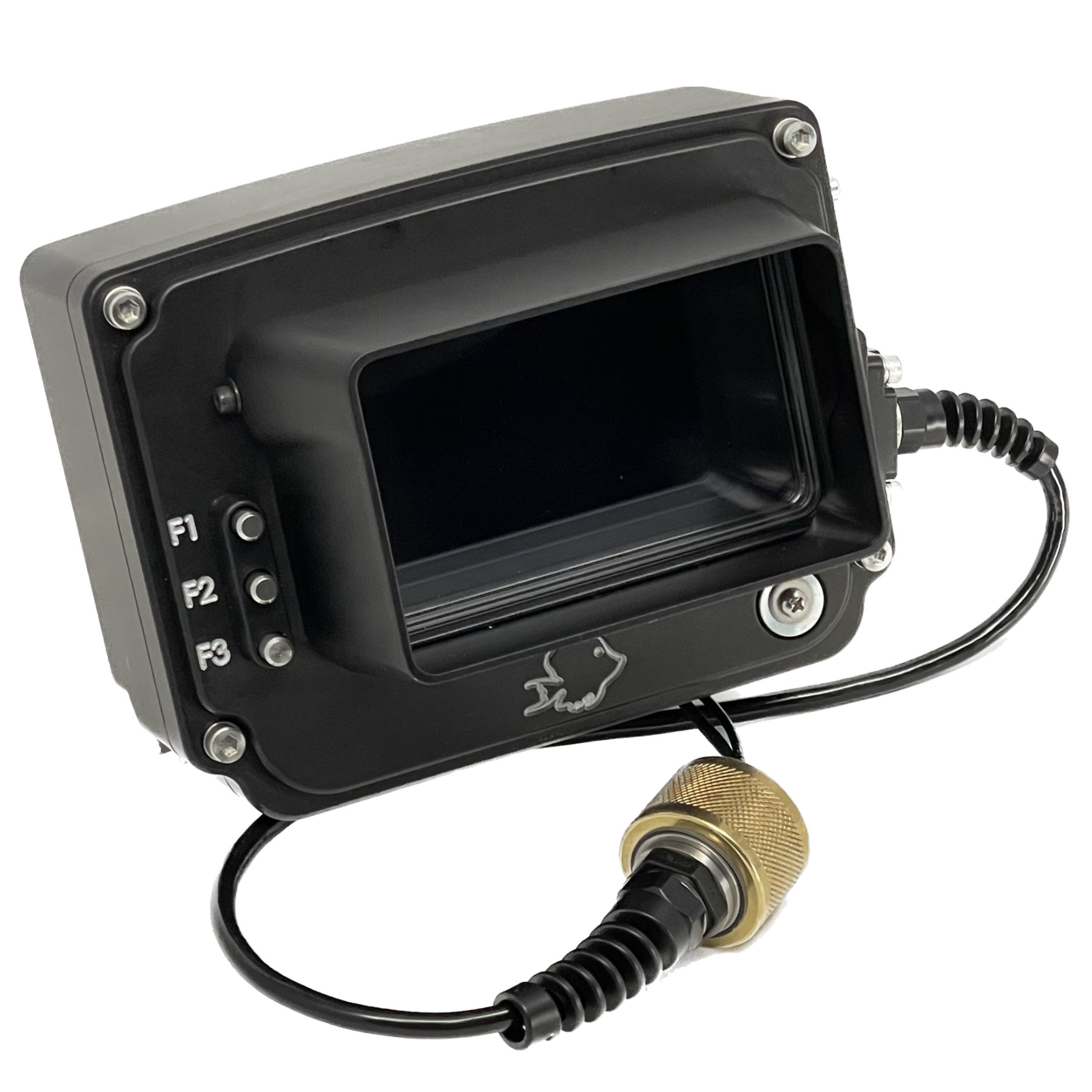

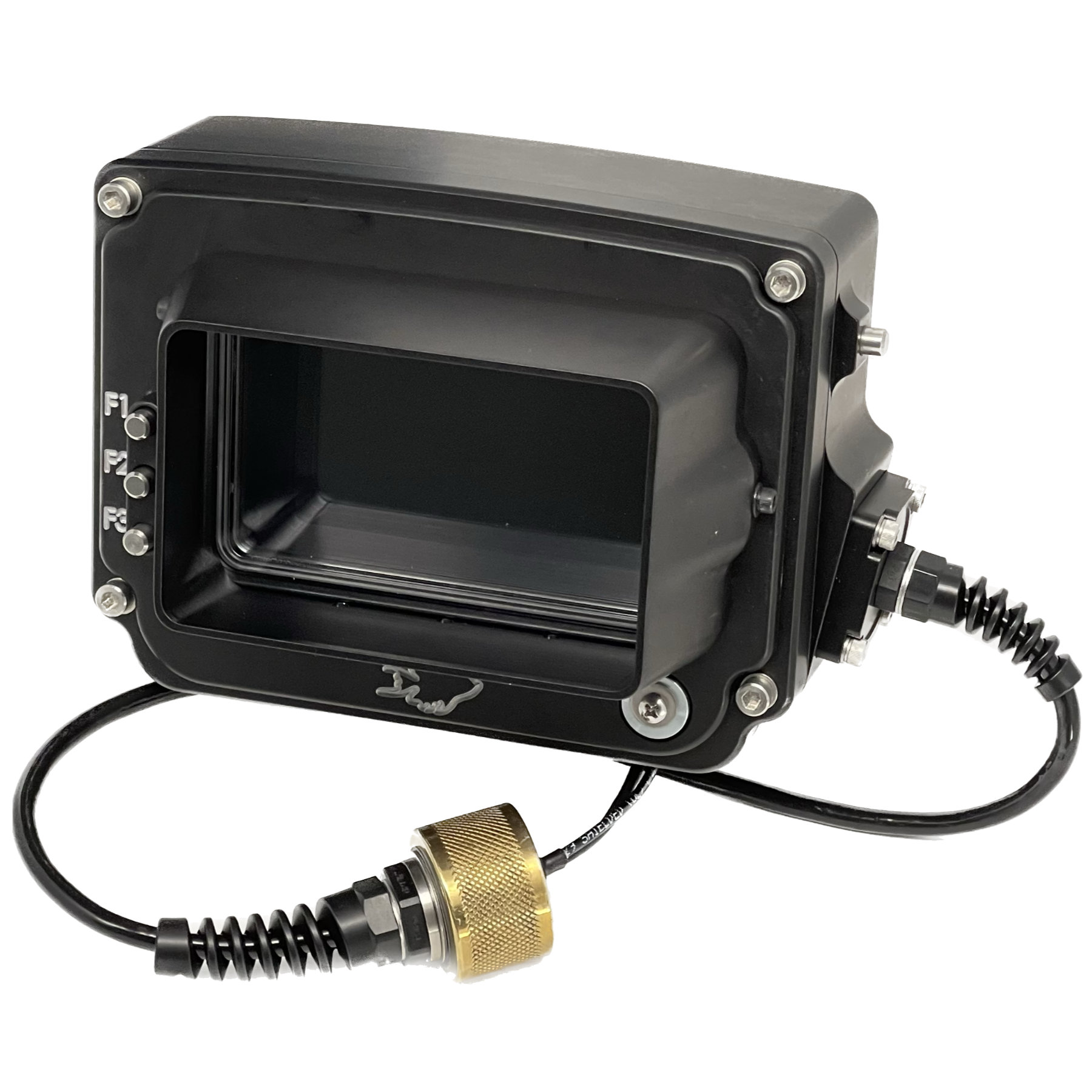

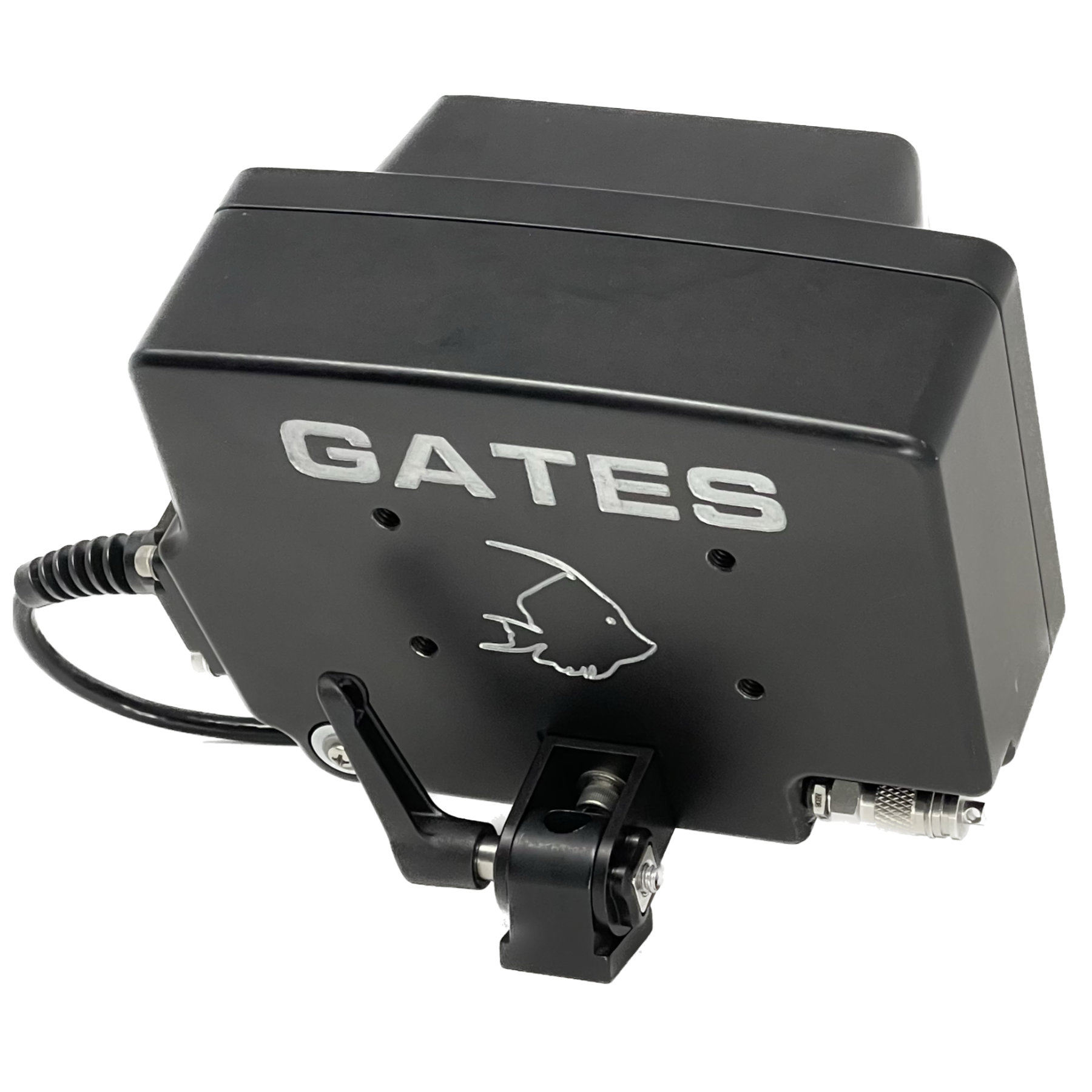

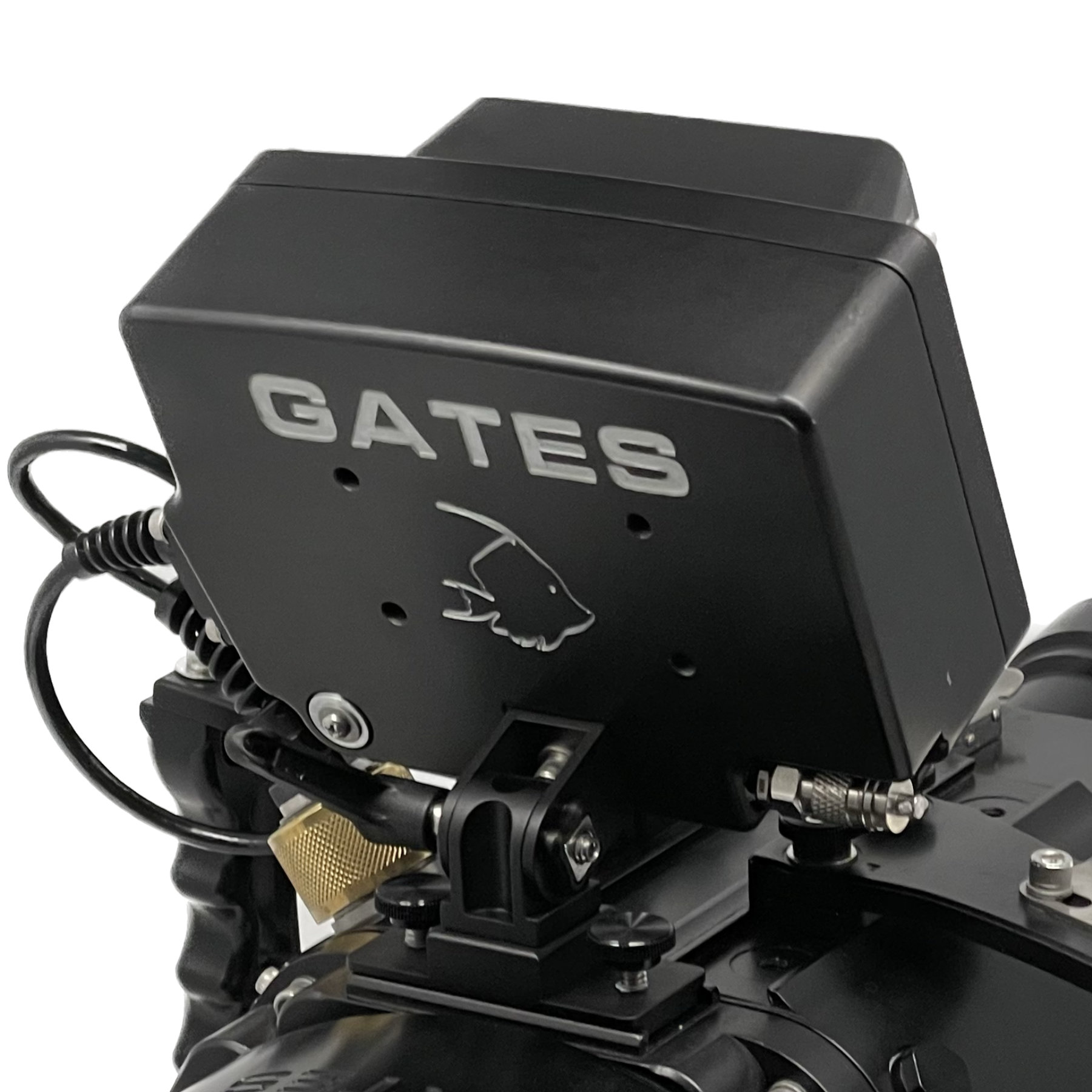

Gates EM5 ULTRA Underwater Monitor Housing is a tailored, glove-fit for the SmallHD ULTRA 5 LCD, with a powerful 3000 nit HD display, visible even in the harshest daylight. The adjustable base can tilt / swivel to any position for the perfect viewing angle. An SDI interface is simple, robust, and broadly compatible with a variety of Gates Housings including RED and ARRI. Power is driven by the camera power source inside the main housing shell for long run time. And the EM5 ULTRA can be either slightly negative buoyancy or perfectly neutral with included trim float -- no 'turtling'! Of course, Gates EM5 ULTRA Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years. 5" / 125 mm widescreen display is a brilliant 3000 nits HDR illumination. with a tough polyurethane jacket is "bulletproof". are programmable, and easily accessible next to the shaded LCD. Only Gates offers a professional 2-year renewable warranty on all housings. Adjust EM5 ULTRA for the perfect viewing angle. A true professional touch. Neutrally buoyant design means no fighting a rig that wants to flip over. EM5 ULTRA Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ALEXA 35 ARRI ALEXA DEEP WEAPON - RAPTOR FLEX4K
Super Bright 3000 nit Widescreen HD Display
Rugged, Water Blocked Cable

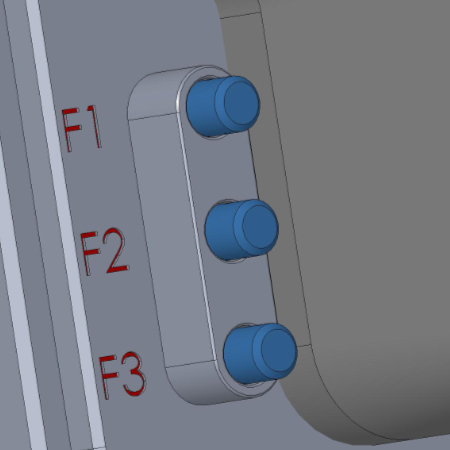

F1 / F2 / F3 Controls
2-Year Warranty
Tilt / Swivel base mount
No 'Turtling'
Display
Controls
Dimensions
Input Format
Material
Weight
Depth Rating
Warranty
Cable / Connectors
Power Source / Run Time
Mini/ Mini LF / ALEXA 35 / ALEXA / FLEX4K Housings
DEEP WEAPON / DEEP RAPTOR Housing
Housings using Gates MultiConn (GMC) bulkhead connector system

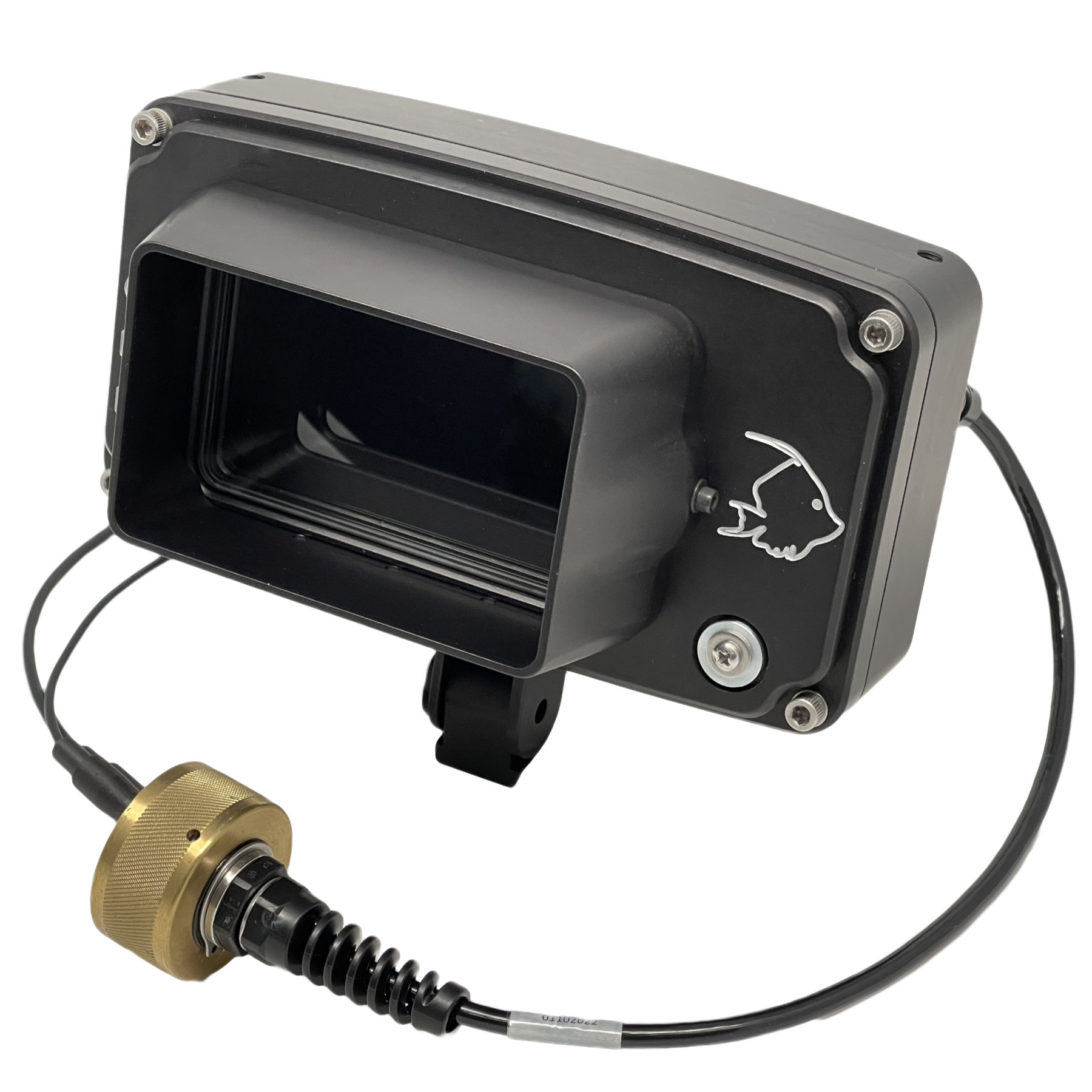

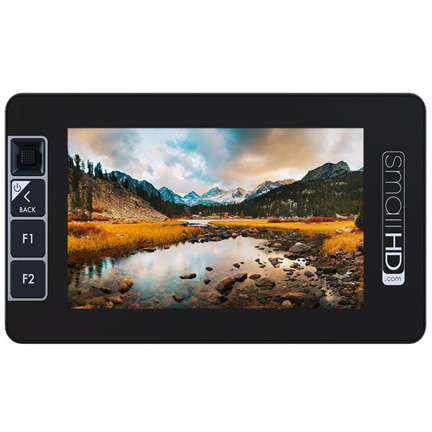

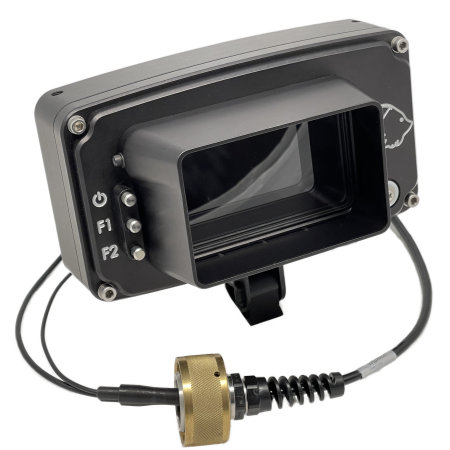

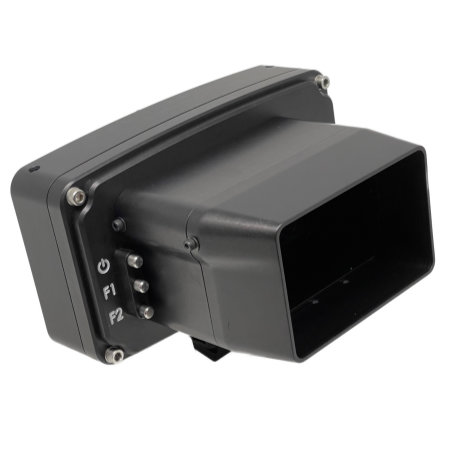

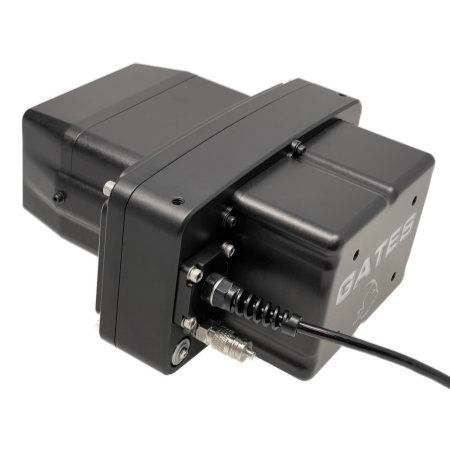

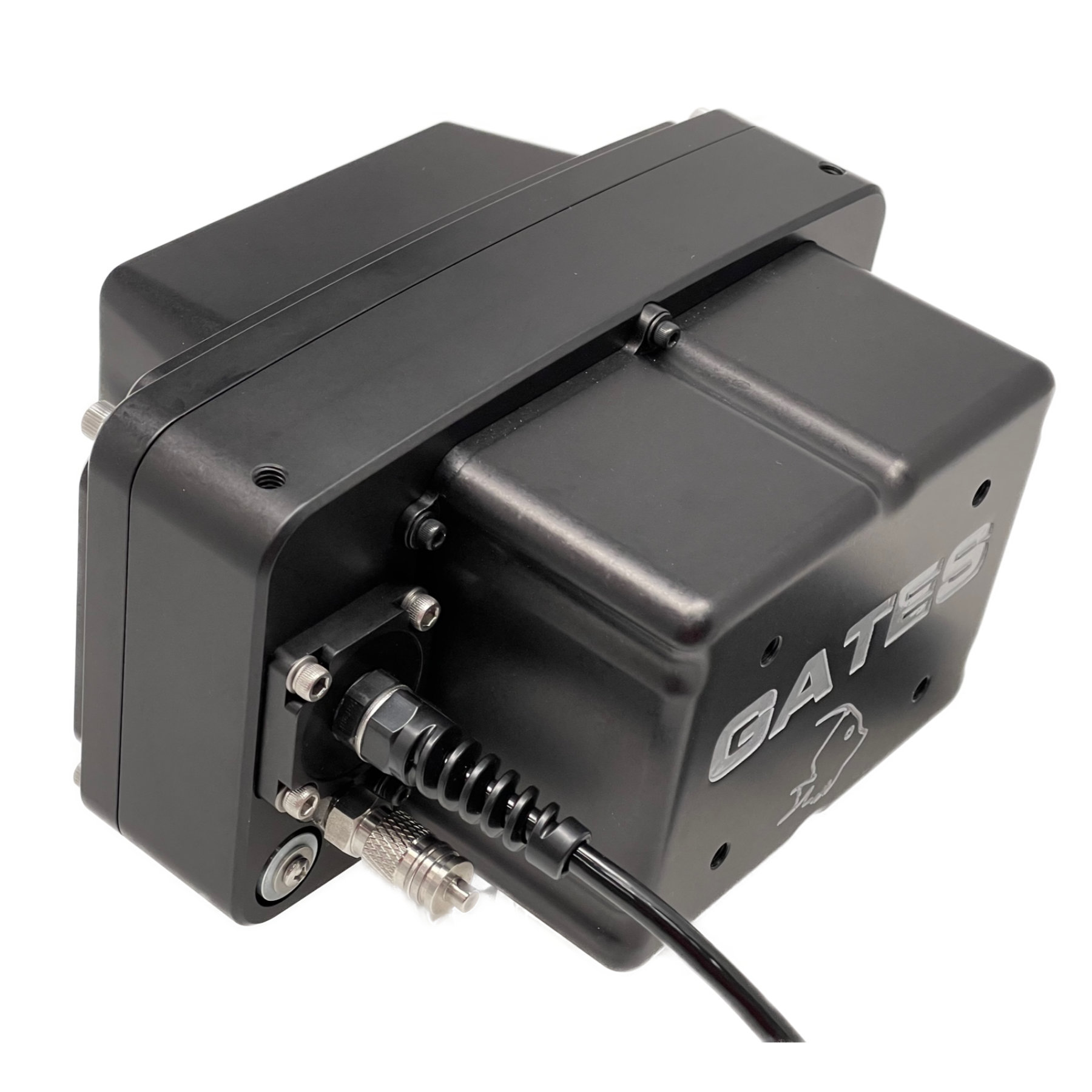

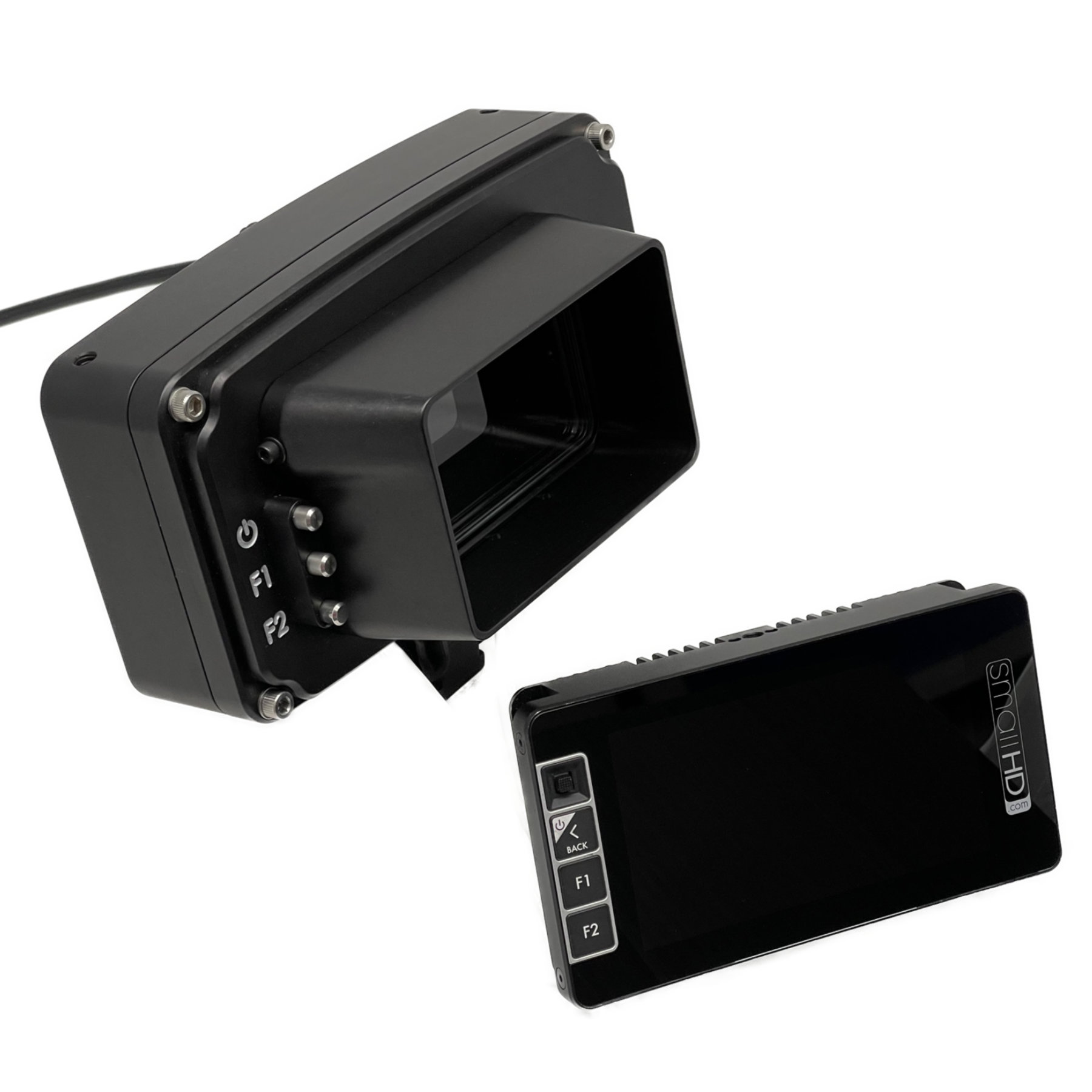

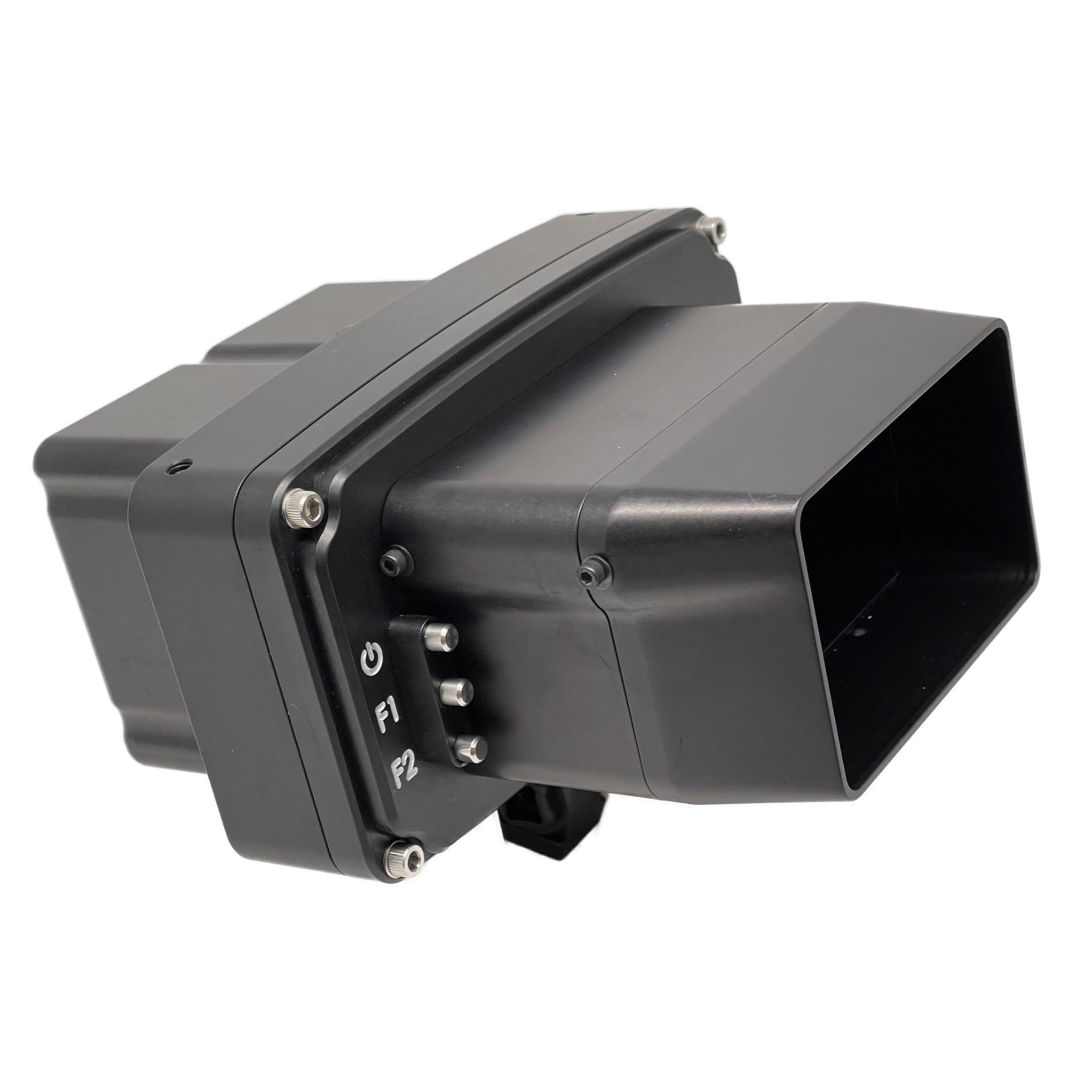

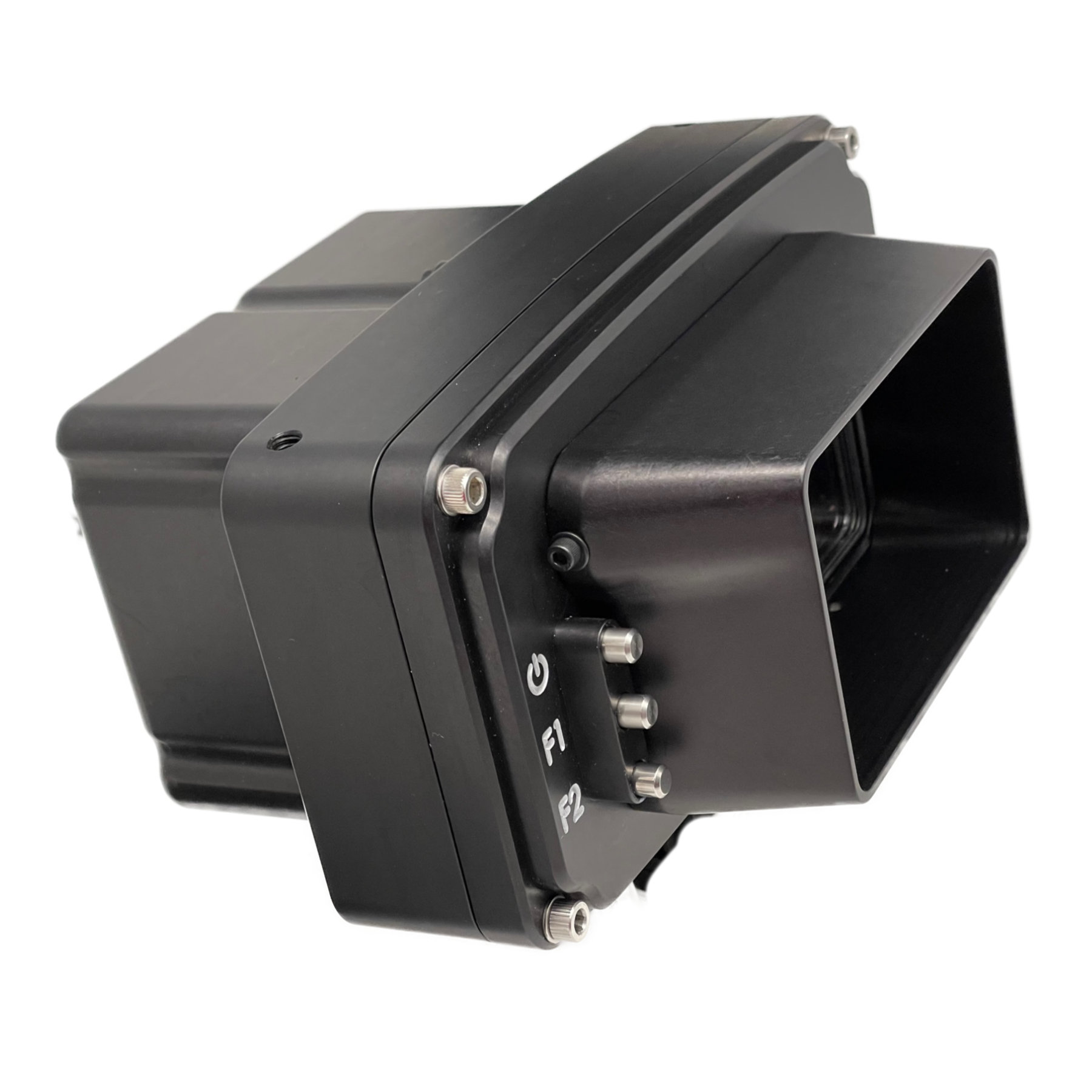

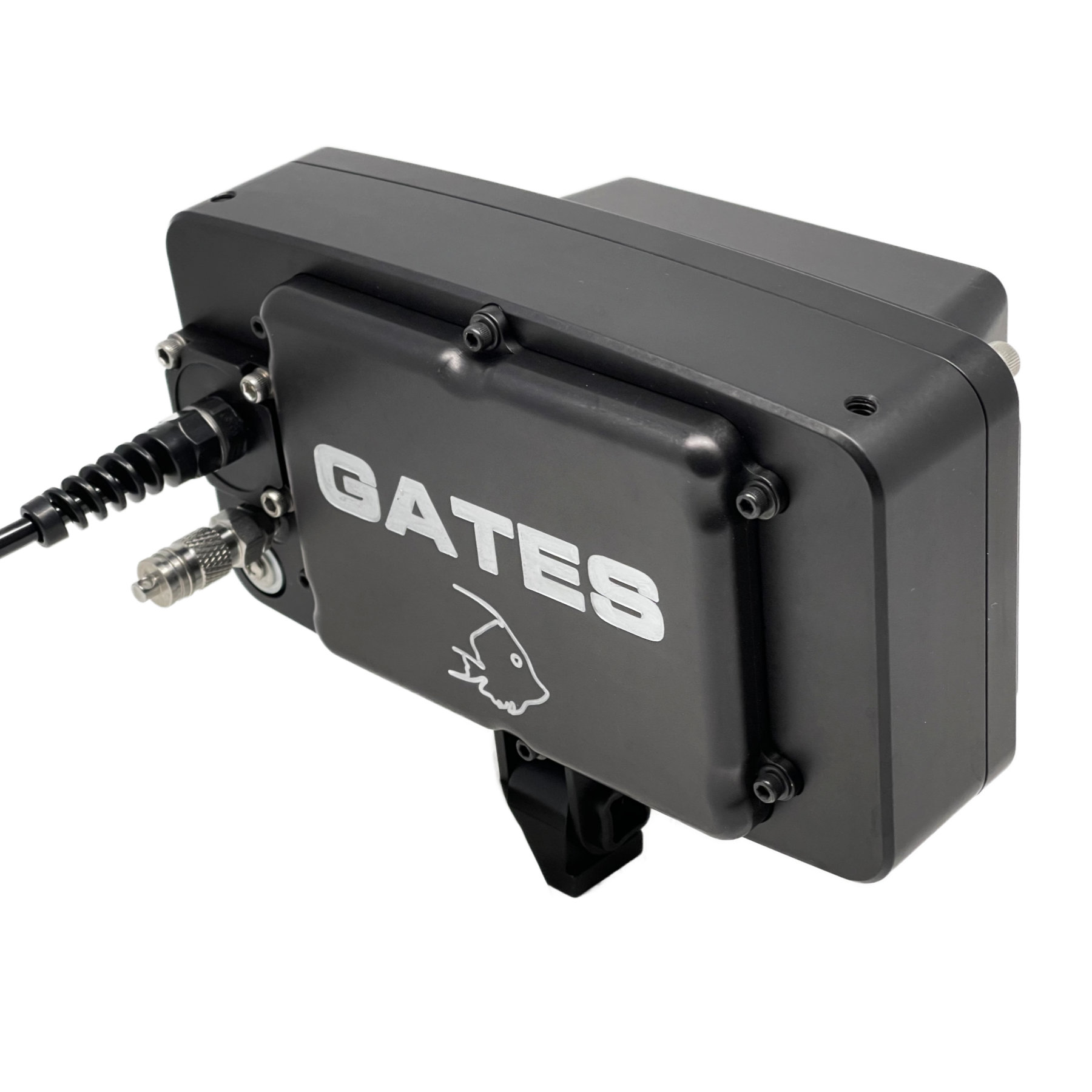

Tailored to the SmallHD 503 Ultrabright LCD, the Gates EM503 Underwater Monitor Housing is a brilliant 2200 nits, visible even in harsh daylight. Dedicated Power / F1 / F2 buttons are readily accessible next to the shaded 5" display, and the adjustable base can tilt / swivel to any position for the perfect viewing angle. SDI means simple, robust interface and broadly compatible with a variety of Gates Housings. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from inside the main housing shell. Both versions can be neutrally buoyant with included trim floats -- no 'turtling'! Of course, Gates EM503 Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years. 5" / 125 mm widescreen display is a brilliant 2200 nits HDR illumination. with a tough polyurethane jacket is "bulletproof". are easibly accessible next to the shaded LCD. Only Gates offers a professional 2-year renewable warranty on all housings. adjust EM503 for the perfect viewing angle. A true professional touch. Neutrally buoyant design means no fighting a rig that wants to flip over. EM503 Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ARRI ALEXA DEEP WEAPON - RAPTOR FLEX4K
Super Bright, Widescreen Display
Rugged, Water Blocked Cable

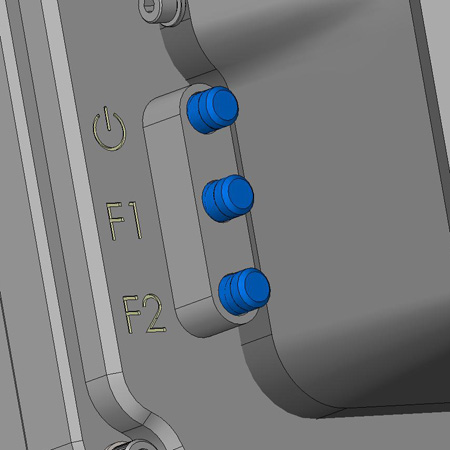

Power / F1 / F2 Controls
2-Year Warranty
Tilt / Swivel base mount
No 'Turtling'
Display
Controls
Dimensions
Input Format
Material
Weight
Depth Rating
Warranty
Cable / Connectors
Power Source / Run Time
Run time more than 4 hours.Mini/ Mini LF / ALEXA / FLEX4K Housings
DEEP WEAPON / DEEP RAPTOR Housing
Housings using Gates MultiConn (GMC) bulkhead connector system

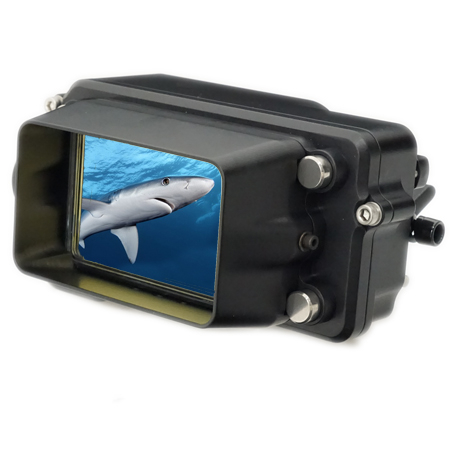

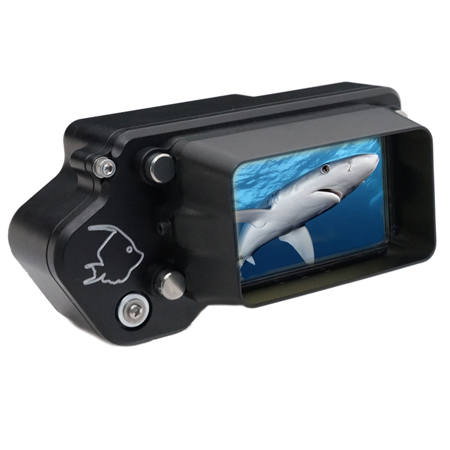

The Gates Starlite ST5 is specifically designed for the Transvideo Starlite SDI monitor / recorder (not included), a compact, smartphone-size 5.0” / 125mm color LCD. Accessible on the Starlite LCD via the ST5 housing are 'Smart Corners' with direct access to a variety of functions including histogram, vectorscope, waveform and peaking. The Startlite ST5 is a swivel-base mounted Underwater Monitor for viewing, framing and focus at any angle -- even in bright sunlight. The ST5 draws power from the camera or v-lock battery, preserving a low profile to the housing and eliminating extra batteries. Of course, the Starlite ST5 External Monitor housing comes with Gates 2 year renewable warranty and ‘bulletproof’ construction. Reliable, durable, dependable – the Gates hallmark since 1969. 5" / 125 mm widescreen display. is robust and reliable. Corner controls on the touch screen provide user-assignable functions. Only Gates offers a professional 2-year renewable warranty on all housings. The ST5 draws power from the camera for a more compact size and no additional batteries needed. Starlite ST5 Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ARRI ALEXA DEEP WEAPON DEEP DRAGON
Compact Size, Widescreen Display
SDI Interface
Assignable Button Control
2-Year Warranty
External Power
Display
Controls
Dimensions
Input Formats
Material
Weight
Depth Rating
Warranty
Cable / Connections
Power / Run Time
SU&C Guides
Replacement Cables

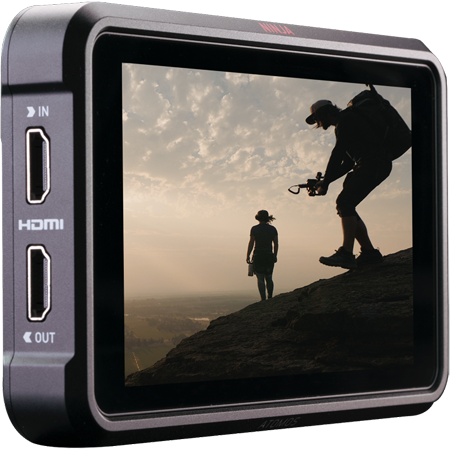

1000 nits bright LCD. 4K/60P recording in ProRes RAW. Extensive focus / exposure tools. All in a compact, neutrally buoyant package. That's the Gates NVS External Monitor Housing. Designed specifically for the Atomos NINJA V, SHINOBI and SHINOBI SDI, Gates NVS Underwater Monitor Housing accommodates all three with field-configurable changes. Touch screen buttons are readily accessible below the shaded 5" display, and the mounting base will tilt / swivel to any position for the perfect viewing angle. Battery powered or driven by the camera v-lock (SHINOBI SDI only), NVS preserves a streamlined, low profile to the housing for minimal water resistance. Of course, Gates NVS Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years. 5" / 125 mm widescreen display is a bright 1000 nits. are all supported via field-configurable changes. Contact us for details. are easibly accessible below the shaded LCD. Only Gates offers a professional 2-year renewable warranty on all housings. adjust NVS for the perfect viewing angle. A true professional touch. Neutrally buoyant design means no fighting a rig that wants to flip over. NVS Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ARRI ALEXA DEEP WEAPON-RAPTOR SONY Z90
Compact Size, Widescreen Display
ATOMOS NINJA V, SHINOBI and SHINOBI SDI LCD's
Touch screen controls
2-Year Warranty
Tilt / Swivel base mount
No 'Turtling'
Display
Controls
Dimensions
Input Formats
Material
Weight
Depth Rating
Warranty
Cable / Connections
Power / Run Time
Mini/ Mini LF / ALEXA / FLEX4K Housings
Standard cable length (Housing to Monitor): 24-28 in / 61-71 cm. Custom length available. Mini/ Mini LF / ALEXA / FLEX4K Housings
Standard cable length (Housing to Monitor): 16-18 in / 41-46 cm. Custom length available. Z90 Housing (for Sony PXW-Z90 Camera)
Standard cable length (Housing to Monitor): 25-28 in / 63-71 cm. Custom length available. DEEP WEAPON Housing
Standard cable length (Housing to Monitor): 25-28 in / 63-71 cm. Custom length available. AX700 / Z90 Housing (for Sony FDR-AX700 or PXW-Z90 Camera)
Standard cable length (Housing to Monitor): 30-36 in / 76-91 cm. Custom length available.

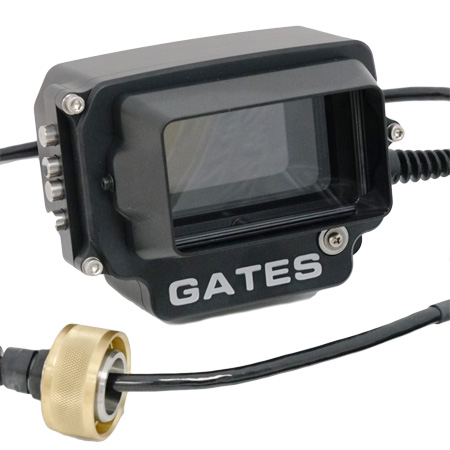

RT47 Underwater Monitor Housing
Compatible Housings: DEEP WEAPON DEEP DRAGON Pro Action Pro Explore

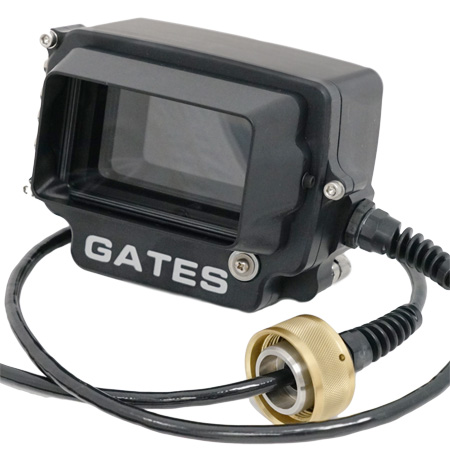

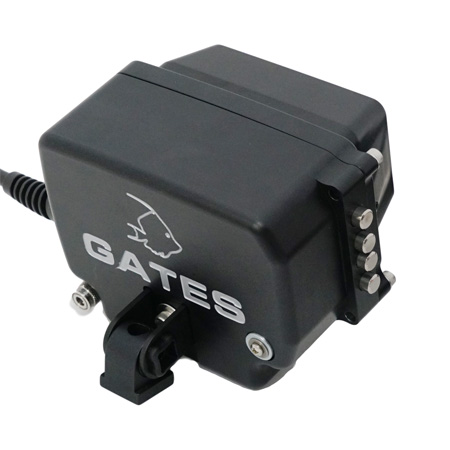

Framing, focus and exposure control are mastered with the RT47 Underwater Monitor system. Designed specifically for the RED TOUCH 4.7" LCD (not included), the RT47 Underwater Monitor provides access to all monitor functions including four side assignable buttons. Under license from RED Digital Cinema and utilizing Gates original bulkhead 'pass through' design, the interface cable between RED DSMC/DSMC2 cameras and RED TOUCH 4.7 is unbroken by additional connectors. Further, the cable has been adapted with a tough polyurethane jacket and internal water blocking materials.
Designed for RED TOUCH 4.7" LCD
with access to all 4 assignable keys.
(RED SKU 730-0019)
Water Blocked Cable
has a tough polyurethane jacket. A Gates original design.
Powered by Epic
No additional batteries are needed with the RED PRO External Monitor, keeping it small and light.
2-Year Warranty
Only Gates offers a 2-year renewable warranty on all housings.
Compatibility
- RED TOUCH 4.7" LCD (not included)
(RED SKU 730-0019)
Contols
- Assignable x 4
Dimensions
Connections
- Gates Pass Through bulkhead connector
Power
- Via connection to any DSMC (EPIC, Scarlet, Dragon) or DSMC2 (Weapon, Epic-W, Scarlet-W, Raven) camera
Weight
- Dry: 3.2 lbs / 1.45 kg
- In Water: Neutral
Construction
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
- Marine grade cable with polyurethane jacket and water block
Depth Rating
- 300 feet / 92 meters
Warranty
- 2-Years Renewable
Dimensional Drawings
Replacement Cable Assemblies
- Pro Action / Pro Explore: 5000-94-139 BCP ASSY, RT47 MONITOR FOR PA / PX
- DEEP WEAPON / DEEP DRAGON: 5000-94-118 BCP ASSY, RT47 MONITOR FOR DW / DD
- Standard cable length 30-36 in / 76-91 cm. Custom length available.
RPT7 Underwater Monitor Housing (RED PRO TOUCH 7)
Compatible Housings: DEEP WEAPON Pro Action Pro Explore

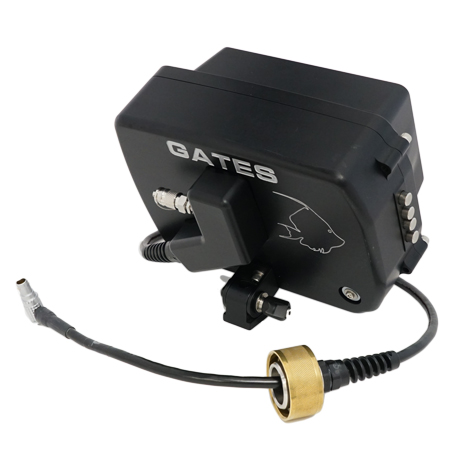

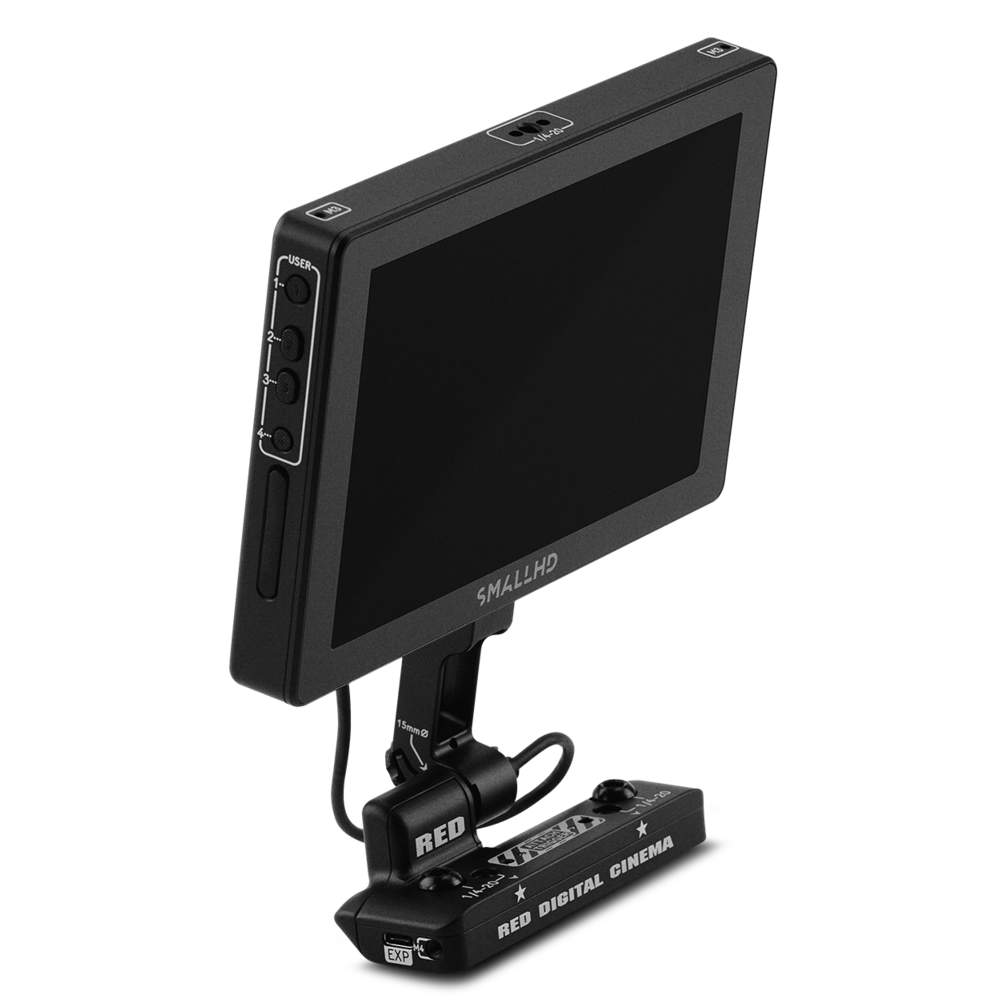

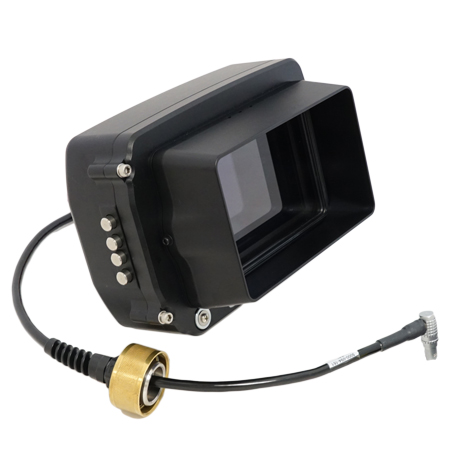

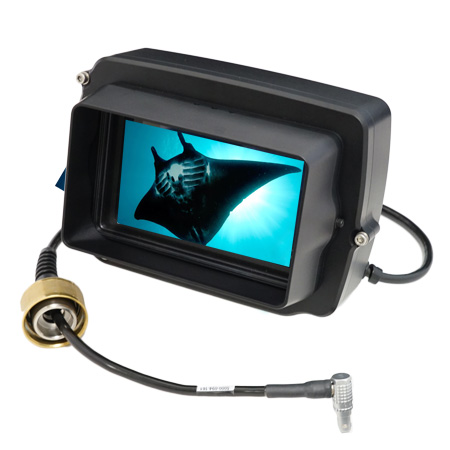

Designed specifically for the RED PRO TOUCH 7.0" LCD (not included), the GATES RPT7 Underwater Monitor makes framing, focus and exposure easy. A hi-res 1920 x 1136 resolution display and a wide variety of useful tools like edge peaking, false color, magnify and more are accessible via four easy-to-reach push controls on the RPT7 left side.
The LCD cable - under exclusive license from RED - is tough and reliable, too. No additional connectors are between DSMC2 camera and LCD, the result of a Gates proprietary 'pass through' design. Further, the cable has been adapted with a tough polyurethane jacket and -- should the jacket be damaged -- internal water blocking materials to inhibit water migration toward camera and LCD, protecting your investment in the worst case situation.
No 'Turtling"
Neutrally buoyant design means no fighting a rig that wants to flip over.
Rugged Water Blocked Cable
with a tough polyu jacket is bulletproof.

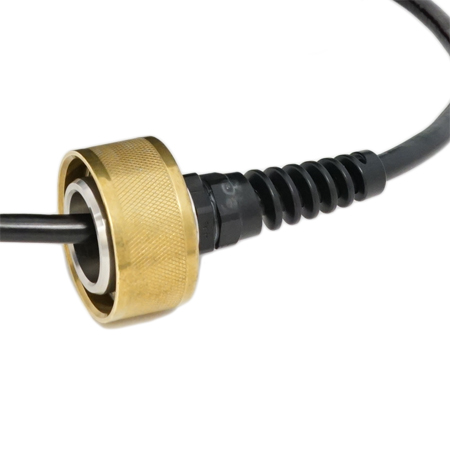

Gates original, reliable Pass Through Design
No added connectors between LCD and camera. Gates through and through.

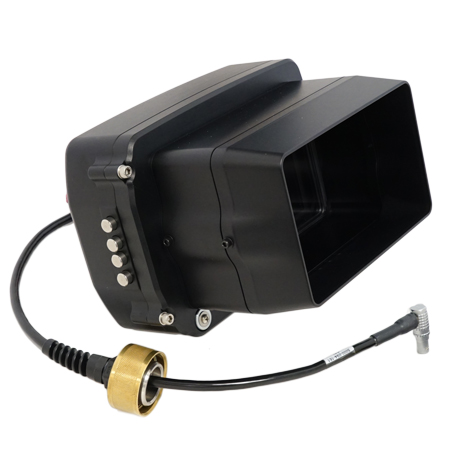

Shade Extensions (Optional)
Easy viewing in bright sunshine. Only from Gates.
Streamlined, Low Profile Mount
Despite its 7in size, the RPT7 fits close and low profile to the housing, a streamlined configuration.
2-Year Warranty
Only Gates offers a 2-year renewable warranty on all housings.
Compatibility
- RED TOUCH 7.0" LCD (not included) (RED SKU 730-0025)
- RED DSMC2 camera
Controls
- Assignable x 4
Dimensions
Connections
- Gates Pass-Through bulkhead penetrator design. No additional connectors between LCD and camera.
Power
- Via connection to DSMC2 camera
Construction
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
- Marine grade cable with polyurethane jacket and water block
Weight
- Dry: 4.7 lbs / 2.1 kg
- In Water: Slightly positive
Depth Rating
- 300 feet / 92 meters
Warranty
- 2-Years Renewable
SU&C Guides
Replacement Cable Assemblies
- Pro Action / Pro Explore: 5000-94-164 BCP ASSY, RPT7 / RTB7 MONITOR FOR PA / PX
- DEEP WEAPON: 5000-93-161 BCP ASSY, RPT7 / RTB7 MONITOR FOR DW / DD
- Standard cable length 16-18 in / 41-46 cm. Custom length available up to 72 feet / 182 cm

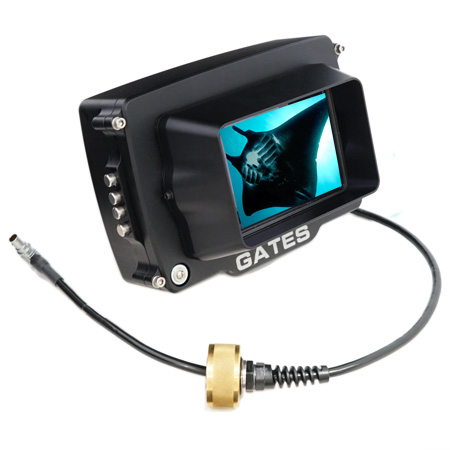

RTB7 Underwater Monitor Housing
Compatible Housings: DEEP WEAPON PRO EXPLORE PRO ACTION

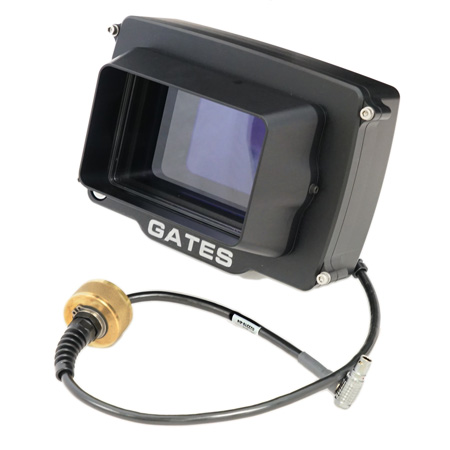

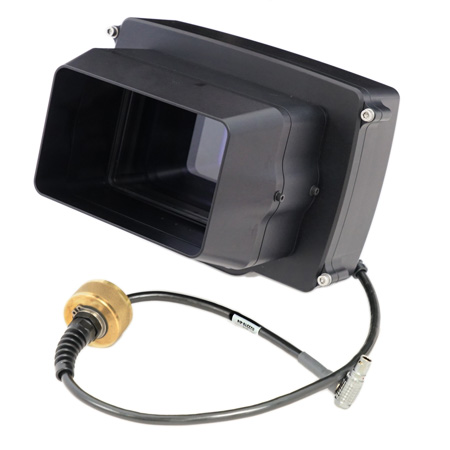

With an amazingly bright 2200 nit display, the RED PRO TOUCH ULTRA-BRITE 7.0" LCD (not included) in the GATES RTB7 Underwater Monitor makes framing, focus and exposure easy in the brightest daylight conditions. A wide variety of useful tools like edge peaking, false color, magnify and more are accessible via four easy-to-reach assignable push controls on the RTB7 left side.
Under exclusive license from RED, the LCD cable is "bulletproof", too. No additional connectors are between DSMC2 camera and LCD, the result of a Gates proprietary 'pass through' design. The cable has further been adapted with tough polyurethane jacket and -- should the jacket be damaged -- internal water blocking materials to inhibit water migration toward camera and LCD, protecting your investment in the worst case situation.
No 'Turtling"
Neutrally buoyant design means no fighting a rig that wants to flip over.
Rugged Water Blocked Cable
with a tough polyu jacket is bulletproof.
Gates original, reliable Pass Through Design
No added connectors between LCD and camera. Gates through and through.
Shade Extensions (Optional)
Easy viewing in bright sunshine. Only from Gates.
Streamlined, Low Profile Mount
Despite its highly visible 7in size, the RPB7 fits close and low profile to the housing, a streamlined configuration.
2-Year Warranty
Only Gates offers a 2-year renewable warranty on all housings.
Compatibility
- RED TOUCH ULTRA BRITE 7.0" LCD (not included) (RED SKU 730-0026)
- RED DSMC2 camera
Controls
- Assignable x 4
Dimensions
Connections
- Gates Pass-Through bulkhead penetrator design. No additional connectors between LCD and camera.
Power
- Via connection to DSMC2 camera
Construction
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
- Marine grade cable with polyurethane jacket and water block
Weight
- Dry: 5.9 lbs / 2.7 kg (no LCD) 7.4 lbs / 3.4 kg (with LCD)
- In Water: Slightly positive
Depth Rating
- 300 feet / 92 meters
Warranty
- 2-Years Renewable
SU&C Guides
Replacement Cable Assemblies
- Pro Action / Pro Explore: 5000-94-164 BCP ASSY, RPT7 / RTB7 MONITOR FOR PA / PX
- DEEP WEAPON: 5000-93-161 BCP ASSY, RPT7 / RTB7 MONITOR FOR DW / DD
- Standard cable length 16-18 in / 41-46 cm. Custom length available up to 72 feet / 182 cm

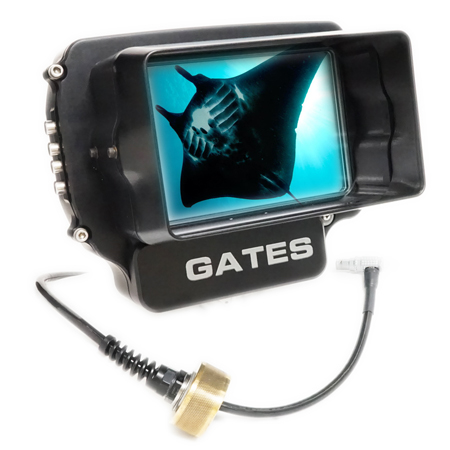

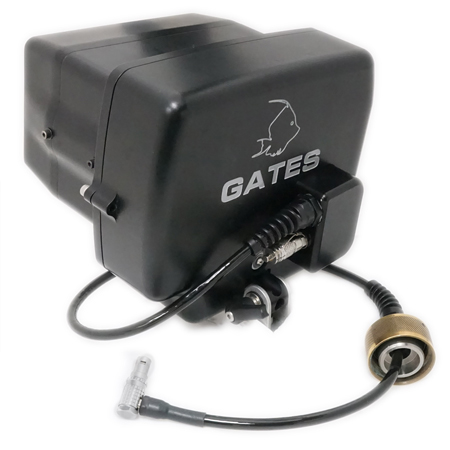

RT7 Underwater Monitor Housing
Compatible Housings: DEEP WEAPON DEEP DRAGON Pro Action Pro Explore

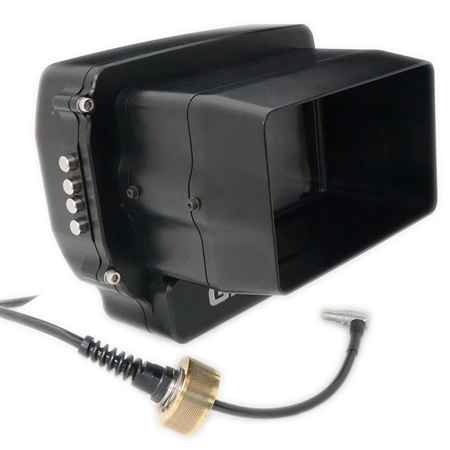

Framing, focus and exposure control are mastered with the RT7 External Monitor system. Designed specifically for the RED TOUCH 7" LCD (not included), the RT7 Underwater Monitor housing provides access to all monitor functions including four side assignable buttons. Under license from RED Digital Cinema, the interface cable between Epic Dragon and RED TOUCH 7 is unbroken, utilizing a Gates original bulkhead 'pass through' design. Further, the cable has been adapted with a tough polyurethane jacket and internal water blocking materials.
Designed for RED TOUCH 7" LCD
with access to all 4 assignable keys.
(RED SKU 730-0007)
Water Blocked Cable
has a tough polyurethane jacket. A Gates original design.
Powered by Epic
No additional batteries are needed with the RED PRO External Monitor, keeping it small and light.
2-Year Warranty
Only Gates offers a 2-year renewable warranty on all housings.
Compatibility
- RED TOUCH 7" LCD (not included)
(RED SKU 730-0007)
Controls
- Assignable x 4
Dimensions
- 9.1"W x 8.1"H x 5.1"D
- 20.5cm W x 23cm H x 13cm D
Connections
- Gates Pass Through bulkhead connector
Power
- Via connection to EPIC, Scarlet or Dragon camera
Construction
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
- Marine grade cable with polyurethane jacket and water block
Weight
- Dry: 4.5 lbs / 2.0 kg
- In Water: ~-0.5 lbs / -.23 kg
Depth Rating
- 300 feet / 92 meters
Warranty
- 2-Years Renewable
SU&C Guides
- DEEP DRAGON Setup, Use and Care Guide (includes RT7 Info)
Replacement Cable Assemblies
- Pro Action / Pro Explore: 5000-94-141 BCP ASSY, RT7 MONITOR FOR PA / PX
- DEEP WEAPON / DEEP DRAGON: 5000-93-145 BCP ASSY, RT7 MONITOR FOR DW / DD
- Standard cable length 30-36 in / 76-91 cm. Custom length available.
