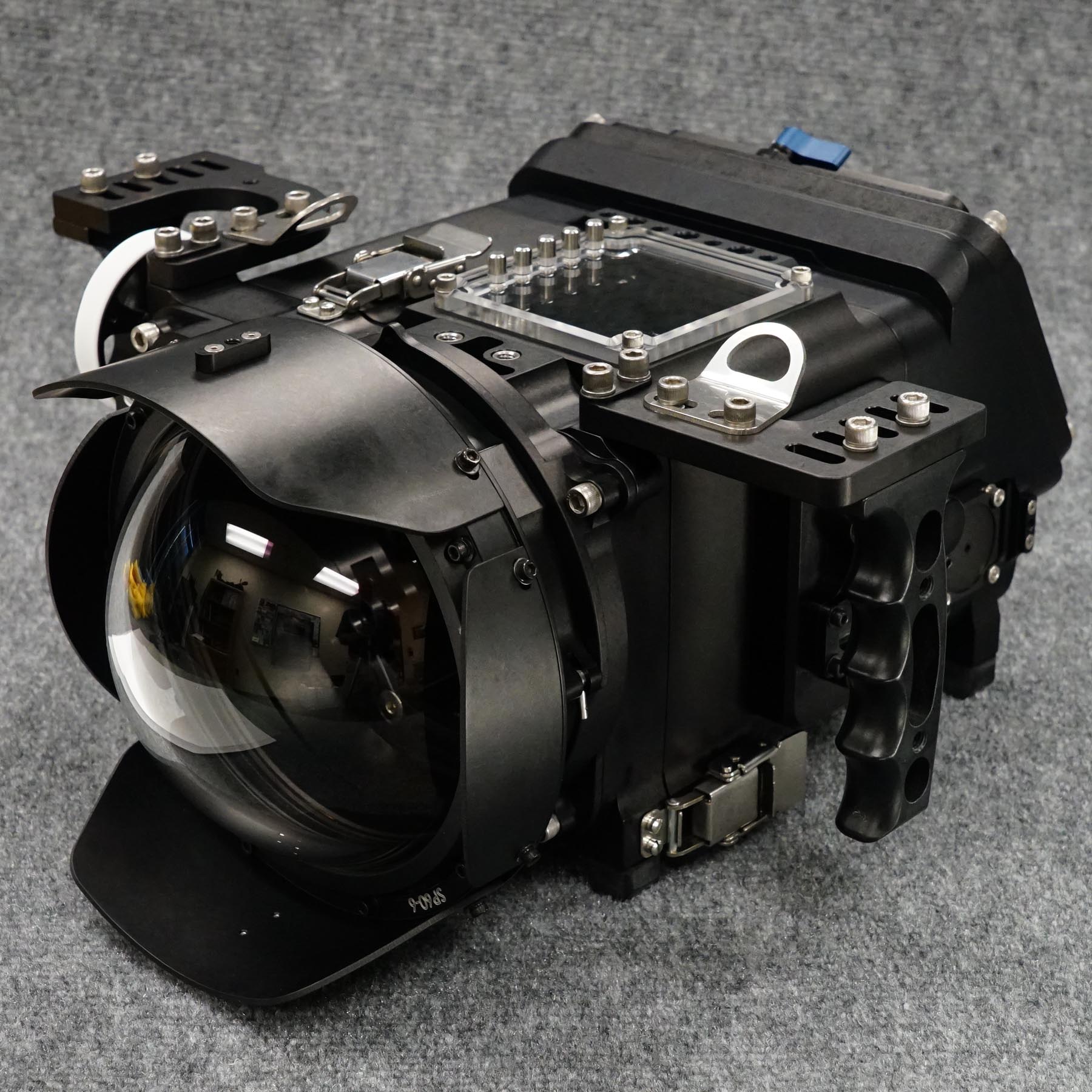

DEEP KOMODO

[Show thumbnails]

Results.  Reliability.  DEEP KOMODO.

DEEP KOMODO is everything you expect from GATES:   Simple, reliable, "bulletproof".   2 year warranty, legendary global support.  Seal Check peace of mind.   Gates plug-and-play Precision Port and Stackable Port Ring strategy.

And yet, barriers are broken with DEEP KOMODO.  At 25 lbs / 11 kg fully rigged, DK  is a backpack-ready, performance-to-size powerhouse.   Control?  The Gates Command Control module = full system authority, fully integrated, at your fingertips.  Iris, menu navigation, assignables.  Field update-able as KOMODO™ firmware evolves, too.

Optimized for diver operation, DEEP KOMODO is balanced / trim out of the box, yet fully adjustable to different lenses / configurations.  A vast range of mirrorless, DSLR, specialized, (Laowa macro probe) and compact PL (think Zeiss) glass are compatible with DEEP KOMODO's versatile Lens Gear Drive system -- a genuine innovation.

With DEEP KOMODO there's no 'nickel and diming' you with extra needed gear for an operational system.  Seal check, spare bits, tools -- it's all there.  Only Gates offers this level of commitment to your success, to your ROI.

When failure is not an option:  Don't take a chance....take a GATES!

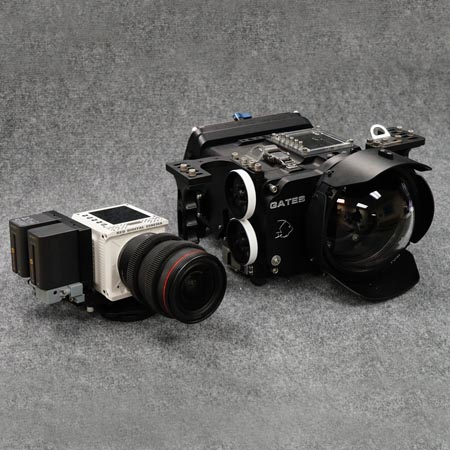

Compatible Cameras:  RED DIGITAL CINEMA™ KOMODO™

FIND-A-DEALER_left

Key Features

Complete COMMAND / CONTROL

Dedicated, direct connect camera control at your fingertips.  Iris knob, menu nav, and 4x presets in the Gates COMMAND / CONTROL module (which is field update-able as KOMODO™ firmware evolves).  Plus 12 ATOMOS LCD touch-screen controls.

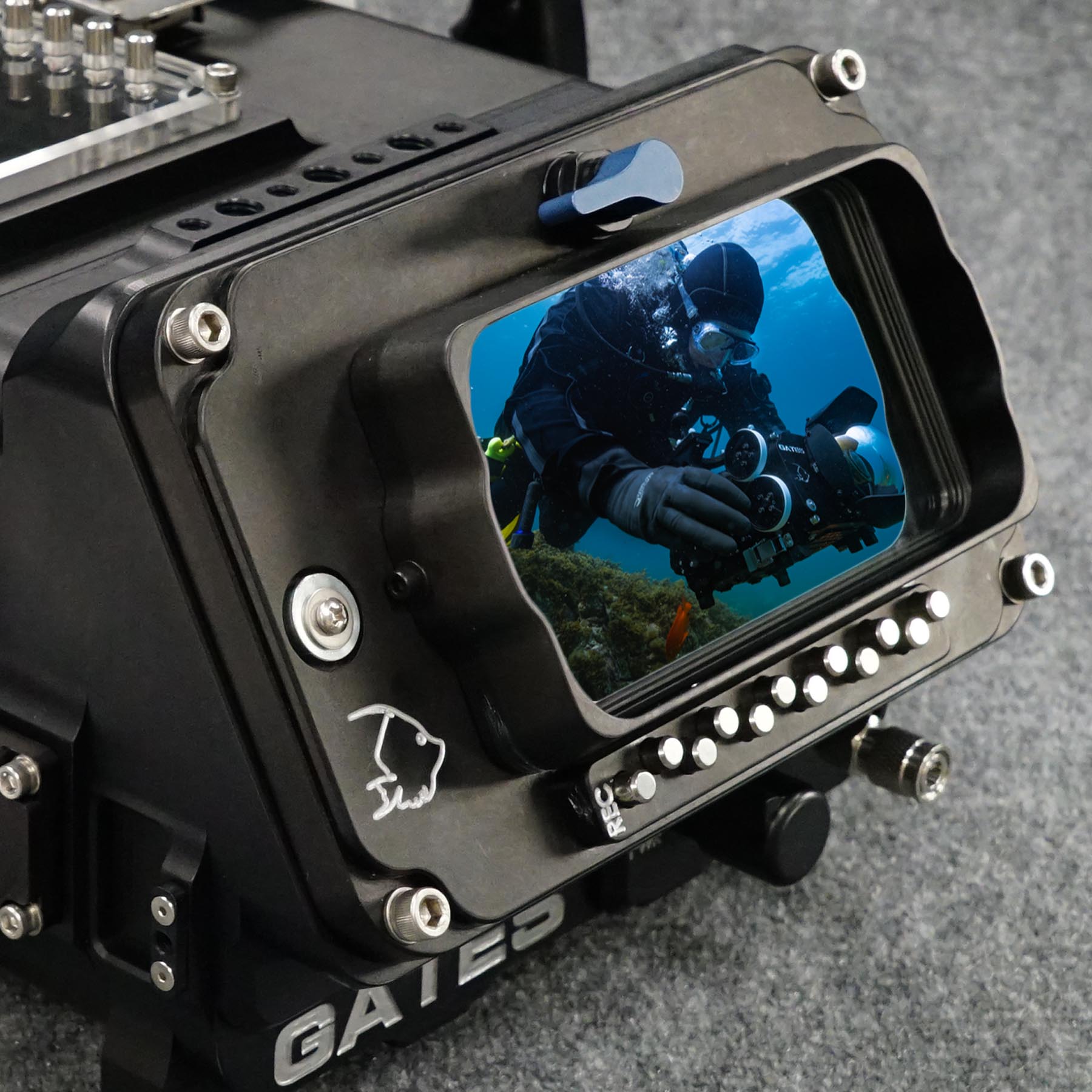

Fully Integrated Monitor

Comfortable 15° view angle and daylight-viewable, DEEP KOMODO offers several integrated LCD options: SmallHD Ultra 5 (3000 nits brightness!), SmallHD 503 Ultrabright, or SHINOBI SDI.

Clean, Uncomplicated, Reliable Design

Another Gates mantra:  simplicity = reliability: Convenience details are nice, but not at the expense of function, purpose, results.

Seal Check Lite

Don't rely on a binary red/green light to keep your precious camera safe.  Seal Check Lite's precision vacuum gauge puts you in charge of the go / no go decision.  When unexpected things happen (and they do happen), Seal Check Lite is a troubleshooter, locating leaks and rapid return to action.



Extensive Lens Support

Gates unique Lens Gear Drive system is versatile, adaptable to DSLR, mirrorless, compact cinema (e.g. Zeiss) and specialized (Laowa macro probe) glass.

Further, DK is evolved from Pro Action / Pro Explore to accommodate larger lenses, up to 108mm gears / 136 teeth.   Learn more....

It's Included

No buying piece-by-piece.  DEEP KOMODO includes Seal Check Lite,  spare kit, tool kit, Lens Gear Drives,  system cabling, carry handle and more.  Just add Port(s) and Port Ring(s) specific to your application to make a complete kit.

Backpack Ready

Setting the bar in performance to size, DEEP KOMODO weighs in at 25 lbs / 11kg fully rigged with camera, batteries, LCD, DSLR lens and SP60-6 AR coated glass Dome Port.   Ideal for the traveling underwater professional.

60 and 80 series Precision Ports™

DEEP KOMODO supports the entire Gates suite of 6, 8 and 10" dome and flat ports.  AR coated glass or acrylic / Perspex options.



2-year-warranty

2-Year Warranty.
Legendary factory direct support.

Gates is synonymous with reliability and support, and only Gates offers a 2-year, renewable warranty on all housings.

Underwater Titan Tube (UT2)

Surface and / or Underwater Command / Control of Astera Titan Tubes, the "the ultimate LED tube for filmmakers, TV studios and any creative person."
Learn more....

External Monitor Option

Really want a top-mounted monitor with full swivel / tilt capability?  You got it.  The Gates NVS External Monitor, which accepts the same ATOMOS SHINOBI SDI LCD used in DEEP KOMODO.

Surface Support

DEEP KOMODO would not be complete without consideration for surface tethers.  2X Universal bulkhead adapters utilize both Gates MultiConn and Pass-Through designs for SDI and data connections to the surface.





Specifications

Controls
  • Master System Power On/Off
  • 2x Direct Coupled Lens Gear Drives
  • Run / Stop (Switch activated, right thumb)
  • Gates Command / Control Module:
    • IRIS
    • Menu navigation (MENU  / SELECT /▲ / ▼ / ► / ◄)
    • 4x Presets / Assignables
  • ATOMOS LCD -  all lower screen focus / exposure touchscreen buttons
  • ATOMOS LCD - overlay toggle on / off
  • ATOMOS Power
Dimensions:

Click here for Dimensional Drawings

Construction
  • Machined Aluminum, Type III Hard Anodized finish
  • Stainless steel hardware
Depth Rating
  • 250 feet / 76 meters
Weight in Water
  • Fully Adjustable Buoyancy / Trim
Weight in Air
  • Variable depending on configuration
  • ~25 lbs / 11 kg with
Warranty
Camera Equipment Required
  • Cameras:
    • RED KOMODO™
  • Camera Accessories:
    • None
  • Media
    • CFAST Media compatible with KOMODO™
  • Camera prep / setup only (optional)
    • RED CONTROL iOS App
  • Lenses
    • DSLR (Canon EF / Nikon F), Mirrorless (Canon RF) and Compact Cinema Glass (0.8 MOD or 32 Pitch)
    • Laowa Macro Probe (with Gates MLA60 Macro Probe Lens Adapter)
    • Max Lens Envelope:
      • SPR60 Port Rings
        • Max lens overall OD:  5.6 in / 142mm
        • Max lens gear OD: 4.25 in / 108 mm / 136 Teeth
        • Min lens gear OD:  3.1 in / 79 mm / 100 Teeth
      • SPR80 or PR80 Port Rings
        • Max lens overall OD:  7.5 in / 190mm
        • Max / Min gear OD:  same as above.

External Monitor Options

A Gates External Monitor housing is optional with DEEP KOMODO.

[Show thumbnails]

EM5 ULTRA Underwater Monitor Housing

Compatible Housings:       ARRI ALEXA MINI / MINI LF     ALEXA 35    ARRI ALEXA     DEEP WEAPON - RAPTOR     FLEX4K

Gates EM5 ULTRA Underwater Monitor Housing is a tailored, glove-fit for the SmallHD ULTRA 5 LCD, with a powerful 3000 nit HD display, visible even in the harshest daylight.  The adjustable base can tilt / swivel to any position for the perfect viewing angle.  An SDI interface is simple, robust, and broadly compatible with a variety of Gates Housings including RED and ARRI.  Power is driven by the camera power source inside the main housing shell for long run time.  And the EM5 ULTRA can be either slightly negative buoyancy or perfectly neutral with included trim float -- no 'turtling'!

Of course, Gates EM5 ULTRA Underwater Monitor Housing comes with 'bulletproof' construction,  a 2 year renewable warranty‘ and legendary Gates customer support.   Reliable, durable, dependable – the Gates hallmark for over 50 years.

Key Features
Super Bright 3000 nit Widescreen HD Display

5" / 125 mm widescreen display is a brilliant 3000 nits HDR illumination.

Rugged, Water Blocked Cable

with a tough polyurethane jacket is "bulletproof".

F1 / F2 / F3 Controls

are programmable, and easily accessible next to the shaded LCD.

2 year warranty
2-Year Warranty

Only Gates offers a professional 2-year renewable warranty on all housings.

Gates warranty details

Tilt / Swivel base mount

Adjust EM5 ULTRA for the perfect viewing angle.  A true professional touch.

No 'Turtling'

Neutrally buoyant design means no fighting a rig that wants to flip over.

Specifications
Display
  • SmallHD ULTRA 5 Ultrabright LCD
  • Illumination: 3000 nits
  • Widescreen 5 .0 inch / 125 mm color LCD
  • 1920x1080 Resolution
Controls
  • F1 / F2 / F3 assignable
Dimensions
  • EM5 ULTRA Dimensional Drawing (to be released)
Input Format
  • SDI
Material
  • Machined Aluminum, Type III 'Hard' Anodized finish
  • Stainless steel hardware
Weight
  • Dry: 3.53 lbs / 1.6 kg (no LCD, base configuration)
  • In Water:  Neutral (w/included trim float)
Depth Rating
  • 200 feet / 61 meters
Warranty
  • 2-Years Renewable
Cable / Connectors
  • Marine-grade multi conductor cable
  • Gates Pass-Thru type or MultiConn bulkhead connector type
Power Source / Run Time
  • Powered by camera battery: run time variable depending on battery size.
EM5 ULTRA Compatibility & Replacement Cables
Mini/ Mini LF / ALEXA 35 / ALEXA / FLEX4K Housings
  • Gates EM5 ULTRA Small Pass-Thru type.  Specify 5000-94-319 BCP ASSY, EM5 ULTRA SM PASS THRU TYPE
  • Standard cable length (housing to monitor): : 24 in / 61 cm.  Custom lengths available.
  • Power Source:  Camera / Camera battery via D-Tap
DEEP WEAPON / DEEP RAPTOR Housing
  • Gates EM5 ULTRA Large Pass-Thru type.  Specify 5000-94-321 BCP ASSY, EM5 ULTRA LG PASS THRU TYPE
  • Standard cable length (housing to monitor): : 18in / 46 cm.  Custom lengths available.
  • Power Source:  Camera / Camera battery via D-Tap
Housings using Gates MultiConn (GMC) bulkhead connector system
  • Gates EM5 ULTRA GMC type.  Specify
    • 5000-94-342 GMC ASSY, EM5 ULTRA MON
    • 5000-94-300 GMC ASSY, BLKHD, EM503 MON (Same as EM503)
  • Standard cable length (housing to monitor): Approx 18in / 46 cm.  Custom lengths available.
  • Power Source:  Camera / Camera battery via D-Tap
Support
Resources





[Show thumbnails]

EM7 CINE Underwater Monitor Housing

Compatible Housings:       GATES IMMERSIVE HOUSING     DEEP WEAPON - RAPTOR
                                             ARRI ALEXA MINI / MINI LF     ALEXA 35    ARRI ALEXA   FLEX4K


Gates EM7 CINE Underwater Monitor Housing is a bespoke, glove-fit for the SmallHD CINE 7 LCD, offering a vivid 1800 nit 1900x1200 resolution display, visible even the bright daylight of shallow tropical waters.  As with all Gates External Monitors, its adjustable base can tilt / swivel to any position for the perfect viewing angle.  Simple, robust SDI interface that is broadly compatible with a variety of Gates Housings for RED, ARRI, and Sony.  Two power options are available:  2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from the main camera housing shell.  For the perfect trim, EM7 CINE can be either slightly negative or perfectly neutral buoyancy with included trim float -- no 'turtling'!

Of course, Gates EM7 CINE Underwater Monitor Housing comes with 'bulletproof' construction,  a 2 year renewable warranty‘ and legendary Gates customer support.   Reliable, durable, dependable – the Gates hallmark for over 50 years.

Key Features
Easy-to-see Daylight Bright 1800 nit Display

SmallHD CINE 7 LCD is a big 7" / 178 mm 1920 x 1200 display with brilliant HDR illumination.

Rugged, Water Blocked Cable

with a tough polyurethane jacket is "bulletproof".

Dual Power Options

Power can be either 2x Sony L-Series batteries (mounted to CINE 7 LCD) or from the main housing system.

2 year warranty
2-Year Warranty

Only Gates offers a professional 2-year renewable warranty on all housings.

Gates warranty details

Tilt / Swivel base mount

Adjust EM7 CINE for the perfect viewing angle.  A true professional touch.

No 'Turtling'

Neutrally buoyant design means no fighting a rig that wants to flip over.

Specifications
Display
  • SmallHD CIN 7 LCD
  • Illumination: 1800 nits
  • Widescreen 7 .0 inch / 178 mm color LCD
  • 1920x1200 Resolution
Controls
  • Power On / Off
Dimensions
Input Format
  • SDI
Material
  • Machined Aluminum, Type III 'Hard' Anodized finish
  • Stainless steel hardware
Weight
  • Dry: 6.1 lbs / 2.8 kg (no LCD, base configuration)
  • In Water:  Neutral (w/included trim float)
Depth Rating
  • 200 feet / 61 meters
Warranty
  • 2-Years Renewable
Cable / Connectors
  • Marine-grade multi conductor cable
  • Gates Pass-Thru type or MultiConn bulkhead connector type
Power Source / Run Time
  • Powered by either
    • Camera battery; or
    • 2x Sony L-Series  NP-F970 or equivalent.  Batteries mounted to LCD.
  • Run time variable depending on battery size.
EM7 CINE Compatibility & Replacement Cables
Gates Immersive Housing
  • Gates EM7 CINE GMC Type.
  • Power Source:
    • Camera battery via D-Tap
Mini/ Mini LF / ALEXA 35 / ALEXA / FLEX4K Housings
  • Gates EM7 CINE Small Pass-Thru type.  Specify 5000-94-330 BCP ASSY, EM7 CINE SM PASS THRU TYPE
  • Standard cable length (housing to monitor) : 18 in / 46 cm.  Custom lengths available.
  • Power Source:
    • Camera / Camera battery via D-Tap; or
    • 2x L-Series batteries NP-F970 or equivalent
DEEP WEAPON / DEEP RAPTOR Housing
  • Gates EM7 CINE Large Pass-Thru type.  Specify 5000-94-331 BCP ASSY, EM7 CINE LG PASS THRU TYPE
  • Standard cable length (housing to monitor): 24in / 61 cm.  Custom lengths available.
  • Power Source:
    • Camera / Camera battery via D-Tap; or
    • 2x L-Series batteries NP-F970 or equivalent
Housings using Gates MultiConn (GMC) bulkhead connector system
  • Gates EM7 CINE GMC type.  Specify
    • 5000-94-332 GMC ASSY, EM7 CINE MON
    • 5000-94-300 GMC ASSY, BLKHD, EM503 MON (Same as EM503)
  • Standard cable length (housing to monitor): Approx 18in / 46 cm.  Custom lengths available.
  • Power Source:
    • Camera / Camera battery via D-Tap; or
    • 2x L-Series batteries NP-F970 or equivalent
Support
Resources





[Show thumbnails]

EM503 Underwater Monitor Housing

Compatible Housings:       ARRI ALEXA MINI / MINI LF    ARRI ALEXA     DEEP WEAPON - RAPTOR  FLEX4K

Tailored to the SmallHD 503 Ultrabright LCD, the Gates EM503 Underwater Monitor Housing is a brilliant 2200 nits, visible even in harsh daylight.   Dedicated Power / F1 / F2 buttons are readily accessible next to the shaded 5" display, and the adjustable base can tilt / swivel to any position for the perfect viewing angle.  SDI means simple, robust interface and broadly compatible with a variety of Gates Housings.  Two power options are available:  2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from inside the main housing shell.  Both versions can be neutrally buoyant with included trim floats -- no 'turtling'!

Of course, Gates EM503 Underwater Monitor Housing comes with 'bulletproof' construction,  a 2 year renewable warranty‘ and legendary Gates customer support.   Reliable, durable, dependable – the Gates hallmark for over 50 years.

Key Features
Super Bright, Widescreen Display

5" / 125 mm widescreen display is a brilliant 2200 nits HDR illumination.

Rugged, Water Blocked Cable

with a tough polyurethane jacket is "bulletproof".

Power / F1 / F2 Controls

are easibly accessible next to the shaded LCD.

2 year warranty
2-Year Warranty

Only Gates offers a professional 2-year renewable warranty on all housings.

Gates warranty details

Tilt / Swivel base mount

adjust EM503 for the perfect viewing angle.  A true professional touch.

No 'Turtling'

Neutrally buoyant design means no fighting a rig that wants to flip over.

Specifications
Display
Controls
  • Power
  • F1 and F2 assignable
Dimensions
Input Format
  • SDI
Material
  • Machined Aluminum, Type III 'Hard' Anodized finish
  • Stainless steel hardware
Weight
  • Dry: 3.7 lbs / 1.7 kg (no LCD, base configuraiton)
  • In Water:  Neutral (w/included trim float)
Depth Rating
  • 200 feet / 61 meters
Warranty
  • 2-Years Renewable
Cable / Connectors
  • Marine-grade multi conductor cable
  • Gates Pass Through type or MultiConn type
Power Source / Run Time
  • Powered by camera battery: run time variable depending on battery size.
  • Optional: Powered by 2x SONY NP-F970 batteries or equivalent size (max 2.25 x 2.88 x 1.5" / 57 x 73 x 38 mm)
    Run time more than 4 hours.
EM503 Compatibility & Replacement Cables
Mini/ Mini LF / ALEXA / FLEX4K Housings
  • Gates EM503 Small Pass-Thru type.  Specify 5000-94-297 BCP ASSY, EM503 SM PASS THRU TYPE
  • Standard cable length (housing to monitor): : 12in / 30 cm.  Custom lengths available.
  • Power Source(s)
    • Camera / Camera battery via D-Tap (Standard) or
    • LCD battery 2X SONY NP-F970 or equivalent max size (optional).
DEEP WEAPON / DEEP RAPTOR Housing
  • Gates EM503 Large Pass-Thru type.  Specify 5000-94-296 BCP ASSY, EM503 LG PASS THRU TYPE
  • Standard cable length (housing to monitor): : 17in / 43 cm.  Custom lengths available.
  • Power Source(s)
    • Camera / Camera battery via D-Tap (Standard) or
    • LCD battery 2X SONY NP-F970 or equivalent max size (optional).
Housings using Gates MultiConn (GMC) bulkhead connector system
  • Gates EM503 GMC type.  Specify 5000-94-299 GMC ASSY, EM503 MON and 5000-94-300 GMC ASSY, BLKHD, EM503
  • Standard cable length (housing to monitor): 17in / 43cm
  • Power Source(s)
    • Camera / Camera battery via D-Tap (Standard) or
    • LCD battery 2X SONY NP-F970 or equivalent max size (optional).
  •
Support
Resources



[Show thumbnails]

NVS Underwater Monitor Housing

Compatible Housings:       ARRI ALEXA MINI / MINI LF    ARRI ALEXA   DEEP WEAPON-RAPTOR   SONY Z90

1000 nits bright LCD.  4K/60P recording in ProRes RAW.   Extensive focus / exposure tools.  All in a compact, neutrally buoyant package. That's the Gates NVS External Monitor Housing.

Designed specifically for the Atomos NINJA V, SHINOBI and SHINOBI SDI, Gates NVS Underwater Monitor Housing accommodates all three with field-configurable changes.   Touch screen buttons are readily accessible below the shaded 5" display, and the mounting base will tilt / swivel to any position for the perfect viewing angle.  Battery powered or driven by the camera v-lock (SHINOBI SDI only),  NVS preserves a streamlined, low profile to the housing for minimal water resistance.

Of course, Gates NVS Underwater Monitor Housing comes with 'bulletproof' construction,  a 2 year renewable warranty‘ and legendary Gates customer support.   Reliable, durable, dependable – the Gates hallmark for over 50 years.

Key Features
Compact Size, Widescreen Display

5" / 125 mm widescreen display is a bright 1000 nits.

ATOMOS NINJA V, SHINOBI and SHINOBI SDI LCD's

are all supported via field-configurable changes.  Contact us for details.

Touch screen controls

are easibly accessible below the shaded LCD.

2 year warranty
2-Year Warranty

Only Gates offers a professional 2-year renewable warranty on all housings.

Gates warranty details

Tilt / Swivel base mount

adjust NVS for the perfect viewing angle.  A true professional touch.

No 'Turtling'

Neutrally buoyant design means no fighting a rig that wants to flip over.

Specifications
Display
Controls
  • Power
  • Touch Screen x12
Dimensions
Input Formats
Material
  • Machined Aluminum, Type III 'Hard' Anodized finish
  • Stainless steel hardware
Weight
  • Dry: 3.7lbs / 1.7 kg   4.8lbs / 2.2kg with LCD & Battery
  • In Water:  Slightly positive to slightly negative (battery dependent)
Depth Rating
  • 200 feet / 61 meters
Warranty
  • 2-Years Renewable
Cable / Connections
  • Marine-grade multi conductor cable
  • Gates Pass Through connectors
Power / Run Time
  • Variable.  Consult ATOMOS specifications for details.
NVS Compatibility & Replacement Cables
Mini/ Mini LF / ALEXA / FLEX4K Housings
  • LCD:  ATOMOS SHINOBI SDI
  • Power Source(s)
    • LCD battery (Sony NP-F970) or
    • Camera / Camera battery via D-Tap
  • Gates NVS External Monitor SDI Cable:  specify 5000-94-186 BCP ASSY, SDI+PWR SML PENTR NVS MON
    Standard cable length (Housing to Monitor): 24-28 in / 61-71 cm.  Custom length available.
Mini/ Mini LF / ALEXA / FLEX4K Housings
  • LCD: ATOMOS SHINOBI SDI
  • Power Source
    • LCD battery (Sony NP-F970)
  • Gates NVS External Monitor SDI Cable:  specify 5000-94-190 BCP ASSY, SDI SML PENTR NVS MON
    Standard cable length (Housing to Monitor): 16-18 in / 41-46 cm.  Custom length available.
Z90 Housing (for Sony PXW-Z90 Camera)
  • LCD: ATOMOS SHINOBI SDI
  • Power Source
    • LCD battery (Sony NP-F970)
  • Gates NVS External Monitor SDI Cable:  specify 5000-94-219 BCP ASSY, SDI BLKHD ADPTR NVS MON
    Standard cable length (Housing to Monitor): 25-28 in / 63-71 cm.  Custom length available.
DEEP WEAPON Housing
  • LCD: ATOMOS SHINOBI SDI
  • Power Source(s)
    • LCD battery (Sony NP-F970) or
    • Camera / Camera battery via D-Tap
  • Gates NVS External Monitor SDI Cable:  specify 5000-94—218   BCP ASSY, SDI+PWR LG PNTR NVS MON
    Standard cable length (Housing to Monitor): 25-28 in / 63-71 cm.  Custom length available.
AX700 / Z90 Housing (for Sony FDR-AX700 or PXW-Z90 Camera)
  • LCD:  ATOMOS NINJA V or SHINOBI
  • Power Source
    • LCD battery (Sony NP-F970)
  • Gates NVS External Monitor HDMI Cable:  specify  5000-94-182 BCP ASSY, HDMI BLKHD ADPTR NVS MON
    Standard cable length (Housing to Monitor): 30-36 in / 76-91 cm.  Custom length available.
Support
Resources

Port Options

The best camera in the world can't make up for poor optics. Poor optical design and materials introduce ‘image killers’ – distortions, aberrations, degraded resolution, or vignetting.  Gates family of Precision Ports are sharp and clear: the finest optics for the finest underwater images.  No image killers. Professional to amateur, super wide to macro, Gates Precision Ports suit a wide range of needs, conditions and experience. Of course all ports are backed by our legendary customer support and the same standard of excellence expected of all Gates products.

60-Series Ports

FP80

FP60 Flat Port

A simple, versatile port option for macro work or lenses that don't perform well with a dome port.

Key Features
Versatile Port
Versatile

The FP80 supports a wide range of lenses for medium to macro imaging.

FP80
Acrylic (Perspex) Element

a practical material for field use, minor scratches can be polished out.

FP80 Shades
Compact Size

Fits perfectly with the Pro Action sleek profile.

FP80 Replaceable Element
Field Replaceable

The FP80 element is user-changeable in the field.

Specifications
Material
  • Optical grade Acrylic / Perspex (standard)
Element Diameter / Clear Aperture:
  • 5.6in / 142 mm Ø
Depth Rating
  • 150 ft / 45m
Optical Notes
  • Flat ports reduce Field of View (FOV) 20% underwater.
SP80 6Wx300dpi

SP60-6 Dome Port

The SP60-6  is a 6in / 152 mm spherical dome port that preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging.  Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable.

Key Features
Versatile Port
Versatile

For medium to wide and fisheye imaging, the SP60-6 supports a wide variety of lenses

SP80 6Wx300dpi
AR Coated Glass

The SP60-6 is available with either Acrylic / Perspex dome or BK7 Anti-Reflective (AR) coated glass domes.

SP80 Replaceable Dome
Field Serviceable

Field Serviceable and replaceable dome (acrylic / Perspex only)

Specifications
Material Options
  • Acrylic / Perspex
  • Anti-Reflective (AR) coated BK7 glass
Element Diameter / Clear Aperture
  • 5.6in / 142 mm Ø
Dome Spherical Diameter
  • 6 in / 15mm
Depth Rating
  • 150 ft/ 45 m

80-Series Ports Compatible

FP80

FP80 Flat Port

Due to its larger front element, the FP80 supports a variety of medium to macro lenses – including external zooms. A simple, versatile port option.  Both Acrylic (Perspex) and Glass versions available.

Key Features
Versatile Port
Versatile

The FP80 supports a wide range of lenses for medium to macro imaging.

FP80
AR Coated Glass

BK7 glass element with Anti Reflective (AR) coating is optional.

FP80 Shades
Shade

Shade choices include W075 (standard) and Macro (optional)

FP80 Replaceable Element
Field Replaceable

The FP80 element is user-changeable in the field.

Specifications
Material
  • Optical grade Acrylic / Perspex (standard)
  • Anti-reflective (AR) coated BK7 glass (optional)
Element Diameter / Clear Aperture:
  • 7.4in / 189mm
Shades
  • W075 (standard)
  • Macro (optional)
Depth Rating
  • 450ft / 137m
Optical Notes
  • Flat ports reduce Field of View (FOV) 20% underwater.
SP80 6Wx300dpi

SP80-8 Dome Port

The SP80-8 is an 8in / 203mm spherical dome port that preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging.  Medium to macro, too, when paired with compatible macro zoom lenses.  Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable.

Key Features
Versatile Port
Versatile

For medium to wide and fisheye imaging, the SP80-8 supports a wide variety of lenses

SP80 6Wx300dpi
AR Coated Glass

The SP80-8 is available with either Acrylic / Perspex dome or BK7 Anti-Reflective (AR) coated glass domes.

SP80 Replaceable Dome
Field Serviceable

Field Serviceable and replaceable dome (acrylic / Perspex only)

Specifications
Material Options
  • Acrylic / Perspex
  • Anti-Reflective (AR) coated BK7 glass
Element Diameter / Clear Aperture
  • 7.5in / 190mm
Dome Spherical Diameter
  • 8in / 203mm
Depth Rating
  • 450ft / 137m





SP80-10 Dome Port

SP80-10 Dome Port

The SP80-10 is a 10in / 254mm spherical dome port that, like it's smaller SP80-8 sibling preserves field of view (FOV) underwater for wide to fisheye imaging.  The SP80-10 however, exhibits superior compatibility with rectilinear lenses, mitigating the soft corners classically found with dome ports in general.  This particularly beneficial with certain cinema PL mount glass like Arri Master Primes and Ultra Primes.

The SP80-10 is available in Anti-Reflective (AR) coated glass only.

Key Features
Versatile Port
Superior Rectilinear Compatibility

For medium to wide and fisheye imaging, the SP80-10 excels at rectilniear imaging, particularly with PL mount cinema lenses.

SP80 6Wx300dpi
AR Coated Glass

The SP80-10 is made of optically pure BK7 Anti-Reflective (AR) coated glass domes.

SP80 Replaceable Dome
Versatile

The SP80-10 is compatible with hundreds of lenses.  See Gates Compatibility Reference.

Specifications
Material Options
  • Anti-Reflective (AR) coated BK7 glass
Element Diameter / Clear Aperture
  • 7.5in / 190mm
Dome Spherical Diameter
  • 10in / 254mm
Depth Rating
  • 450ft / 137m



Specialized Port / Adapters

MLA60 Macro Probe Lens Adapter

In collaboration with Venus Optics, the Gates MLA60 Probe Lens Adapter allows full submersion of the Laowa 24mm Macro Probe lens for truly unique macro imaging perspective.   A long, tubular barrel with tiny lens tip can extend into the smallest of spaces, yet provide a remarkable 84° FOV, 2:1 magnification, and infinity focus.  Further, the Laowa 24mm Macro covers full frame *and* larger sensors like RED Monstro from a standard Canon or Nikon mount.

Learn more about the MLA60 Macro Probe Lens Adapter

Key Features
Unique 'Goby-Eye' Perspective

The Laowa 24mm Macro Probe lens offer remarkable 2:1 Magnification, wide 84° at the tiny lens tip and infinity focus.

Full Housing Integration

The MLA60 directly adapts iris / focus functions to the housing controls.  Optional LED ring light power cable with on/off switching.

[Show thumbnails]
7in / 178mm probe extension

Collaboration with Venus Optics allows for full submersion of the 24mm Macro Probe while retaining generous barrel extension.

Specifications
Required Components
  • Laowa 24mm Macro Probe lens
  • Full set of SPR60 Stackable Port Rings
MLA60 Construction
  • Anodized Aluminum
  • Stainless Steel
  • ABS Polymer gears (3D Printed)
Weight, Packing
  • 1.3 lbs / 0.6 kg
Depth Rating
  • 100 feet / 30 m
Warranty



MLA60 / Laowa Macro Probe Lens Test Footage

MLA60 / Laowa 24mm Macro Probe test footage courtesy of Jeff Hester / Diatom Studios

Laowa Test Footage from Diatom Studios on Vimeo.

Custom Ports

custom ports art

Custom Port

Gates Precision Ports extend to custom designs for specific applications like underwater UV imaging or Corrective Optics (CO) that adapt a specific lens for underwater imaging, and eliminating distortions / aberrations.  Contact Gates to discuss your particular application.

Included Accessories

Seal Check Lite

The Gates Seal Check Lite is included with every DEEP KOMODO Housing, and assures housing integrity before entering the water.  A mere 11oz / 320g it packs easy and travels lightly.

Learn more....

Carry Lanyard 3Wx450dpi

Carry Handle

Easy grip, transport and handling.

Spare Kit

Spare Kit / Tool Kit

All the items needed to setup and maintain DEEP KOMODO Housing

2-year-warranty

2-Year Warranty.
Legendary factory direct support.

Like any other valuable accessory, Gates 2-year renewable warranty and unparalleled support are part of the DEEP KOMODO kit.

Optional Accessories

Monitor Shades and Stackable Extensions

Block out unwanted light  with 2in / 5cm Shade and / or stacking 1.6in /  4cm Shade Extensions.

HD-SDI / UHD-SDI Surface Feed

Need topside DP monitoring? High speed digital SDI video feed is available.  50 to over 300 feed, the link includes gold contact connectors and certified coaxial cable.

External Monitor

Really want a top-mounted monitor with full swivel / tilt capability?  You got it.  The Gates NVS External Monitor, which accepts the same ATOMOS SHINOBI SDI LCD used in DEEP KOMODO.

Surface Camera Control -- Antenna Extender

Gates Antenna Extender Cable provides topside control of DEEP KOMODO over Wi-Fi using RED CONTROL app.  75ft / 23m max length.
(Gates PN 5000-94-361)

Easy Grip Lens Control

A big, fat grippy knob extension makes fine lens control easy, especially with thick dive gloves.

Body Cap

Need added protection for travel or harsh setup environments?  This body cap bayonets into place just like SPR's and Ports.

Customizations

Customization

Special modifications are routine. You really can have it ‘just the way you like’.

Port Rings

Stackable Port Rings (SPR's)

Using lengthy lenses?  SPR's come in 0.6 / 1.0 / 1.5 / 2.0 / 4.0 sizes for optimal port positioning.

Support

Setup, Use and Care Guides
Port and Lens References
Surface Command / Control
GCC FIRMWARE UPDATE -- DEEP KOMODO
General Reference







DEEP KOMODO Supported Equipment



CAMERA

RED DIGITAL CINEMA™ KOMODO™

Batteries (x2)

  • Sony NP-F970
  • HEDBOX RP-NPF970
  • Hawk-Woods DV-F980
  • Hawk-Woods DV-F990.  Note: will make DEEP KOMODO slightly more negatively buoyant.
  • Equivalent L-Series battery of max dimensions:
    • 3.4H x 1.5W x 2.19D in (max depth)
    • 59H x 38.1W x 55D mm (max depth)

LCD Display

DEEP KOMODO Integrated LCD options:

SmallHD Ultra 5
ATOMOS SHINOBI SDI + ATOMOS Battery Eliminator
SmallHD 503 Ultrabright

Lenses

  • DSLR (Canon EF / Nikon F), Mirrorless (Canon RF) and Compact Cinema Glass (0.8 MOD or 32 Pitch)
  • Laowa Macro Probe (with Gates MLA60 Macro Probe Lens Adapter)
  • Max Lens Envelope:
    • SPR60 Port Rings
      • Max lens overall OD:  5.6 in / 142mm
      • Max lens gear OD: 4.25 in / 108 mm / 136 Teeth
      • Min lens gear OD:  3.1 in / 79 mm / 100 Teeth
    • SPR80 or PR80 Port Rings
      • Max lens overall OD:  7.5 in / 190mm
      • Max / Min gear OD:  same as above.
