Durable. Dependable. Upgradable. DEEP KOMODO X.

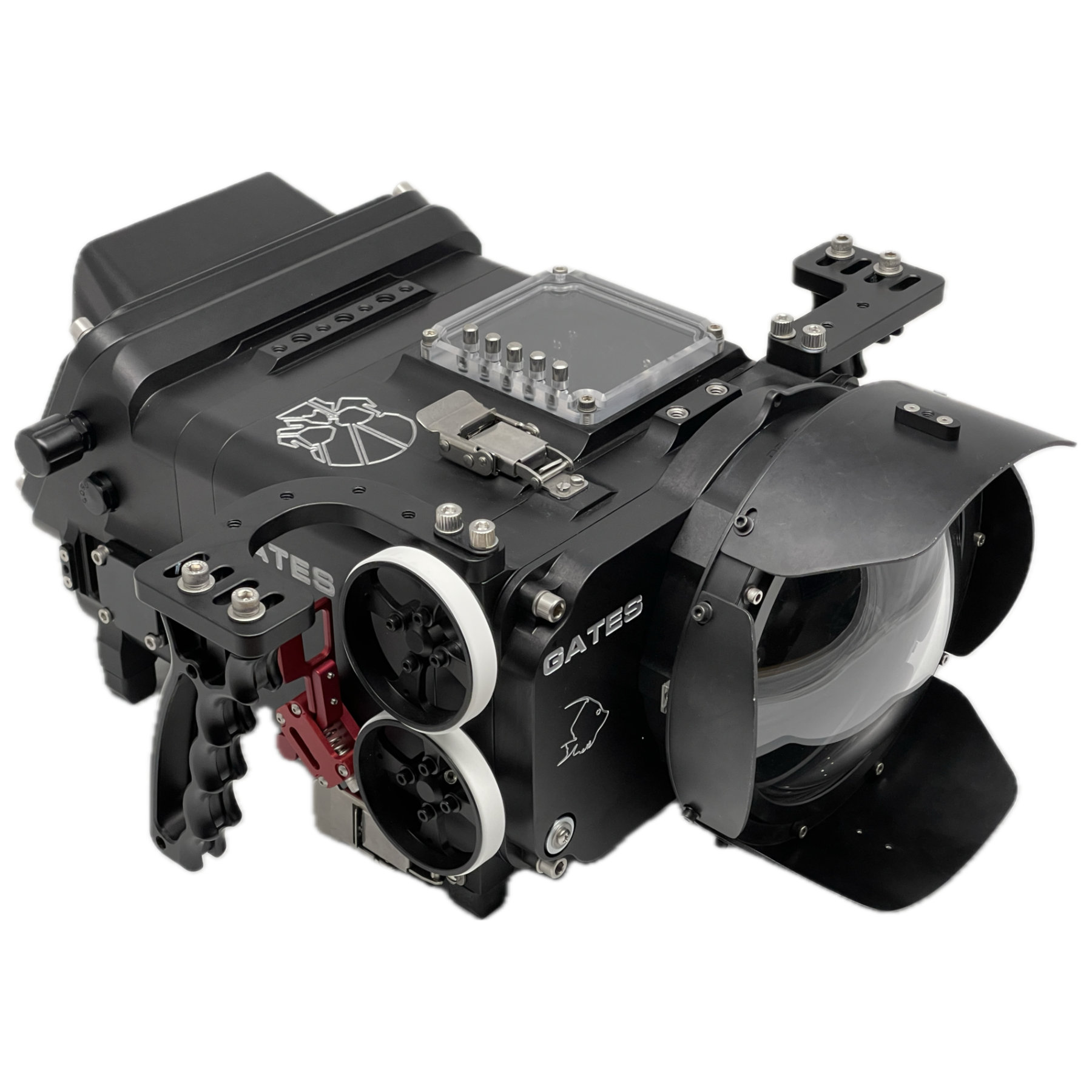

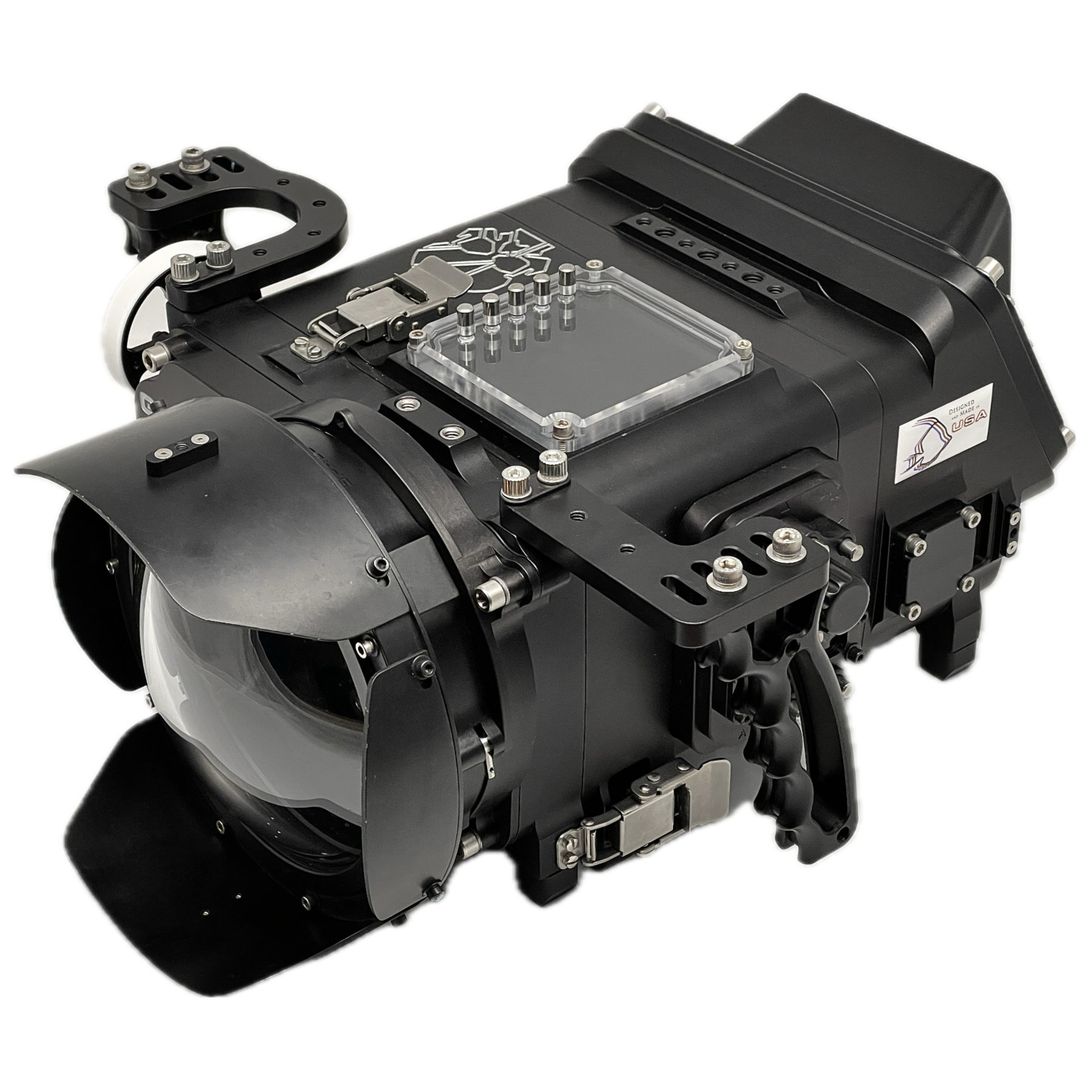

Gates DEEP KOMODO-X Housing is the evolution of the robust, popular DEEP KOMODO underwater platform. Designed precisely for RED KOMODO-X camera, DK-X achieves a remarkable 6K in 80fps /4K in 120 fps, improved shadow colors, and global shutter capabilities.
Compact and travel-ready, DK-X is a performance-to-size workhorse, optimized for diver operation. DK-X Housing includes mechanical lens control, full camera menu access, and Gates Command Control (GCC) module which = fast access authority at your fingertips. GCC is flexible, too, with a long list of user-changeable functions: iris, ISO, shutter, focus / exposure tools, and more. Further, GCC is update-able as KOMODO-X camera firmware evolves.
Topside DP control? Absolutely. DK-X is provisioned for surface tether cables utilizing Gates proprietary MultiConn bulkhead connector system to provide SDI video feed and complete camera authority via RED CONTROL PRO App.
DK-X is also upgradeable from DEEP KOMODO Housing, not only protecting your ROI but supporting two cameras in one housing. And DK-X is everything you expect from GATES: Simple, reliable, "bulletproof". 2 year warranty, legendary global support. Seal Check peace of mind. Adjustable buoyancy. Gates plug-and-play Precision Port and Stackable Port Ring strategy. A vast range of supported glass via Gates versatile Lens Gear Drive system: mirrorless, DSLR, specialized, (Laowa macro probe) and compact PL (think Zeiss). #realinnovation.
When failure is not an option: Don't take a chance....take a GATES!
Key Features
Complete COMMAND / CONTROL
Dedicated, direct connect camera control at your fingertips. Iris knob + 10 fully assignable buttons to a wide variety of commands like iris, ISO, shutter and focus / exposure tools. GCC is also user update-able as KOMODO-X camera firmware evolves.
Fully Integrated Monitor
Comfortable 15° view angle and daylight-viewable, DK-X offers several integrated LCD options: SmallHD Ultra 5 (3000 nits brightness!), SmallHD 503 Ultrabright, or Atomos Shinobi SDI.

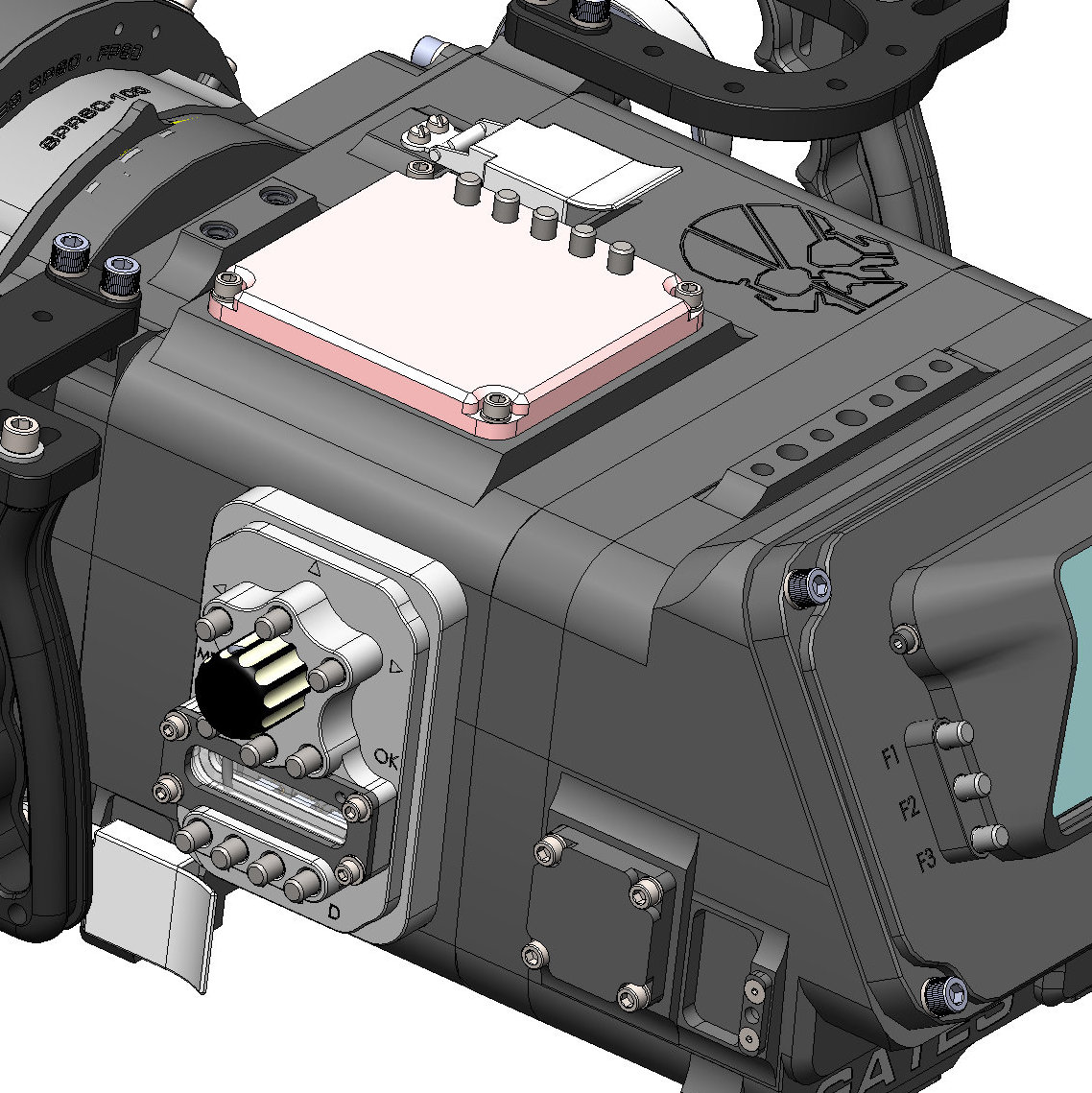

Clean, Uncomplicated, Reliable Design
A Gates mantra: simplicity = reliability: Convenience details are nice, but not at the expense of function, purpose, results.
Seal Check Lite
Don't rely on a binary red/green light to keep your precious camera safe. Seal Check Lite's precision vacuum gauge puts you in charge of the go / no go decision. When unexpected things happen (and they do happen), Seal Check Lite is a troubleshooter, locating leaks and rapid return to action.
Extensive Lens Support
Gates unique Lens Gear Drive system is versatile, adaptable to DSLR, mirrorless, compact cinema (e.g. Zeiss) and specialized (e.g. Laowa Periprobe) glass. Learn more....
It's Included
No buying piece-by-piece. DEEP KOMODO includes Seal Check Lite, spare kit, tool kit, Lens Gear Drives, system cabling, carry handle and more. Just add Port(s) and Port Ring(s) specific to your application to make a complete kit.
Backpack Ready
Setting the bar in performance to size, DK-X weighs in at ~25 lbs / 11.4 kg fully rigged with camera, battery, LCD, lens and SP60-6 AR coated glass Dome Port. Ideal for the traveling underwater professional.
60 and 80 series Precision Ports™
DEEP KOMODO X supports the entire Gates suite of 6, 8 and 10" dome and flat ports. AR coated glass or acrylic / Perspex options.
2-Year Warranty.
Legendary factory direct support.
Gates is synonymous with reliability and support, and only Gates offers a 2-year, renewable warranty on all housings.
Surface Control.
Of course DEEP KOMODO-X provisions for surface tethers. Two universal bulkhead adapters utilize both Gates MultiConn and Pass-Through designs for SDI video feed, ethernet camera control using RED CONTROL PRO App, or an Antenna Extender to do the same over Wifi.
External Monitor Option
Really want a top-mounted monitor with full swivel / tilt capability? You got it. DKX offers several External Monitor options.
Specifications
Controls
- Master System Power On/Off
- 2x Direct Coupled Lens Gear Drives
- Run / Stop (Switch activated, right thumb)
- Gates GCC (Command / Control Module)
- LCD Power On/Off
Dimensions:
- Click here for DEEP KOMODO-X Dimensional Drawing
Construction
- Machined Aluminum, Type III Hard Anodized finish
- Stainless steel hardware
Depth Rating
- 250 feet / 76 meters
Weight in Water
- Adjustable Buoyancy / Trim
Weight in Air
- Variable depending on system setup
- ~20 lbs / 9 kg in empty transport configuration
- ~25.7 lbs / 11.7 kg with camera, 98 Whr battery, DSLR lens, Ultra 5 LCD
Warranty
- 2 Years Renewable. Gates Warranty Details
Camera Equipment Required
Optional External Monitors
DEEP KOMODO-X features an integrated LCD monitor. A Gates External Monitor housing is optional.
EM5 ULTRA Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ALEXA 35 ARRI ALEXA DEEP WEAPON - RAPTOR FLEX4K
Gates EM5 ULTRA Underwater Monitor Housing is a tailored, glove-fit for the SmallHD ULTRA 5 LCD, with a powerful 3000 nit HD display, visible even in the harshest daylight. The adjustable base can tilt / swivel to any position for the perfect viewing angle. An SDI interface is simple, robust, and broadly compatible with a variety of Gates Housings including RED and ARRI. Power is driven by the camera power source inside the main housing shell for long run time. And the EM5 ULTRA can be either slightly negative buoyancy or perfectly neutral with included trim float -- no 'turtling'!
Of course, Gates EM5 ULTRA Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.
Super Bright 3000 nit Widescreen HD Display
5" / 125 mm widescreen display is a brilliant 3000 nits HDR illumination.
Rugged, Water Blocked Cable
with a tough polyurethane jacket is "bulletproof".
F1 / F2 / F3 Controls
are programmable, and easily accessible next to the shaded LCD.
2-Year Warranty
Only Gates offers a professional 2-year renewable warranty on all housings.
Tilt / Swivel base mount
Adjust EM5 ULTRA for the perfect viewing angle. A true professional touch.
No 'Turtling'
Neutrally buoyant design means no fighting a rig that wants to flip over.
Display

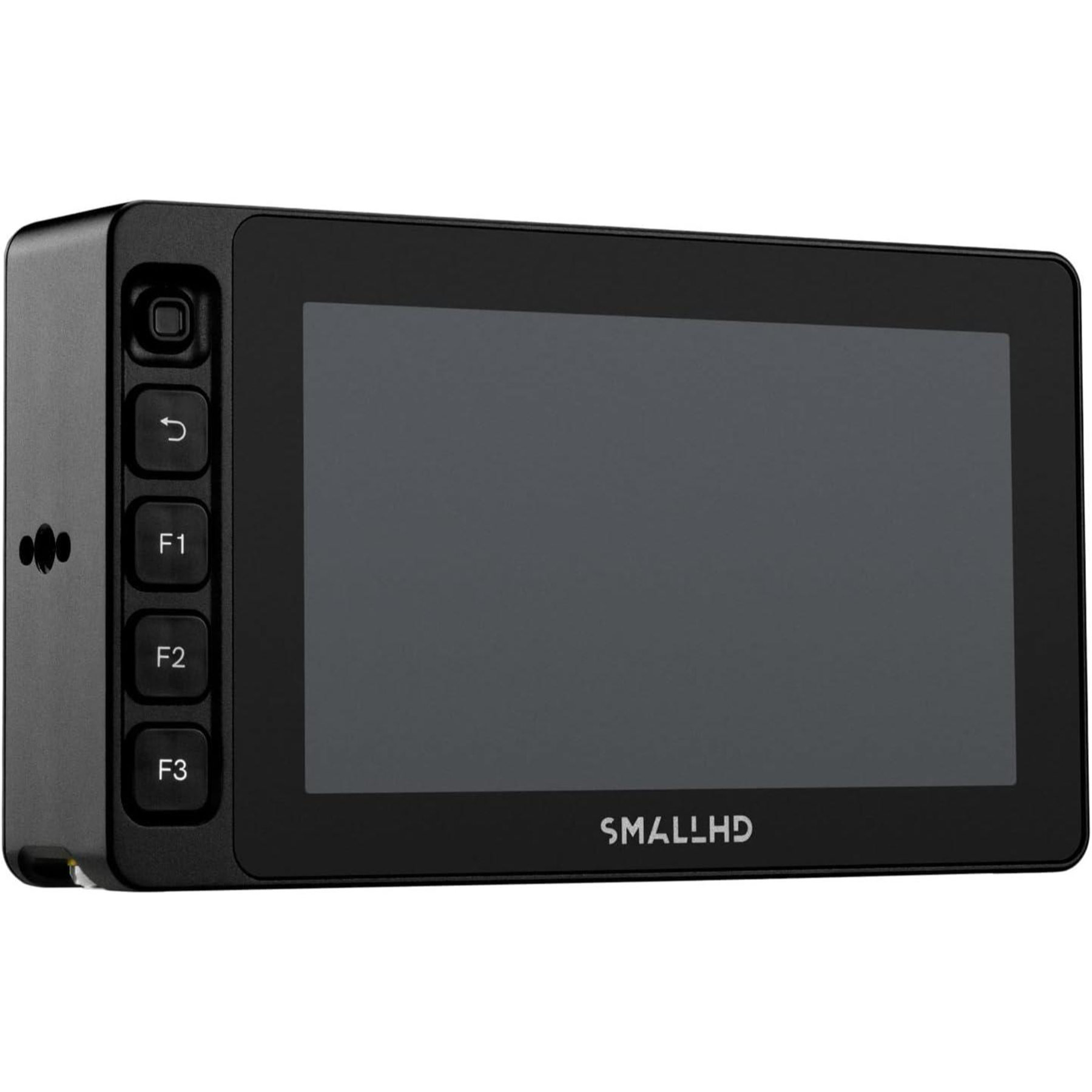

- SmallHD ULTRA 5 Ultrabright LCD
- Illumination: 3000 nits
- Widescreen 5 .0 inch / 125 mm color LCD
- 1920x1080 Resolution
Controls
- F1 / F2 / F3 assignable
Dimensions
- EM5 ULTRA Dimensional Drawing (to be released)
Input Format
- SDI
Material
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
Weight
- Dry: 3.53 lbs / 1.6 kg (no LCD, base configuration)
- In Water: Neutral (w/included trim float)
Depth Rating
- 200 feet / 61 meters
Warranty
- 2-Years Renewable
Cable / Connectors
- Marine-grade multi conductor cable
- Gates Pass-Thru type or MultiConn bulkhead connector type
Power Source / Run Time
- Powered by camera battery: run time variable depending on battery size.
Mini/ Mini LF / ALEXA 35 / ALEXA / FLEX4K Housings
- Gates EM5 ULTRA Small Pass-Thru type. Specify 5000-94-319 BCP ASSY, EM5 ULTRA SM PASS THRU TYPE
- Standard cable length (housing to monitor): : 24 in / 61 cm. Custom lengths available.
- Power Source: Camera / Camera battery via D-Tap
DEEP WEAPON / DEEP RAPTOR Housing
- Gates EM5 ULTRA Large Pass-Thru type. Specify 5000-94-321 BCP ASSY, EM5 ULTRA LG PASS THRU TYPE
- Standard cable length (housing to monitor): : 18in / 46 cm. Custom lengths available.
- Power Source: Camera / Camera battery via D-Tap
Housings using Gates MultiConn (GMC) bulkhead connector system
- Gates EM5 ULTRA GMC type. Specify
- 5000-94-342 GMC ASSY, EM5 ULTRA MON
- 5000-94-300 GMC ASSY, BLKHD, EM503 MON (Same as EM503)
- Standard cable length (housing to monitor): Approx 18in / 46 cm. Custom lengths available.
- Power Source: Camera / Camera battery via D-Tap
EM503 Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ARRI ALEXA DEEP WEAPON - RAPTOR FLEX4K
Tailored to the SmallHD 503 Ultrabright LCD, the Gates EM503 Underwater Monitor Housing is a brilliant 2200 nits, visible even in harsh daylight. Dedicated Power / F1 / F2 buttons are readily accessible next to the shaded 5" display, and the adjustable base can tilt / swivel to any position for the perfect viewing angle. SDI means simple, robust interface and broadly compatible with a variety of Gates Housings. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from inside the main housing shell. Both versions can be neutrally buoyant with included trim floats -- no 'turtling'!
Of course, Gates EM503 Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.
Super Bright, Widescreen Display
5" / 125 mm widescreen display is a brilliant 2200 nits HDR illumination.
Rugged, Water Blocked Cable
with a tough polyurethane jacket is "bulletproof".
Power / F1 / F2 Controls
are easibly accessible next to the shaded LCD.
2-Year Warranty
Only Gates offers a professional 2-year renewable warranty on all housings.
Tilt / Swivel base mount
adjust EM503 for the perfect viewing angle. A true professional touch.
No 'Turtling'
Neutrally buoyant design means no fighting a rig that wants to flip over.
Display
- SmallHD 503 Ultrabright LCD
- Illumination: 2200 nits
- Widescreen 5 .0 inch / 125 mm color LCD
- 1920x1080 resolution
Controls
- Power
- F1 and F2 assignable
Dimensions
Input Format
- SDI
Material
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
Weight
- Dry: 3.7 lbs / 1.7 kg (no LCD, base configuraiton)
- In Water: Neutral (w/included trim float)
Depth Rating
- 200 feet / 61 meters
Warranty
- 2-Years Renewable
Cable / Connectors
- Marine-grade multi conductor cable
- Gates Pass Through type or MultiConn type
Power Source / Run Time
- Powered by camera battery: run time variable depending on battery size.
- Optional: Powered by 2x SONY NP-F970 batteries or equivalent size (max 2.25 x 2.88 x 1.5" / 57 x 73 x 38 mm)
Run time more than 4 hours.
Mini/ Mini LF / ALEXA / FLEX4K Housings
- Gates EM503 Small Pass-Thru type. Specify 5000-94-297 BCP ASSY, EM503 SM PASS THRU TYPE
- Standard cable length (housing to monitor): : 12in / 30 cm. Custom lengths available.
- Power Source(s)
- Camera / Camera battery via D-Tap (Standard) or
- LCD battery 2X SONY NP-F970 or equivalent max size (optional).
DEEP WEAPON / DEEP RAPTOR Housing
- Gates EM503 Large Pass-Thru type. Specify 5000-94-296 BCP ASSY, EM503 LG PASS THRU TYPE
- Standard cable length (housing to monitor): : 17in / 43 cm. Custom lengths available.
- Power Source(s)
- Camera / Camera battery via D-Tap (Standard) or
- LCD battery 2X SONY NP-F970 or equivalent max size (optional).
Housings using Gates MultiConn (GMC) bulkhead connector system
- Gates EM503 GMC type. Specify 5000-94-299 GMC ASSY, EM503 MON and 5000-94-300 GMC ASSY, BLKHD, EM503
- Standard cable length (housing to monitor): 17in / 43cm
- Power Source(s)
- Camera / Camera battery via D-Tap (Standard) or
- LCD battery 2X SONY NP-F970 or equivalent max size (optional).
EM7 CINE Underwater Monitor Housing
Compatible Housings: GATES IMMERSIVE HOUSING DEEP WEAPON - RAPTOR
ARRI ALEXA MINI / MINI LF ALEXA 35 ARRI ALEXA FLEX4K
Gates EM7 CINE Underwater Monitor Housing is a bespoke, glove-fit for the SmallHD CINE 7 LCD, offering a vivid 1800 nit 1900x1200 resolution display, visible even the bright daylight of shallow tropical waters. As with all Gates External Monitors, its adjustable base can tilt / swivel to any position for the perfect viewing angle. Simple, robust SDI interface that is broadly compatible with a variety of Gates Housings for RED, ARRI, and Sony. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from the main camera housing shell. For the perfect trim, EM7 CINE can be either slightly negative or perfectly neutral buoyancy with included trim float -- no 'turtling'!
Of course, Gates EM7 CINE Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.
Easy-to-see Daylight Bright 1800 nit Display
SmallHD CINE 7 LCD is a big 7" / 178 mm 1920 x 1200 display with brilliant HDR illumination.
Rugged, Water Blocked Cable
with a tough polyurethane jacket is "bulletproof".
Dual Power Options
Power can be either 2x Sony L-Series batteries (mounted to CINE 7 LCD) or from the main housing system.
2-Year Warranty
Only Gates offers a professional 2-year renewable warranty on all housings.
Tilt / Swivel base mount
Adjust EM7 CINE for the perfect viewing angle. A true professional touch.
No 'Turtling'
Neutrally buoyant design means no fighting a rig that wants to flip over.
Display
- SmallHD CIN 7 LCD
- Illumination: 1800 nits
- Widescreen 7 .0 inch / 178 mm color LCD
- 1920x1200 Resolution
Controls
- Power On / Off
Dimensions
Input Format
- SDI
Material
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
Weight
- Dry: 6.1 lbs / 2.8 kg (no LCD, base configuration)
- In Water: Neutral (w/included trim float)
Depth Rating
- 200 feet / 61 meters
Warranty
- 2-Years Renewable
Cable / Connectors
- Marine-grade multi conductor cable
- Gates Pass-Thru type or MultiConn bulkhead connector type
Power Source / Run Time
- Powered by either
- Camera battery; or
- 2x Sony L-Series NP-F970 or equivalent. Batteries mounted to LCD.
- Run time variable depending on battery size.
Gates Immersive Housing
- Gates EM7 CINE GMC Type.
- Power Source:
- Camera battery via D-Tap
Mini/ Mini LF / ALEXA 35 / ALEXA / FLEX4K Housings
- Gates EM7 CINE Small Pass-Thru type. Specify 5000-94-330 BCP ASSY, EM7 CINE SM PASS THRU TYPE
- Standard cable length (housing to monitor) : 18 in / 46 cm. Custom lengths available.
- Power Source:
- Camera / Camera battery via D-Tap; or
- 2x L-Series batteries NP-F970 or equivalent
DEEP WEAPON / DEEP RAPTOR Housing
- Gates EM7 CINE Large Pass-Thru type. Specify 5000-94-331 BCP ASSY, EM7 CINE LG PASS THRU TYPE
- Standard cable length (housing to monitor): 24in / 61 cm. Custom lengths available.
- Power Source:
- Camera / Camera battery via D-Tap; or
- 2x L-Series batteries NP-F970 or equivalent
Housings using Gates MultiConn (GMC) bulkhead connector system
- Gates EM7 CINE GMC type. Specify
- 5000-94-332 GMC ASSY, EM7 CINE MON
- 5000-94-300 GMC ASSY, BLKHD, EM503 MON (Same as EM503)
- Standard cable length (housing to monitor): Approx 18in / 46 cm. Custom lengths available.
- Power Source:
- Camera / Camera battery via D-Tap; or
- 2x L-Series batteries NP-F970 or equivalent
Port Options
The best camera in the world can't make up for poor optics. Poor optical design and materials introduce ‘image killers’ – distortions, aberrations, degraded resolution, or vignetting. Gates family of Precision Ports are sharp and clear: the finest optics for the finest underwater images. No image killers. Professional to amateur, super wide to macro, Gates Precision Ports suit a wide range of needs, conditions and experience. Of course all ports are backed by our legendary customer support and the same standard of excellence expected of all Gates products.
60-Series Ports
The SP60-6 is a 6in / 152 mm spherical dome port that preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging. Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable. For medium to wide and fisheye imaging, the SP60-6 supports a wide variety of lenses The SP60-6 is available with either Acrylic / Perspex dome or BK7 Anti-Reflective (AR) coated glass domes. Field Serviceable and replaceable dome (acrylic / Perspex only)SP60-6 Dome Port
Versatile
AR Coated Glass
Field Serviceable
Material Options
Element Diameter / Clear Aperture
Dome Spherical Diameter
Depth Rating
A simple, versatile port option for macro work or lenses that don't perform well with a dome port. The FP80 supports a wide range of lenses for medium to macro imaging. a practical material for field use, minor scratches can be polished out. Fits perfectly with the Pro Action sleek profile. The FP80 element is user-changeable in the field.
FP60 Flat Port
Versatile
Acrylic (Perspex) Element
Compact Size
Field Replaceable
Material
Element Diameter / Clear Aperture:
Depth Rating
Optical Notes
80-Series Ports
FP80 Flat Port
Due to its larger front element, the FP80 supports a variety of medium to macro lenses – including external zooms. A simple, versatile port option. Both Acrylic (Perspex) and Glass versions available.
Versatile
The FP80 supports a wide range of lenses for medium to macro imaging.
AR Coated Glass
BK7 glass element with Anti Reflective (AR) coating is optional.
Shade
Shade choices include W075 (standard) and Macro (optional)
Field Replaceable
The FP80 element is user-changeable in the field.
Material
- Optical grade Acrylic / Perspex (standard)
- Anti-reflective (AR) coated BK7 glass (optional)
Element Diameter / Clear Aperture:
- 7.4in / 189mm
Shades
- W075 (standard)
- Macro (optional)
Depth Rating
- 450ft / 137m
Optical Notes
- Flat ports reduce Field of View (FOV) 20% underwater.
SP80-8 Dome Port
The SP80-8 is an 8in / 203mm spherical dome port that preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging. Medium to macro, too, when paired with compatible macro zoom lenses. Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable.
Versatile
For medium to wide and fisheye imaging, the SP80-8 supports a wide variety of lenses
AR Coated Glass
The SP80-8 is available with either Acrylic / Perspex dome or BK7 Anti-Reflective (AR) coated glass domes.
Field Serviceable
Field Serviceable and replaceable dome (acrylic / Perspex only)
Material Options
- Acrylic / Perspex
- Anti-Reflective (AR) coated BK7 glass
Element Diameter / Clear Aperture
- 7.5in / 190mm
Dome Spherical Diameter
- 8in / 203mm
Depth Rating
- 450ft / 137m
SP80-10 Dome Port
The SP80-10 is a 10in / 254mm spherical dome port that, like it's smaller SP80-8 sibling preserves field of view (FOV) underwater for wide to fisheye imaging. The SP80-10 however, exhibits superior compatibility with rectilinear lenses, mitigating the soft corners classically found with dome ports in general. This particularly beneficial with certain cinema PL mount glass like Arri Master Primes and Ultra Primes.
The SP80-10 is available in Anti-Reflective (AR) coated glass only.
Superior Rectilinear Compatibility
For medium to wide and fisheye imaging, the SP80-10 excels at rectilniear imaging, particularly with PL mount cinema lenses.
AR Coated Glass
The SP80-10 is made of optically pure BK7 Anti-Reflective (AR) coated glass domes.
Versatile
The SP80-10 is compatible with hundreds of lenses. See Gates Compatibility Reference.
Material Options
- Anti-Reflective (AR) coated BK7 glass
Element Diameter / Clear Aperture
- 7.5in / 190mm
Dome Spherical Diameter
- 10in / 254mm
Depth Rating
- 450ft / 137m
Specialized Port / Adapters
MLA60 Macro Probe Lens Adapter
In collaboration with Venus Optics, the Gates MLA60 Probe Lens Adapter allows full submersion of the Laowa 24mm Macro Probe lens for truly unique macro imaging perspective. A long, tubular barrel with tiny lens tip can extend into the smallest of spaces, yet provide a remarkable 84° FOV, 2:1 magnification, and infinity focus. Further, the Laowa 24mm Macro covers full frame *and* larger sensors like RED Monstro from a standard Canon or Nikon mount.
Learn more about the MLA60 Macro Probe Lens Adapter
Unique 'Goby-Eye' Perspective
The Laowa 24mm Macro Probe lens offer remarkable 2:1 Magnification, wide 84° at the tiny lens tip and infinity focus.
Full Housing Integration
The MLA60 directly adapts iris / focus functions to the housing controls. Optional LED ring light power cable with on/off switching.
7in / 178mm probe extension
Collaboration with Venus Optics allows for full submersion of the 24mm Macro Probe while retaining generous barrel extension.
Required Components
- Laowa 24mm Macro Probe lens
- Full set of SPR60 Stackable Port Rings
MLA60 Construction
- Anodized Aluminum
- Stainless Steel
- ABS Polymer gears (3D Printed)
Weight, Packing
- 1.3 lbs / 0.6 kg
Depth Rating
- 100 feet / 30 m
Warranty
- 2 Years . Gates Warranty Details.
- Laowa lens covered by separate warranty. Contact Venus optics for details.
MLA60 / Laowa 24mm Macro Probe test footage courtesy of Jeff Hester / Diatom Studios
Laowa Test Footage from Diatom Studios on Vimeo.
Custom Ports
Custom Port
Gates Precision Ports extend to custom designs for specific applications like underwater UV imaging or Corrective Optics (CO) that adapt a specific lens for underwater imaging, and eliminating distortions / aberrations. Contact Gates to discuss your particular application.
Included Accessories
Seal Check Lite
The Gates Seal Check Lite is included with every DEEP KOMODO Housing, and assures housing integrity before entering the water. A mere 11oz / 320g it packs easy and travels lightly.
Carry Handle
Easy grip, transport and handling.
Spare Kit / Tool Kit
All the items needed to setup and maintain DEEP KOMODO Housing
2-Year Warranty.
Legendary factory direct support.
Like any other valuable accessory, Gates 2-year renewable warranty and unparalleled support are part of the DEEP KOMODO kit.
Optional Accessories
Monitor Shades and Stackable Extensions
Block out unwanted light with 2in / 5cm Shade and / or stacking 1.6in / 4cm Shade Extensions.
Surface Command / Control
Need topside DP authority? DK-X is provisioned for:
* SDI Video Feed
* Camera Control w/ RED CONTROL and RED CONTROL PRO apps over Ethernet or Wifi Antenna Extender Cables.
(Ant Ext 75ft / 23m max length. PN 5000-94-361)
External Monitor
Really want a top-mounted monitor with full swivel / tilt capability? You got it. The Gates NVS External Monitor, which accepts the same ATOMOS SHINOBI SDI LCD used in DEEP KOMODO.
Water Alarm
An extra measure beyond Seal Check, the Gates Water Alarm provides both visible and audible warnings. The siren is coupled directly to the housing shell and resonates directly to the water, rendering it unmistakable.
Easy Grip Lens Control
A big, fat grippy knob extension makes fine lens control easy, especially with thick dive gloves.
Body Cap
Need added protection for travel or harsh setup environments? This body cap bayonets into place just like SPR's and Ports.
Customization
Special modifications are routine. You really can have it ‘just the way you like’.
Stackable Port Rings (SPR's)
Using lengthy lenses? SPR's come in 0.6 / 1.0 / 1.5 / 2.0 / 4.0 sizes for optimal port positioning.
Support
Setup Video
Setup, Use and Care Guides
- Gates DEEP KOMODO-X Setup, Use and Care Guide
- Gates DEEP KOMODO-X Upgrade Addendum
- Gates Underwater Housing General Care and Maintenance Guide
Port and Lens References
Surface Command / Control
GCC FIRMWARE UPDATE -- DEEP KOMODO-X
General Reference
DEEP KOMODO-X Supported Equipment
Batteries - Micro V-Lock
Compatible
- RED
- CORE SWX
- bebob
- Hawkwoods
- SWIT
- IDX
Incompatible
- SWIT
- MINO-S210
- IDX
- Imicro-150
- bebob
- V150MICRO
Lenses
- DSLR (Canon EF / Nikon F), Mirrorless (Canon RF) and Compact Cinema Glass (0.8 MOD or 32 Pitch)
- Laowa Macro Probe (with Gates MLA60 Macro Probe Lens Adapter)
- Max Lens Envelope:
- SPR60 Port Rings
- Max lens overall OD: 5.6 in / 142mm
- Max lens gear OD: 4.25 in / 108 mm / 136 Teeth
- Min lens gear OD: 3.1 in / 79 mm / 100 Teeth
- SPR80 or PR80 Port Rings
- Max lens overall OD: 7.5 in / 190mm
- Max / Min gear OD: same as above.
- SPR60 Port Rings
