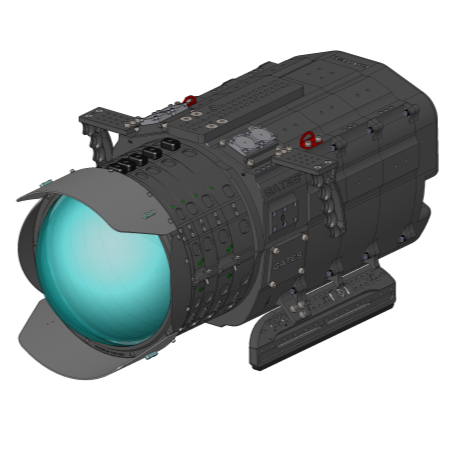

A Cinema Chameleon: Any Camera, any Lens, any LCS, any Configuration.

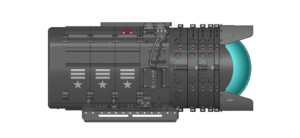

As the name defines, Gates Remote Cinema Housing (RCH) is a cinema caliber, fully remote control surface tethered rig. All functions are under DP authority: lens control, camera control, SDI video feed, and power. Crane, remote head, or diver directed, RCH is adaptable to common and unconventional shooting situations. Further, all surface tethers utilize Gates MultiConn (GMC) sealed bulkhead connector design with genuine LEMO inserts for robust signal integrity.
RCH most functional yet innovative feature is modularity: size-adaptable to cameras ranging from RED V-RAPTOR to SONY Venice to ARRI ALEXA 65, and everything in between. In the same way, Gates SPR110 Stackable Port Ring system is flexibly assembled to any lens length. Compact primes, Master Primes, Anamorphics and Cinema Zooms are all accommodated with precise port positioning for optimal image quality. Gates 10 in / 250mm glass AR coated SP110-10 dome port or FP110-10 flat port are optionally available.
Numerous other practical, reliable features imbue RCH: buoyancy / trim weights for perfect underwater balance: DC regulator provides steady 15V camera power; full camera package assembly prior to housing insertion; multiple GMC surface tether mount locations and direction; diver-directable handles and local monitoring; and support for several LCS systems including ARRI, Cmotion, Teradek and Preston.
Remote Cinema Housing is a genuinely innovative cinema workhorse. Underwater Pros know that failure is not an option. They never take a chance…. they take a Gates!
Compatible Cameras: Cinema-Caliber cameras from RED DSMC3 to ARRI ALEXA 65. Contact Gates for details.
Remote Cinema Housing is available for hire from:
Key Features
Any Camera...

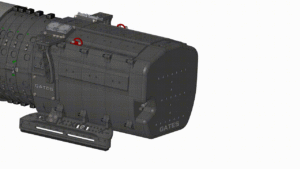

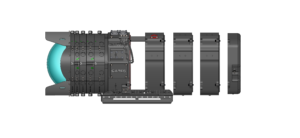

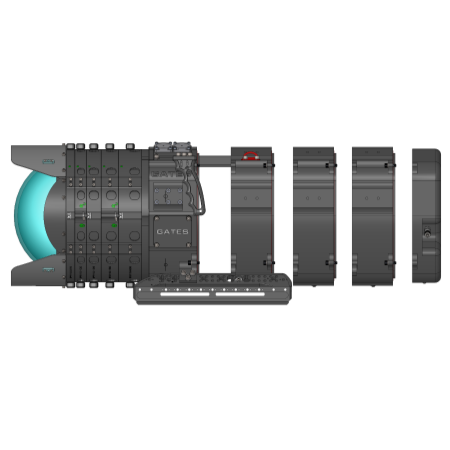

By way of stackable housing sections, RCH adapts to cameras ranging from RED DSMC3 to ARRI ALEXA 65 and everything in between.

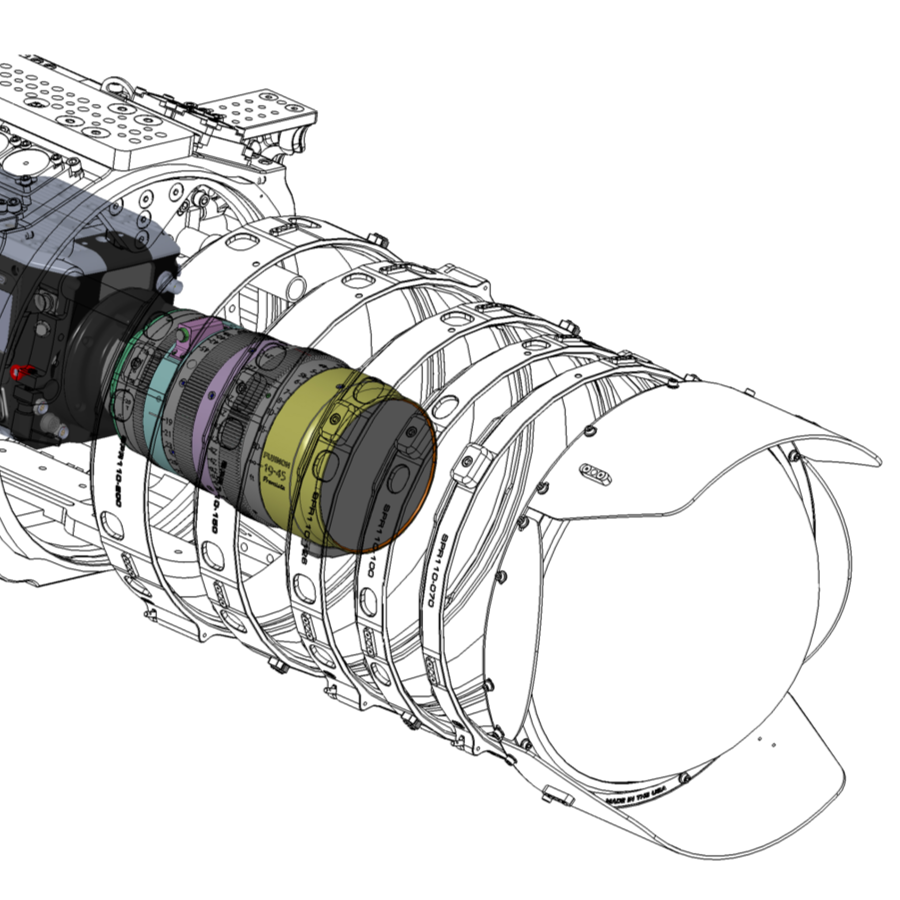

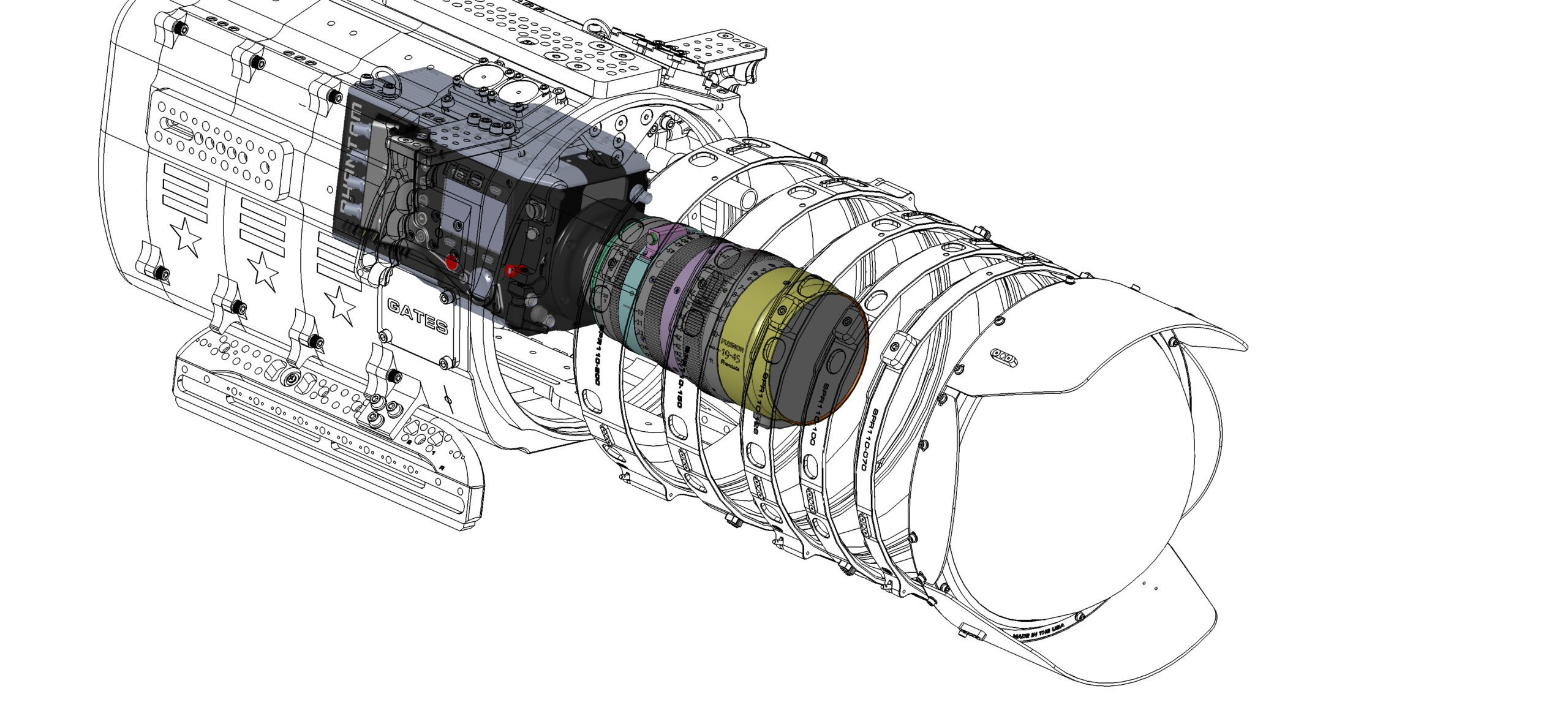

Any Lens...
Gates SPR110 Stackable Port Rings accommodate every lens we've encountered: Compact Primes, Master Primes, Cinema Zooms, Anamorphics... all of them.

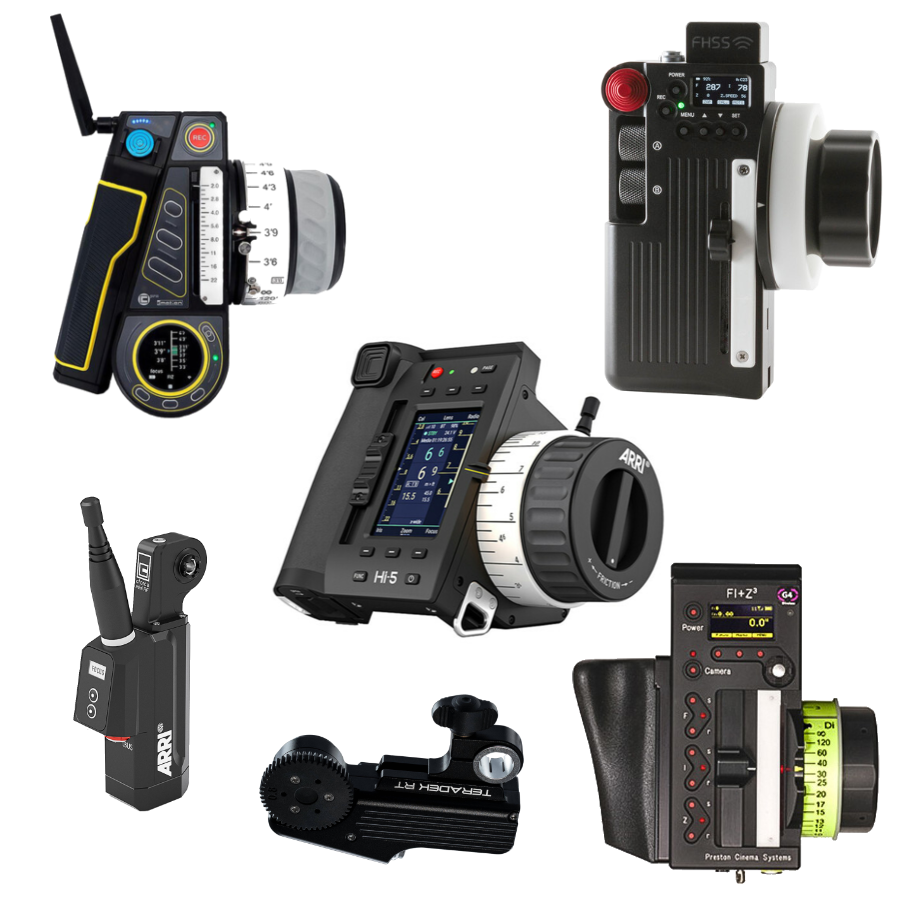

Any LCS...
ARRI, Cmotion, Preston, Teradek. It's covered.
And any Surface Command / Control.
All categories of control -- lens, camera, video, power -- are enabled via surface tether cables with robust, reliable cables and Gates MultiConn (GMC) Bulkhead connectors.
Gates MultiConn (GMC) Bulkhead Connectors
Genuine innovation, Gates MultiConn takes advantage of LEMO connector insert robustness for reliable surface-to-housing communications.

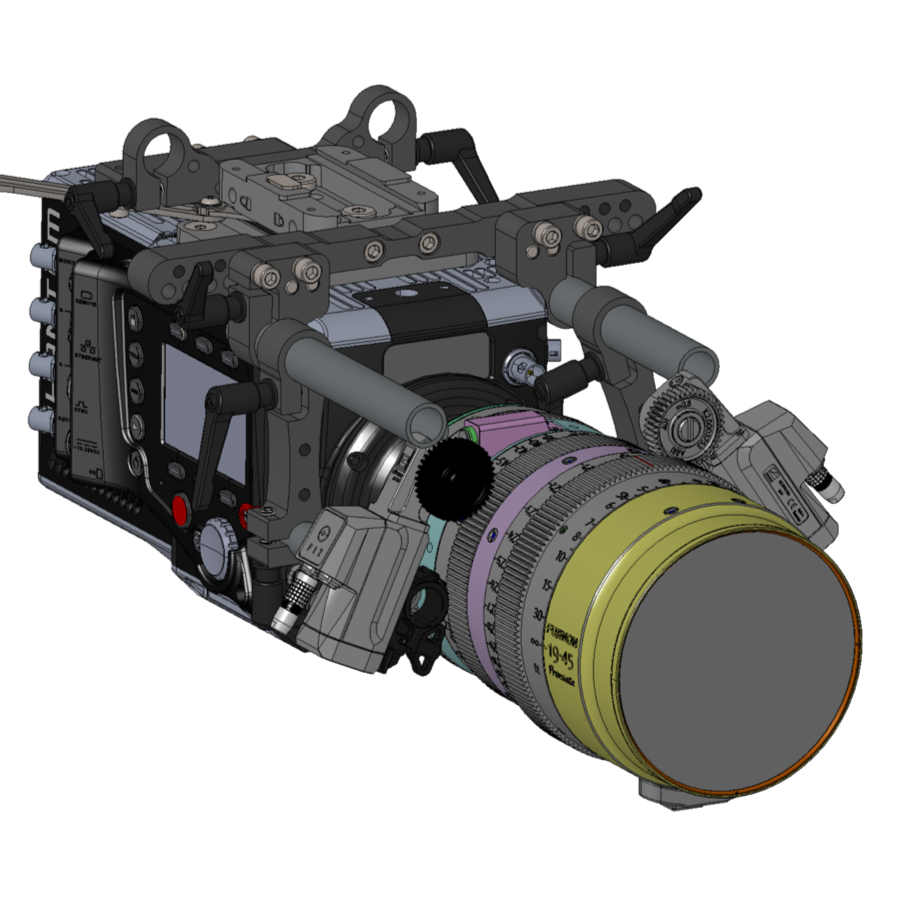

Conventional Camera Setup
RCH is designed for camera package setup -- camera, lens, LCS, supporting gear -- prior to insertion to the housing. Further, once inserted the camera package is fully accessible for functional check prior to housing closure and seal.
Crane, Diver-Directed, or custom mounting
RCH is adaptable to any shooting scenario. Get the shot in whatever way works.
Adjustable Buoyancy and Trim
Add /remove trim weights for ideal buoyancy and balance -- a key to stable, fluid shots.
Diver Monitoring
On-housing, diver directed monitoring with the EM503 External Monitor, designed specifically for the SmallHD 503 Ultrabright LCS.
Seal Check II
The Gates Seal Check II is included with the Flex 4K and assures housing integrity before entering the water.
Field Serviceable
Gates products are nearly 100% serviceable in the field.
Water Alarm
An extra measure beyond [infopopup:seal-check], the Gates Water Alarm provides both visible and audible warnings. The siren is coupled directly to the housing shell and resonates directly to the water, rendering it unmistakable to a diver.
Diver Controls
- None
- Optional RED Ranger Power On/ Off
Dimensions: Base System
- Remote Cinema Housing Dimensional Drawing
Construction
- Machined Aluminum, Type III Hard Anodized finish.
- Stainless steel hardware.
Weight in Air
- Variable depending on configuration.
Weight in Water
- Fully adjustable buoyancy / trim
Depth Rating
- 150 feet / 45 meters.
Batteries
- Surface power standard.
- Optional battery power as required.
Equipment Required
- Camera:
- Any cinema-caliber camera. Contact Gates for details.
- Lens:
- Any cinema-caliber lens. Contact Gates for details.
- LCS
- ARRI, Cmotion, Preston, Teradek RT. Contact Gates for details.
- LCD for Underwater Monitor Housing.
- Surface power via power station with 24-28 VDC
External Monitoring
EM5 ULTRA Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ALEXA 35 ARRI ALEXA DEEP WEAPON - RAPTOR FLEX4K
Gates EM5 ULTRA Underwater Monitor Housing is a tailored, glove-fit for the SmallHD ULTRA 5 LCD, with a powerful 3000 nit HD display, visible even in the harshest daylight. The adjustable base can tilt / swivel to any position for the perfect viewing angle. An SDI interface is simple, robust, and broadly compatible with a variety of Gates Housings including RED and ARRI. Power is driven by the camera power source inside the main housing shell for long run time. And the EM5 ULTRA can be either slightly negative buoyancy or perfectly neutral with included trim float -- no 'turtling'!
Of course, Gates EM5 ULTRA Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.
Super Bright 3000 nit Widescreen HD Display
5" / 125 mm widescreen display is a brilliant 3000 nits HDR illumination.
Rugged, Water Blocked Cable
with a tough polyurethane jacket is "bulletproof".
F1 / F2 / F3 Controls
are programmable, and easily accessible next to the shaded LCD.
2-Year Warranty
Only Gates offers a professional 2-year renewable warranty on all housings.
Tilt / Swivel base mount
Adjust EM5 ULTRA for the perfect viewing angle. A true professional touch.
No 'Turtling'
Neutrally buoyant design means no fighting a rig that wants to flip over.
Display
- SmallHD ULTRA 5 Ultrabright LCD
- Illumination: 3000 nits
- Widescreen 5 .0 inch / 125 mm color LCD
- 1920x1080 Resolution
Controls
- F1 / F2 / F3 assignable
Dimensions
- EM5 ULTRA Dimensional Drawing (to be released)
Input Format
- SDI
Material
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
Weight
- Dry: 3.53 lbs / 1.6 kg (no LCD, base configuration)
- In Water: Neutral (w/included trim float)
Depth Rating
- 200 feet / 61 meters
Warranty
- 2-Years Renewable
Cable / Connectors
- Marine-grade multi conductor cable
- Gates Pass-Thru type or MultiConn bulkhead connector type
Power Source / Run Time
- Powered by camera battery: run time variable depending on battery size.
Mini/ Mini LF / ALEXA 35 / ALEXA / FLEX4K Housings
- Gates EM5 ULTRA Small Pass-Thru type. Specify 5000-94-319 BCP ASSY, EM5 ULTRA SM PASS THRU TYPE
- Standard cable length (housing to monitor): : 24 in / 61 cm. Custom lengths available.
- Power Source: Camera / Camera battery via D-Tap
DEEP WEAPON / DEEP RAPTOR Housing
- Gates EM5 ULTRA Large Pass-Thru type. Specify 5000-94-321 BCP ASSY, EM5 ULTRA LG PASS THRU TYPE
- Standard cable length (housing to monitor): : 18in / 46 cm. Custom lengths available.
- Power Source: Camera / Camera battery via D-Tap
Housings using Gates MultiConn (GMC) bulkhead connector system
- Gates EM5 ULTRA GMC type. Specify
- 5000-94-342 GMC ASSY, EM5 ULTRA MON
- 5000-94-300 GMC ASSY, BLKHD, EM503 MON (Same as EM503)
- Standard cable length (housing to monitor): Approx 18in / 46 cm. Custom lengths available.
- Power Source: Camera / Camera battery via D-Tap
EM503 Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ARRI ALEXA DEEP WEAPON - RAPTOR FLEX4K
Tailored to the SmallHD 503 Ultrabright LCD, the Gates EM503 Underwater Monitor Housing is a brilliant 2200 nits, visible even in harsh daylight. Dedicated Power / F1 / F2 buttons are readily accessible next to the shaded 5" display, and the adjustable base can tilt / swivel to any position for the perfect viewing angle. SDI means simple, robust interface and broadly compatible with a variety of Gates Housings. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from inside the main housing shell. Both versions can be neutrally buoyant with included trim floats -- no 'turtling'!
Of course, Gates EM503 Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.
Super Bright, Widescreen Display
5" / 125 mm widescreen display is a brilliant 2200 nits HDR illumination.
Rugged, Water Blocked Cable
with a tough polyurethane jacket is "bulletproof".
Power / F1 / F2 Controls
are easibly accessible next to the shaded LCD.
2-Year Warranty
Only Gates offers a professional 2-year renewable warranty on all housings.
Tilt / Swivel base mount
adjust EM503 for the perfect viewing angle. A true professional touch.
No 'Turtling'
Neutrally buoyant design means no fighting a rig that wants to flip over.
Display
- SmallHD 503 Ultrabright LCD
- Illumination: 2200 nits
- Widescreen 5 .0 inch / 125 mm color LCD
- 1920x1080 resolution
Controls
- Power
- F1 and F2 assignable
Dimensions
Input Format
- SDI
Material
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
Weight
- Dry: 3.7 lbs / 1.7 kg (no LCD, base configuraiton)
- In Water: Neutral (w/included trim float)
Depth Rating
- 200 feet / 61 meters
Warranty
- 2-Years Renewable
Cable / Connectors
- Marine-grade multi conductor cable
- Gates Pass Through type or MultiConn type
Power Source / Run Time
- Powered by camera battery: run time variable depending on battery size.
- Optional: Powered by 2x SONY NP-F970 batteries or equivalent size (max 2.25 x 2.88 x 1.5" / 57 x 73 x 38 mm)
Run time more than 4 hours.
Mini/ Mini LF / ALEXA / FLEX4K Housings
- Gates EM503 Small Pass-Thru type. Specify 5000-94-297 BCP ASSY, EM503 SM PASS THRU TYPE
- Standard cable length (housing to monitor): : 12in / 30 cm. Custom lengths available.
- Power Source(s)
- Camera / Camera battery via D-Tap (Standard) or
- LCD battery 2X SONY NP-F970 or equivalent max size (optional).
DEEP WEAPON / DEEP RAPTOR Housing
- Gates EM503 Large Pass-Thru type. Specify 5000-94-296 BCP ASSY, EM503 LG PASS THRU TYPE
- Standard cable length (housing to monitor): : 17in / 43 cm. Custom lengths available.
- Power Source(s)
- Camera / Camera battery via D-Tap (Standard) or
- LCD battery 2X SONY NP-F970 or equivalent max size (optional).
Housings using Gates MultiConn (GMC) bulkhead connector system
- Gates EM503 GMC type. Specify 5000-94-299 GMC ASSY, EM503 MON and 5000-94-300 GMC ASSY, BLKHD, EM503
- Standard cable length (housing to monitor): 17in / 43cm
- Power Source(s)
- Camera / Camera battery via D-Tap (Standard) or
- LCD battery 2X SONY NP-F970 or equivalent max size (optional).
NVS Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ARRI ALEXA DEEP WEAPON-RAPTOR SONY Z90
1000 nits bright LCD. 4K/60P recording in ProRes RAW. Extensive focus / exposure tools. All in a compact, neutrally buoyant package. That's the Gates NVS External Monitor Housing.
Designed specifically for the Atomos NINJA V, SHINOBI and SHINOBI SDI, Gates NVS Underwater Monitor Housing accommodates all three with field-configurable changes. Touch screen buttons are readily accessible below the shaded 5" display, and the mounting base will tilt / swivel to any position for the perfect viewing angle. Battery powered or driven by the camera v-lock (SHINOBI SDI only), NVS preserves a streamlined, low profile to the housing for minimal water resistance.
Of course, Gates NVS Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.
Compact Size, Widescreen Display
5" / 125 mm widescreen display is a bright 1000 nits.
ATOMOS NINJA V, SHINOBI and SHINOBI SDI LCD's
are all supported via field-configurable changes. Contact us for details.
Touch screen controls
are easibly accessible below the shaded LCD.
2-Year Warranty
Only Gates offers a professional 2-year renewable warranty on all housings.
Tilt / Swivel base mount
adjust NVS for the perfect viewing angle. A true professional touch.
No 'Turtling'
Neutrally buoyant design means no fighting a rig that wants to flip over.
Display
- ATOMOS NINJA V (+ Master Caddy), SHINOBI and SHINOBI SDI LCD's
- Widescreen 5 .0 inch / 125 mm color LCD
- 1920x1080 resolution
Controls
- Power
- Touch Screen x12
Dimensions
Input Formats
- HDMI (NINJA V, SHINOBI) and HD-SDI (SHINOBI SDI)
- View all LCD specifications at ATOMOS.com
Material
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
Weight
- Dry: 3.7lbs / 1.7 kg 4.8lbs / 2.2kg with LCD & Battery
- In Water: Slightly positive to slightly negative (battery dependent)
Depth Rating
- 200 feet / 61 meters
Warranty
- 2-Years Renewable
Cable / Connections
- Marine-grade multi conductor cable
- Gates Pass Through connectors
Power / Run Time
- Variable. Consult ATOMOS specifications for details.
Mini/ Mini LF / ALEXA / FLEX4K Housings
- LCD: ATOMOS SHINOBI SDI
- Power Source(s)
- LCD battery (Sony NP-F970) or
- Camera / Camera battery via D-Tap
- Gates NVS External Monitor SDI Cable: specify 5000-94-186 BCP ASSY, SDI+PWR SML PENTR NVS MON
Standard cable length (Housing to Monitor): 24-28 in / 61-71 cm. Custom length available.
Mini/ Mini LF / ALEXA / FLEX4K Housings
- LCD: ATOMOS SHINOBI SDI
- Power Source
- LCD battery (Sony NP-F970)
- Gates NVS External Monitor SDI Cable: specify 5000-94-190 BCP ASSY, SDI SML PENTR NVS MON
Standard cable length (Housing to Monitor): 16-18 in / 41-46 cm. Custom length available.
Z90 Housing (for Sony PXW-Z90 Camera)
- LCD: ATOMOS SHINOBI SDI
- Power Source
- LCD battery (Sony NP-F970)
- Gates NVS External Monitor SDI Cable: specify 5000-94-219 BCP ASSY, SDI BLKHD ADPTR NVS MON
Standard cable length (Housing to Monitor): 25-28 in / 63-71 cm. Custom length available.
DEEP WEAPON Housing
- LCD: ATOMOS SHINOBI SDI
- Power Source(s)
- LCD battery (Sony NP-F970) or
- Camera / Camera battery via D-Tap
- Gates NVS External Monitor SDI Cable: specify 5000-94—218 BCP ASSY, SDI+PWR LG PNTR NVS MON
Standard cable length (Housing to Monitor): 25-28 in / 63-71 cm. Custom length available.
AX700 / Z90 Housing (for Sony FDR-AX700 or PXW-Z90 Camera)
- LCD: ATOMOS NINJA V or SHINOBI
- Power Source
- LCD battery (Sony NP-F970)
- Gates NVS External Monitor HDMI Cable: specify 5000-94-182 BCP ASSY, HDMI BLKHD ADPTR NVS MON
Standard cable length (Housing to Monitor): 30-36 in / 76-91 cm. Custom length available.
Port Options
The best camera in the world can't make up for poor optics. Poor optical design and materials introduce ‘image killers’ – distortions, aberrations, degraded resolution, or vignetting. Gates family of Precision Ports are sharp and clear: the finest optics for the finest underwater images. No image killers. Professional to amateur, super wide to macro, Gates Precision Ports suit a wide range of needs, conditions and experience. Of course all ports are backed by our legendary customer support and the same standard of excellence expected of all Gates products.
At a remarkable 12.6 in / 320 mm diameter, the SP110-12 stands alone, a new standard in underwater optics. Optical glass with anti-reflective coating, SP110-12 is designed for rectilinear cinema lenses, yet equally at home in natural history applications where split shots and close focus are key parameters. ARRI Master Primes, Fujinon Cinema Zoom's and Anamorphic Lenses all benefit from this superior, 'no compromises' Dome Port. The SP110-12 is available in Anti-Reflective (AR) coated glass only. For medium to wide and fisheye imaging, the SP110-12 excels at rectilinear imaging, particularly with PL mount cinema lenses. The SP110-12 is made of optically pure BK7 Anti-Reflective (AR) coated glass domes. The SP110-12 is compatible with hundreds of lenses. Click the link above to Gate Lens Compatibility Reference.
SP110-12 Dome Port
Superior Rectilinear Compatibility
AR Coated Glass
Versatile
Material Options
Element Diameter / Clear Aperture
Dome Spherical Diameter
Depth Rating
Designed specifically for RCH, SP110-10 is a 10in / 254mm spherical dome port that, like it's smaller SP80-8 sibling preserves field of view (FOV) underwater for wide to fisheye imaging. The SP110-10 however, exhibits superior compatibility with rectilinear lenses, mitigating the soft corners classically found with dome ports in general. This particularly beneficial with certain cinema PL mount glass like ARRI Master Primes, Fujinami Cinema Zoom's and Anamorphic Lenses. The SP80-10 is available in Anti-Reflective (AR) coated glass only. For medium to wide and fisheye imaging, the SP80-10 excels at rectilniear imaging, particularly with PL mount cinema lenses. The SP80-10 is made of optically pure BK7 Anti-Reflective (AR) coated glass domes. The SP80-10 is compatible with hundreds of lenses. Click the link above to Gate Lens Compatibility Reference.
SP110-10 Dome Port
Superior Rectilinear Compatibility
AR Coated Glass
Versatile
Material Options
Element Diameter / Clear Aperture
Dome Spherical Diameter
Depth Rating
Due to its larger front element, the FP80 supports a variety of medium to macro lenses – including external zooms. A simple, versatile port option. Both Acrylic (Perspex) and Glass versions available. The FP80 supports a wide range of lenses for medium to macro imaging. BK7 glass element with Anti Reflective (AR) coating is optional. Shade choices include W075 (standard) and Macro (optional) The FP80 element is user-changeable in the field.
FP80 Flat Port
Versatile
AR Coated Glass
Shade
Field Replaceable
Material
Element Diameter / Clear Aperture:
Shades
Depth Rating
Optical Notes
The SP80 preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging. Medium to macro, too, when paired with a macro zoom lens. Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable. For medium to wide and fisheye imaging, the SP80 supports a wide variety of lenses The SP80 is available with either Acrylic / Perspex dome or BK7 Anti-Reflective (AR) coated glass domes. Field Serviceable and replaceable dome (acrylic / Perspex only)SP80 Standard (Dome) Port
Versatile
AR Coated Glass
Field Serviceable
Material Options
Element Diameter / Clear Aperture
Dome Spherical Diameter
Depth Rating
The SP80-10 is a 10in / 254mm spherical dome port that, like it's smaller SP80-8 sibling preserves field of view (FOV) underwater for wide to fisheye imaging. The SP80-10 however, exhibits superior compatibility with rectilinear lenses, mitigating the soft corners classically found with dome ports in general. This particularly beneficial with certain cinema PL mount glass like Arri Master Primes and Ultra Primes. The SP80-10 is available in Anti-Reflective (AR) coated glass only. For medium to wide and fisheye imaging, the SP80-10 excels at rectilniear imaging, particularly with PL mount cinema lenses. The SP80-10 is made of optically pure BK7 Anti-Reflective (AR) coated glass domes. The SP80-10 is compatible with hundreds of lenses. Click the link above to Gate Lens Compatibility Reference.SP80-10 Dome Port
Superior Rectilinear Compatibility
AR Coated Glass
Versatile
Material Options
Element Diameter / Clear Aperture
Dome Spherical Diameter
Depth Rating
Remote Cinema Housing is 100% surface command / control, in four categories: Power, Video Feed, Lens Control, and Camera Control. Surface power source is typically power bank 24-28 VDC, delivered over Gates MultiConn and 14AWG / 2.5mm2 gauge wire for minimal losses. Robust 3GHz swept coax cable and Gates MultConn 75Ω Triax delivers 3G-SDI video up to 150 feet. Gates MultiConn is ideal for supporting various LCS brands including ARRI, Cmotion, Preston, and Teradek RT. Ethernet is the de facto standard protocol of nearly all supported cameras, allowing for straightforward surface interface with Gates MultiConn and tough, polyurethane jacketed CAT5 cable. Surface Tethers
Power
SDI Video
Lens Control
Camera Control
Support
RCH Behind The Scenes
ARMADA is the name given RCH by COMMANDER Rentals / Atlanta. ARMADA has been on numerous productions ranging from TV commercials to blockbuster movies.
Remote Cinema Housing has also been employed on natural history and cinema productions in the UK.
Behind the Scenes pics coming soon...
Gates Seal Check II -- Verify Housing Integrity before Entering the Water
