Purpose-Built 8K Acquisition Tool for Traveling Underwater Professionals

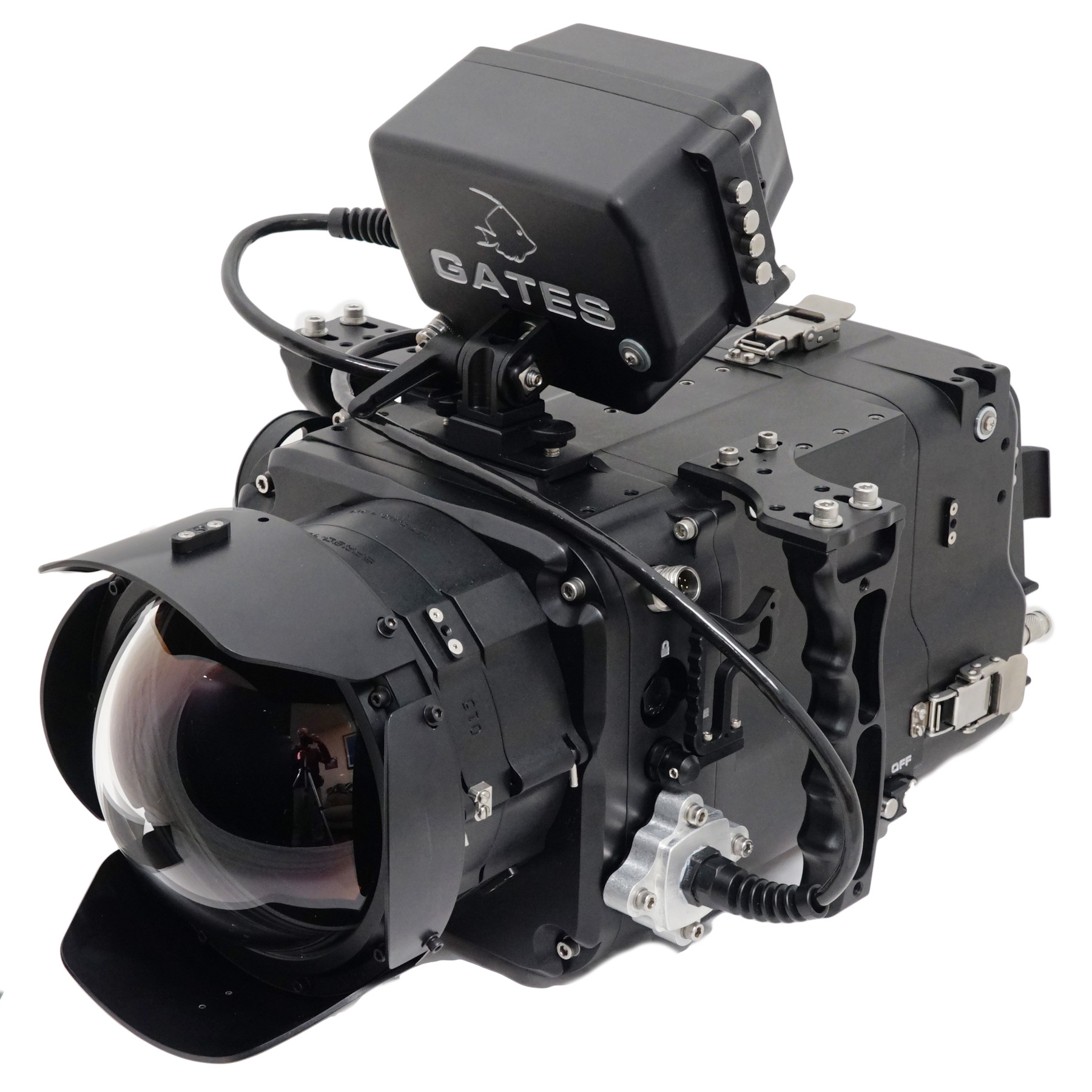

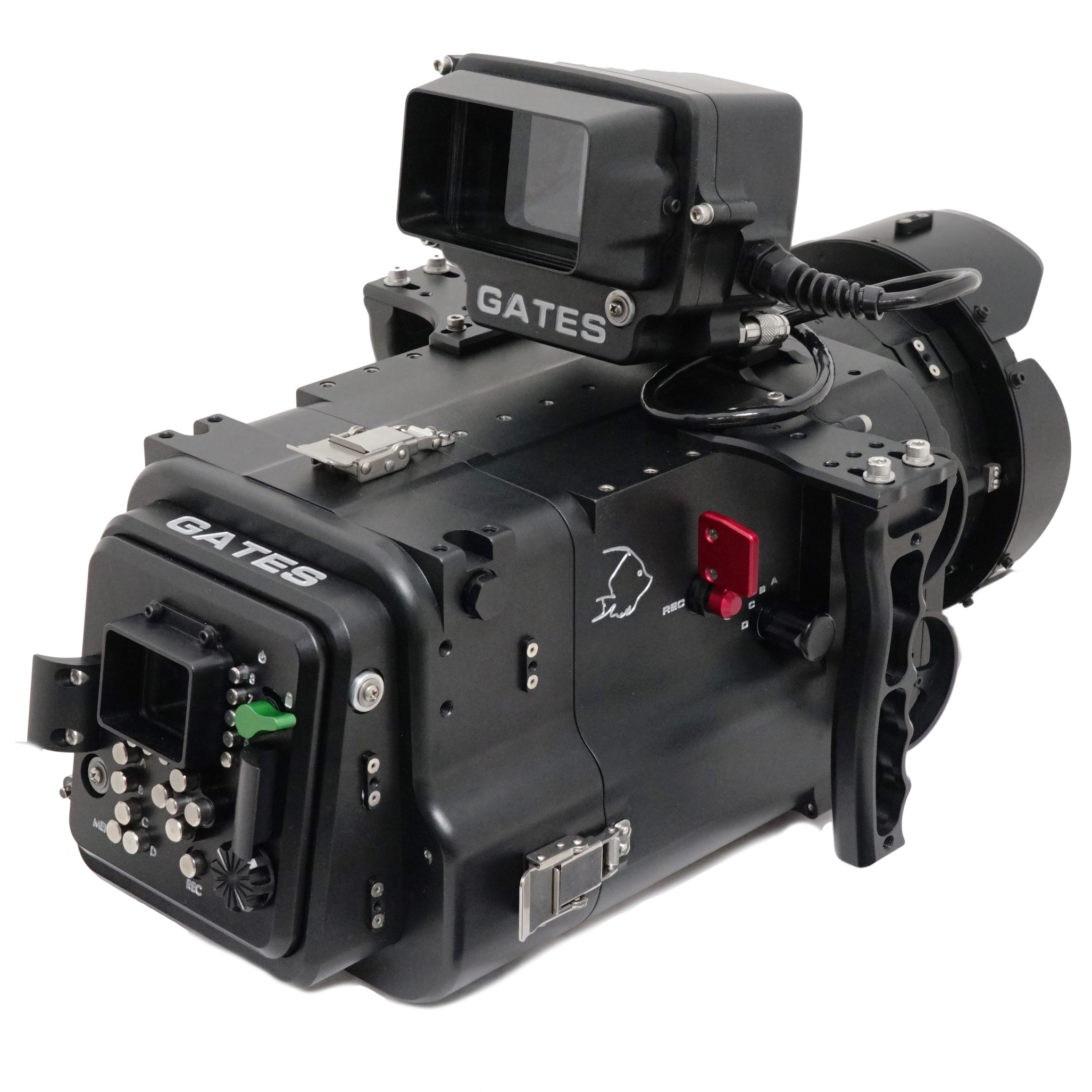

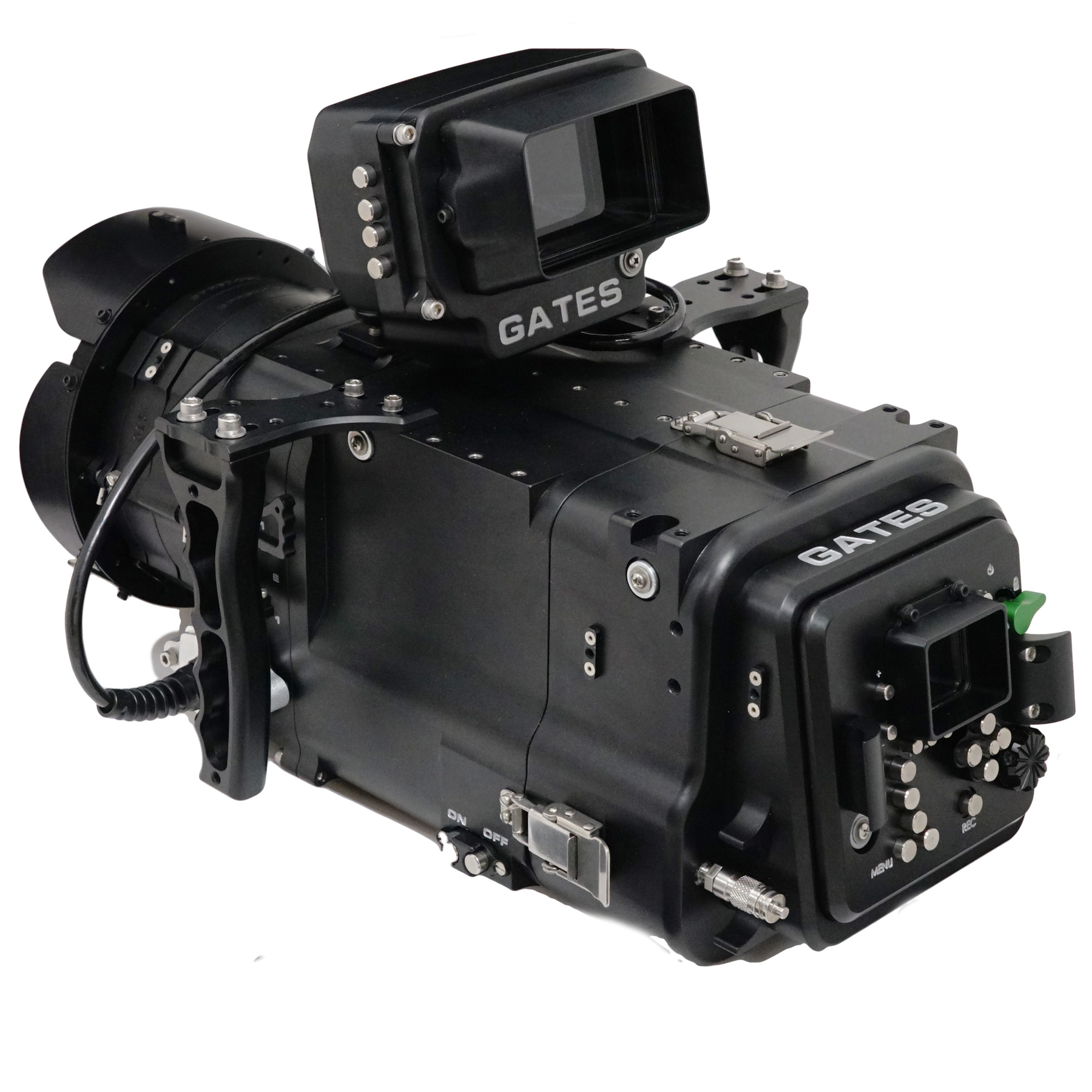

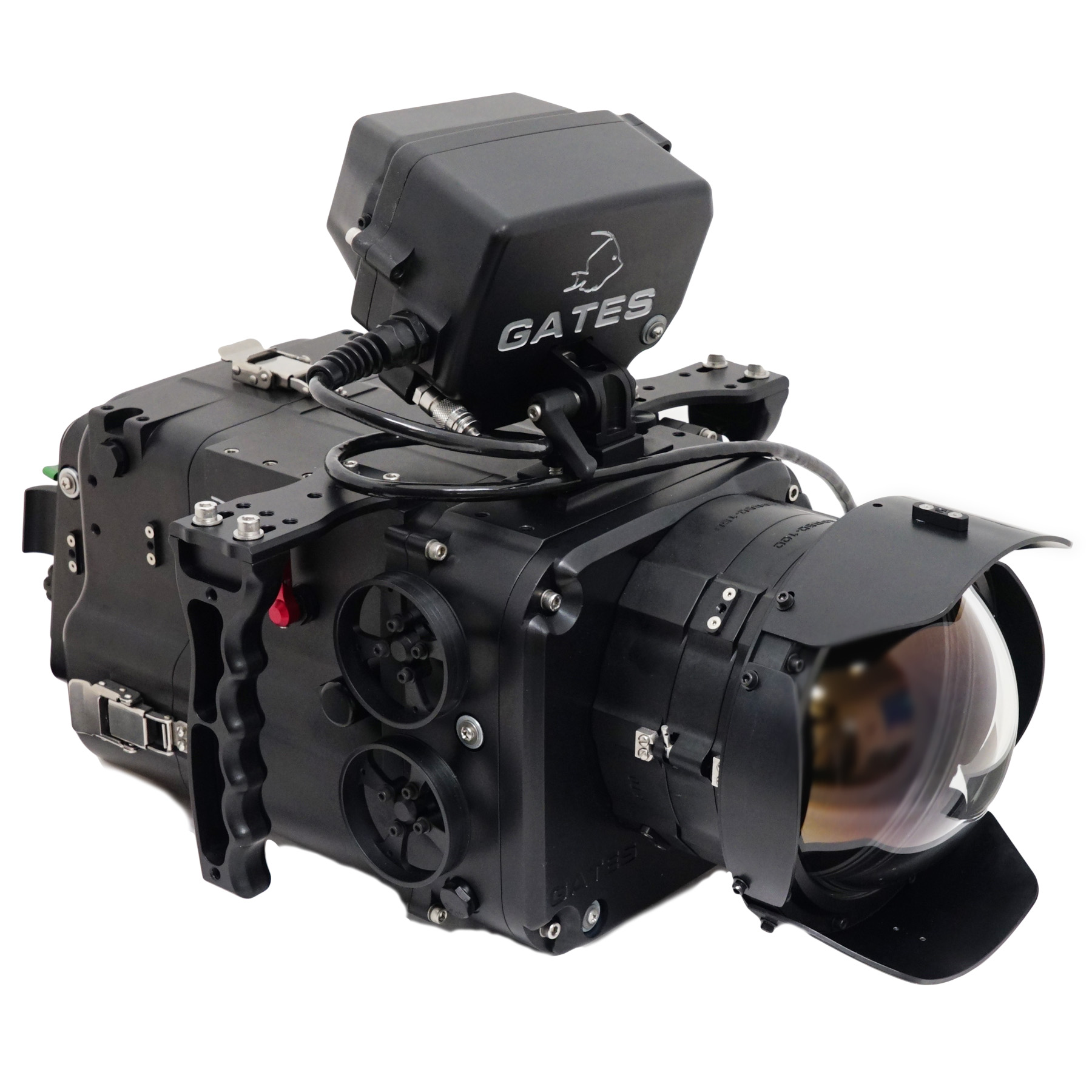

Compact. Travel-ready. Feature Rich. Meet the Gates Pro Explore Housing.
Sleek and streamlined like Pro Action, Gates Pro Explore Housing shares other distinctive qualities with its sibling: Stackable Port Rings, choice of 6, 8 and 10" AR coated glass dome ports, classic trim weight system, and Seal Check Lite. Both systems also share a unique lens gear drive system for *any* DSLR lens and compact PL glass (like Zeiss CP.3)
But the Pro Explore goes further. Tailored to the RED DSMC2 platform (Epic-W, Weapon, Scarlet-W, Raven and all sensors like Helium / Monstro) this compact rig *includes* a low profile, top mounted tilt / swivel External Monitor for the RED TOUCH 4.7" LCD. Pro Explore provides complete camera control and 14 assignable buttons. Fast battery / media changes are made via a separate removable rear shell. Adding to all that is diverse V-Lock battery support for REDBRICK, Blueshape, SWIT and many others.
Pro Explore travels easy, and is a Gates through and through. Reliable. Durable. 'Bulletproof'. Backed by Gates legendary factory direct service and 2 year renewable warranty. Only Gates offers this level of commitment to your success.
Key Features
RT47 Low Profile External Monitor
Designed specifically for the RED TOUCH 4.7" LCD (not included), the top mounted RT47 External Monitor is included with Pro Explore. It will tilt / swivel in any direction for optimal viewing. The RPT7, RTB7, RT7 and ST5 External Monitors are options, too.

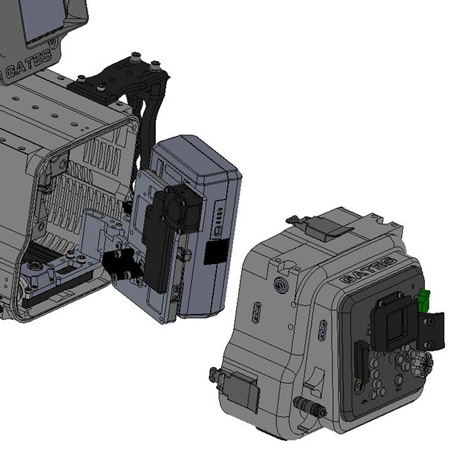

Fast Battery / Media Change
An innovative rear shell design allows media and battery change in seconds. Verify integrity with Seal Check and you're shooting again in minutes.
Complete Camera Control
14 assignables controls means direct, fast access to your favorite functions underwater. Deeper menu functions are easy, too through the REDMOTE controller which is perfectly positioned at the housing rear.
60 and 80 series Precision Ports™
Pro Explore supports the entire suite of 6, 8 and 10" dome ports and flat ports. Acrylic and AR coated glass.

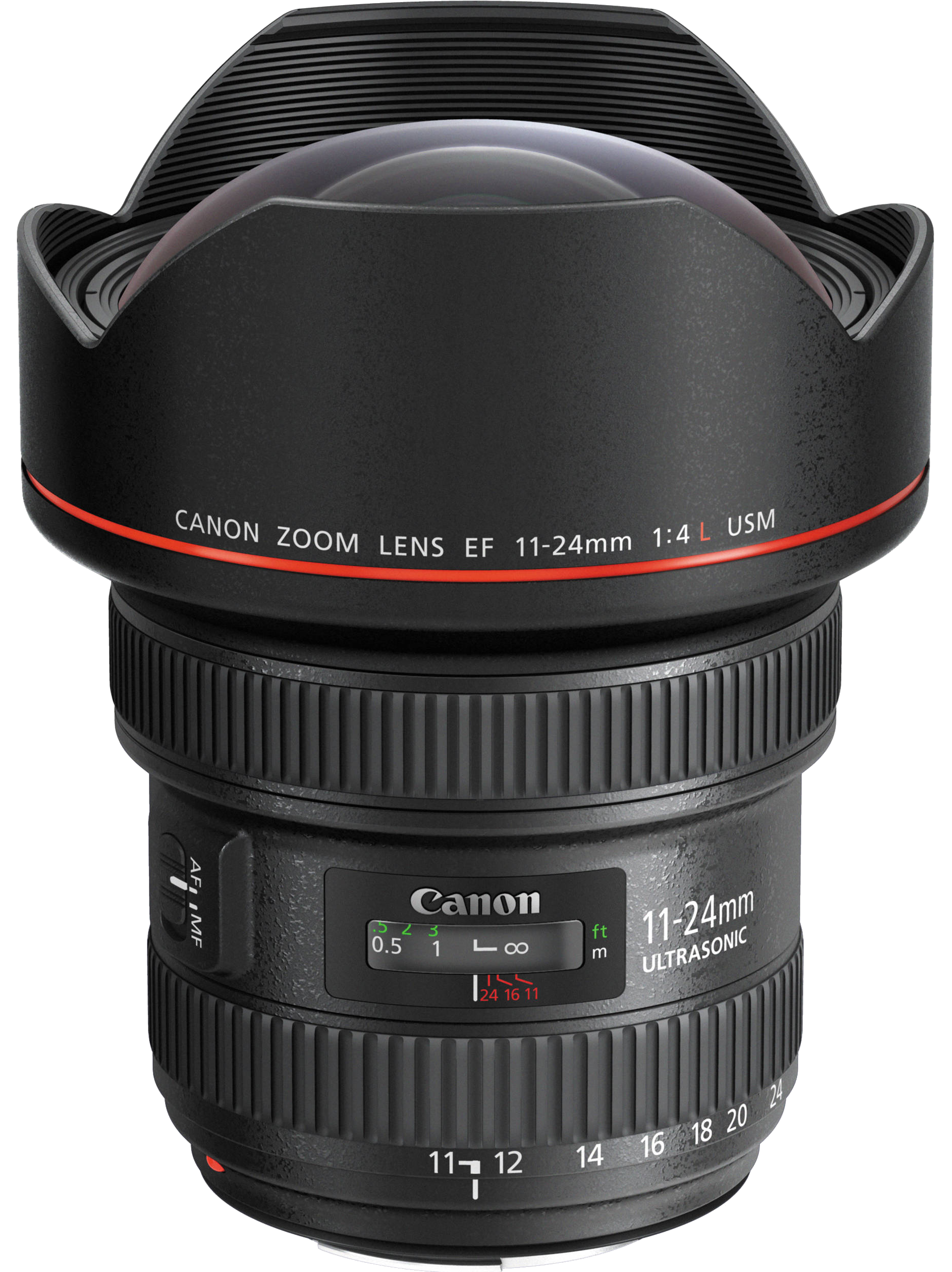

Extensive Lens Support
Gates innovative and highly flexible Lens Gear Drive system means Pro Explore can accept any DSLR lens and compact cinema PL glass (like Zeiss CP.3)
Clean, Uncomplicated Design
with mechanical controls of lens and camera assignable buttons.
Simplicity = Reliability
Expedition Ready
Cinema to TV, Natural History to enthusiast, Pro Explore delivers comprehensive features for the traveling underwater professional.
Seal Check Lite
The Gates Seal Check Lite is included with Pro Action and assures housing integrity before entering the water. A mere 11oz / 320g it packs easy and travels lightly.
2-Year Warranty.
Legendary factory direct support.
Gates is synonymous with reliability and support, and only Gates offers a 2-year, renewable warranty on all housings.
Accessorize and Customize
A range of accessories is available to suit the diverse needs of cinema, Natural History, broadcast TV, research, and military applications.
Specifications
Controls
- Master Power On/Off
- Run / Stop
- 2x Direct Coupled Lens Gear Drives
- 14 Assignables
- 2x DSMC2 Brain
- 4x Sidekick Module (A-B-C-D)
- 4x REDMOTE
- 4x RT47 External Monitor
- REDMOTE -- all controls
Dimensions:
Click here for Dimensional Drawings
Construction
- Machined Aluminum, Type III Hard Anodized finish
- Stainless steel hardware
Depth Rating
- 200 feet / 60 meters
Warranty
- 2 Years Renewable. Gates Warranty Details
Weight in Air
- Variable depending on configuration
- ~35 lbs / 16kg withSP60 Dome Port, 2x SPR60's, RT47 External Monitor, DSMC2 Camera, SWIT 8192 Battery, RED TOUCH 4.7 LCD, Canon lens.
Weight in Water
- Fully Adjustable Buoyancy / Trim
Camera Equipment Required
- Compatible Cameras:

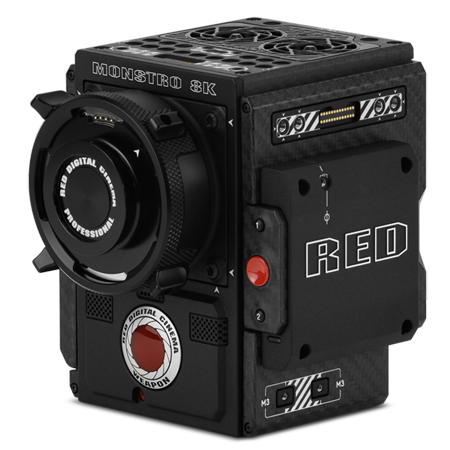

- RED DSMC2 (Weapon, Epic-W,Scarlet-W, Raven with any sensor e.g. Helium, Monstro)
- Required Camera Accessories:
- RED Jetpack SDI Module (SKU 720-0048) *OR*
RED Jetpack Expander Module (SKU 720-0039) if not using SDI surface feed or SDI External Monitor e.g. Starlite ST5 - RED Sidekick Module (SKU 720-0032)
- REDMOTE (SKU 770-0006)
- RED Jetpack SDI Module (SKU 720-0048) *OR*
- Media
- RED MINI-MAG
- Camera prep / setup only (optional)
- foolcontrol (via WiFi)

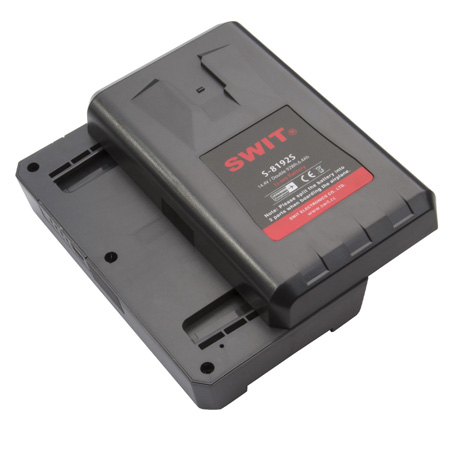

- Battery Options
- LCD Options
- RED TOUCH 4.7" LCD (SKU 760-0019)
- RED TOUCH 7" LCD (SKU 730-0007) optional when using RT7 External Monitor
- Transvideo Starlite HD5 optional when using ST5 Starlite External Monitor
- Lenses
- DSLR
- Compact PL Mount under 102mm diameter or 128T Gear
(0.8 MOD or 32 Pitch)
External Monitor Options
A Gates External Monitor housing is included with Pro Explore. Select one of the following.
Pro Explore External Monitor Options System Chart
RT47 External Monitor
Framing, focus and exposure control are mastered with the RT47 External Monitor. Designed specifically for the RED TOUCH 4.7" LCD (not included), the RT47 External Monitor provides access to all monitor functions including four side assignable buttons. Under license from RED Digital Cinema and utilizing Gates original bulkhead 'pass through' design, the interface cable between RED DSMC/DSMC2 cameras and RED TOUCH 4.7 is unbroken by additional connectors. Further, the cable has been adapted with a tough polyurethane jacket and internal water blocking materials.

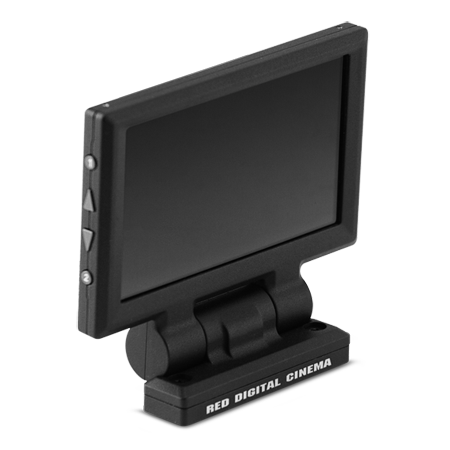

Designed for RED TOUCH 4.7" LCD
with access to all 4 assignable keys.
(RED SKU 730-0019)
Water Blocked Cable
has a tough polyurethane jacket. A Gates original design.
Powered by Epic
No additional batteries are needed with the RED PRO External Monitor, keeping it small and light.
2-Year Warranty
Only Gates offers a 2-year renewable warranty on all housings.
Compatibility
- RED TOUCH 4.7" LCD (not included)
(RED SKU 730-0019)
Contols
- Assignable x 4
Dimensions
Connections
- Gates Pass Through bulkhead connector
Power
- Via connection to any DSMC (EPIC, Scarlet, Dragon) or DSMC2 (Weapon, Epic-W, Scarlet-W, Raven) camera
Construction
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
- Marine grade cable with polyurethane jacket and water block
Weight
- Dry: 3.2 lbs / 1.45 kg
- In Water: Neutral
Depth Rating
- 300 feet / 92 meters
Warranty
- 2-Years Renewable
Dimensional Drawings
Replacement Cable Assemblies
- Pro Action / Pro Explore: 5000-94-139 BCP ASSY, RT47 MONITOR FOR PA / PX
- DEEP WEAPON / DEEP DRAGON: 5000-94-118 BCP ASSY, RT47 MONITOR FOR DW / DD
- Standard cable length 30-36 in / 76-91 cm. Custom length available.
RPT7 External Monitor (RED PRO TOUCH 7)
Designed specifically for the RED PRO TOUCH 7.0" LCD (not included), the GATES RPT7 External Monitor makes framing, focus and exposure easy. A hi-res 1920 x 1136 resolution display and a wide variety of useful tools like edge peaking, false color, magnify and more are accessible via four easy-to-reach push controls on the RPT7 left side.
The LCD cable - under exclusive license from RED - is tough and reliable, too. No additional connectors are between DSMC2 camera and LCD, the result of a Gates proprietary 'pass through' design. Further, the cable has been adapted with a tough polyurethane jacket and -- should the jacket be damaged -- internal water blocking materials to inhibit water migration toward camera and LCD, protecting your investment in the worst case situation.
No 'Turtling"
Neutrally buoyant design means no fighting a rig that wants to flip over.
Rugged Water Blocked Cable
with a tough polyu jacket is bulletproof.
Gates original, reliable Pass Through Design
No added connectors between LCD and camera. Gates through and through.
Shade Extensions (Optional)
Easy viewing in bright sunshine. Only from Gates.
Streamlined, Low Profile Mount
Despite its 7in size, the RPT7 fits close and low profile to the housing, a streamlined configuration.
2-Year Warranty
Only Gates offers a 2-year renewable warranty on all housings.
Compatibility
- RED TOUCH 7.0" LCD (not included) (RED SKU 730-0025)
- RED DSMC2 camera
Controls
- Assignable x 4
Dimensions
Connections
- Gates Pass-Through bulkhead penetrator design. No additional connectors between LCD and camera.
Power
- Via connection to DSMC2 camera
Construction
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
- Marine grade cable with polyurethane jacket and water block
Weight
- Dry: 4.7 lbs / 2.1 kg
- In Water: Slightly positive
Depth Rating
- 300 feet / 92 meters
Warranty
- 2-Years Renewable
SU&C Guides
Replacement Cable Assemblies
- Pro Action / Pro Explore: 5000-94-164 BCP ASSY, RPT7 / RTB7 MONITOR FOR PA / PX
- DEEP WEAPON: 5000-93-161 BCP ASSY, RPT7 / RTB7 MONITOR FOR DW / DD
- Standard cable length 16-18 in / 41-46 cm. Custom length available up to 72 feet / 182 cm
RTB7 External Monitor (RED PRO TOUCH ULTRA BRITE 7)
With an amazingly bright 2200 nit display, the RED PRO TOUCH ULTRA BRITE 7.0" LCD (not included) in the GATES RTB7 External Monitor housing makes framing, focus and exposure easy in the brightest daylight conditions. A wide variety of useful tools like edge peaking, false color, magnify and more are accessible via four easy-to-reach assignable push controls on the RTB7 left side.
Under exclusive license from RED, the LCD cable is "bulletproof", too. No additional connectors are between DSMC2 camera and LCD, the result of a Gates proprietary 'pass through' design. The cable has further been adapted with tough polyurethane jacket and -- should the jacket be damaged -- internal water blocking materials to inhibit water migration toward camera and LCD, protecting your investment in the worst case situation.
No 'Turtling"
Neutrally buoyant design means no fighting a rig that wants to flip over.
Rugged Water Blocked Cable
with a tough polyu jacket is bulletproof.
Gates original, reliable Pass Through Design
No added connectors between LCD and camera. Gates through and through.
Shade Extensions (Optional)
Easy viewing in bright sunshine. Only from Gates.
Streamlined, Low Profile Mount
Despite its highly visible 7in size, the RPB7 fits close and low profile to the housing, a streamlined configuration.
2-Year Warranty
Only Gates offers a 2-year renewable warranty on all housings.
Compatibility

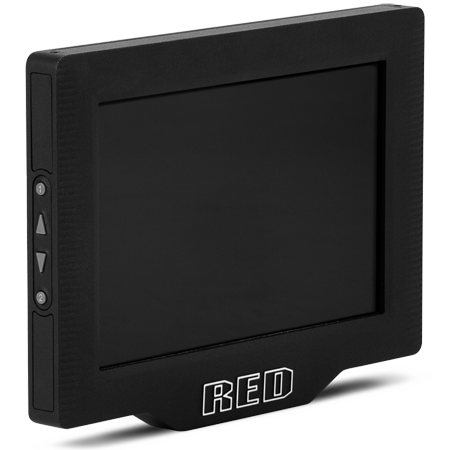

- RED TOUCH ULTRA BRITE 7.0" LCD (not included) (RED SKU 730-0026)
- RED DSMC2 camera
Controls
- Assignable x 4
Dimensions
Connections
- Gates Pass-Through bulkhead penetrator design. No additional connectors between LCD and camera.
Power
- Via connection to DSMC2 camera
Construction
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
- Marine grade cable with polyurethane jacket and water block
Weight
- Dry: 5.9 lbs / 2.7 kg (no LCD) 7.4 lbs / 3.4 kg (with LCD)
- In Water: Slightly positive
Depth Rating
- 300 feet / 92 meters
Warranty
- 2-Years Renewable
SU&C Guides
Replacement Cable Assemblies
- Pro Action / Pro Explore: 5000-94-164 BCP ASSY, RPT7 / RTB7 MONITOR FOR PA / PX
- DEEP WEAPON: 5000-93-161 BCP ASSY, RPT7 / RTB7 MONITOR FOR DW / DD
- Standard cable length 16-18 in / 41-46 cm. Custom length available up to 72 feet / 182 cm
RT7 External Monitor
Framing, focus and exposure control are mastered with the RT7 External Monitor. Designed specifically for the RED TOUCH 7" LCD (not included), the RT7 External Monitor provides access to all monitor functions including four side assignable buttons. Under license from RED Digital Cinema, the interface cable between Epic Dragon and RED TOUCH 7 is unbroken, utilizing a Gates original bulkhead 'pass through' design. Further, the cable has been adapted with a tough polyurethane jacket and internal water blocking materials.

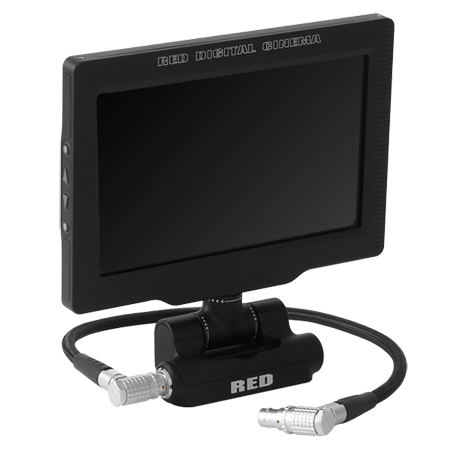

Designed for RED TOUCH 7" LCD
with access to all 4 assignable keys.
(RED SKU 730-0007)
Water Blocked Cable
has a tough polyurethane jacket. A Gates original design.
Powered by Epic
No additional batteries are needed with the RED PRO External Monitor, keeping it small and light.
2-Year Warranty
Only Gates offers a 2-year renewable warranty on all housings.
Compatibility
- RED TOUCH 7" LCD (not included)
(RED SKU 730-0007)
Contols
- Assignable x 4
Dimensions
- 9.1"W x 8.1"H x 5.1"D
- 20.5cm W x 23cm H x 13cm D
Connections
- Gates Pass Through bulkhead connector
Power
- Via connection to EPIC, Scarlet or Dragon camera
Construction
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
- Marine grade cable with polyurethane jacket and water block
Weight
- Dry: 4.5 lbs / 2.0 kg
- In Water: ~-0.5 lbs / -.23 kg
Depth Rating
- 300 feet / 92 meters
Warranty
- 2-Years Renewable
SU&C Guides
- DEEP DRAGON Setup, Use and Care Guide (includes RT7 Info)
Replacement Cable Assemblies
- Pro Action / Pro Explore: 5000-94-141 BCP ASSY, RT7 MONITOR FOR PA / PX
- DEEP WEAPON / DEEP DRAGON: 5000-93-145 BCP ASSY, RT7 MONITOR FOR DW / DD
- Standard cable length 30-36 in / 76-91 cm. Custom length available.
Starlite External Monitor Housing
(Monitor housing is included with MINI Housing. Transvideo Starlite HD5 is not included)
The Gates Starlite ST5 is specifically designed for the Transvideo Starlite SDI monitor / recorder (not included), a compact, smartphone-size 5.0” / 125mm color LCD. Accessible on the Starlite LCD via the ST5 housing are 'Smart Corners' with direct access to a variety of functions including histogram, vectorscope, waveform and peaking. The Startlite ST5 is a swivel-base mounted External Monitor for viewing, framing and focus at any angle -- even in bright sunlight. The ST5 is powered by connection to the DEEP DRAGON P-Tap, eliminating extra batteries and size.
Of course, the Starlite ST5 External Monitor housing comes with Gates 2 year renewable warranty and ‘bulletproof’ construction. Reliable, durable, dependable – the Gates hallmark since 1969.
Compact Size, Widescreen Display
5" / 125 mm widescreen display.
SDI Interface
is robust and reliable.
Assignable Button Control
Corner controls on the touch screen provide user-assignable functions.
2-Year Warranty
Only Gates offers a professional 2-year renewable warranty on all housings.
External Power
The ST5 draws power from the camera for a more compact size and no additional batteries needed.
Display
- Transvideo Starlite HD5 (not included)
- Widescreen 5 .0 inch / 125 mm color LCD
- 1280 x 720 resolution
Controls
- Power
- Assignable x4
Dimensions
- 6.6" W x 5.5" D x 4.1" H (including shade & swivel mount)
- 16.7cm W x 14cm D x 10.4cm H
Input Formats
- HD-SDI / 3G-SDI
- Frame rates: 24P, 25p, 30p, 50i, 60i
Material
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
Weight
- Dry: 3.75 lbs / 1.60 kg (w/batteries)
- In Water: 6 oz / 170 g negative
Depth Rating
- 250 feet / 76 meters
Warranty
- 2-Years Renewable
Cable / Connections
- Marine-grade multi conductor cable
- Gates Pass Through bulkhead connector
Power / Run Time
- N/A -- power is received from camera
SU&C Guides
Replacement Cables
- 5000-94-080 CABLE ASSY, STARLITE, HDSDI-PWR (For all compatible housings except DEEP WEAPON / DEEP DRAGON)
- Standard Cable Length 31 in / 79 cm. Custom length available.
Port Options
The best camera in the world can't make up for poor optics. Poor optical design and materials introduce ‘image killers’ – distortions, aberrations, degraded resolution, or vignetting. Gates family of Precision Ports are sharp and clear: the finest optics for the finest underwater images. No image killers. Professional to amateur, super wide to macro, Gates Precision Ports suit a wide range of needs, conditions and experience. Of course all ports are backed by our legendary customer support and the same standard of excellence expected of all Gates products.
Pro Explore Port Options System Chart
60-Series Ports Compatible with Pro Action Housing
FP60 Flat Port
A simple, versatile port option for macro work or lenses that don't perform well with a dome port.
Versatile
The FP80 supports a wide range of lenses for medium to macro imaging.
Acrylic (Perspex) Element
a practical material for field use, minor scratches can be polished out.
Compact Size
Fits perfectly with the Pro Action sleek profile.
Field Replaceable
The FP80 element is user-changeable in the field.
Material
- Optical grade Acrylic / Perspex (standard)
Element Diameter / Clear Aperture:
- 5.6in / 142 mm Ø
Depth Rating
- 150 ft / 45m
Optical Notes
- Flat ports reduce Field of View (FOV) 20% underwater.
SP60-6 Dome Port
The SP60-6 is a 6in / 152 mm spherical dome port that preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging. Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable.
Versatile
For medium to wide and fisheye imaging, the SP60-6 supports a wide variety of lenses
AR Coated Glass
The SP60-6 is available with either Acrylic / Perspex dome or BK7 Anti-Reflective (AR) coated glass domes.
Field Serviceable
Field Serviceable and replaceable dome (acrylic / Perspex only)
Material Options
- Acrylic / Perspex
- Anti-Reflective (AR) coated BK7 glass
Element Diameter / Clear Aperture
- 5.6in / 142 mm Ø
Dome Spherical Diameter
- 6 in / 15mm
Depth Rating
- 150 ft/ 45 m
80-Series Ports Compatible with Pro Action Housing
FP80 Flat Port
Due to its larger front element, the FP80 supports a variety of medium to macro lenses – including external zooms. A simple, versatile port option. Both Acrylic (Perspex) and Glass versions available.
Versatile
The FP80 supports a wide range of lenses for medium to macro imaging.
AR Coated Glass
BK7 glass element with Anti Reflective (AR) coating is optional.
Shade
Shade choices include W075 (standard) and Macro (optional)
Field Replaceable
The FP80 element is user-changeable in the field.
Material
- Optical grade Acrylic / Perspex (standard)
- Anti-reflective (AR) coated BK7 glass (optional)
Element Diameter / Clear Aperture:
- 7.4in / 189mm
Shades
- W075 (standard)
- Macro (optional)
Depth Rating
- 450ft / 137m
Optical Notes
- Flat ports reduce Field of View (FOV) 20% underwater.
SP80-8 Dome Port
The SP80-8 is an 8in / 203mm spherical dome port that preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging. Medium to macro, too, when paired with compatible macro zoom lenses. Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable.
Versatile
For medium to wide and fisheye imaging, the SP80-8 supports a wide variety of lenses
AR Coated Glass
The SP80-8 is available with either Acrylic / Perspex dome or BK7 Anti-Reflective (AR) coated glass domes.
Field Serviceable
Field Serviceable and replaceable dome (acrylic / Perspex only)
Material Options
- Acrylic / Perspex
- Anti-Reflective (AR) coated BK7 glass
Element Diameter / Clear Aperture
- 7.5in / 190mm
Dome Spherical Diameter
- 8in / 203mm
Depth Rating
- 450ft / 137m
SP80-10 Dome Port
The SP80-10 is a 10in / 254mm spherical dome port that, like it's smaller SP80-8 sibling preserves field of view (FOV) underwater for wide to fisheye imaging. The SP80-10 however, exhibits superior compatibility with rectilinear lenses, mitigating the soft corners classically found with dome ports in general. This particularly beneficial with certain cinema PL mount glass like Arri Master Primes and Ultra Primes.
The SP80-10 is available in Anti-Reflective (AR) coated glass only.
Superior Rectilinear Compatibility
For medium to wide and fisheye imaging, the SP80-10 excels at rectilniear imaging, particularly with PL mount cinema lenses.
AR Coated Glass
The SP80-10 is made of optically pure BK7 Anti-Reflective (AR) coated glass domes.
Versatile
The SP80-10 is compatible with hundreds of lenses. See Gates Compatibility Reference.
Material Options
- Anti-Reflective (AR) coated BK7 glass
Element Diameter / Clear Aperture
- 7.5in / 190mm
Dome Spherical Diameter
- 10in / 254mm
Depth Rating
- 450ft / 137m
Specialized Port / Adapters

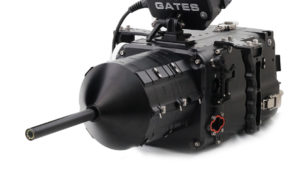

MLA60 Macro Probe Lens Adapter

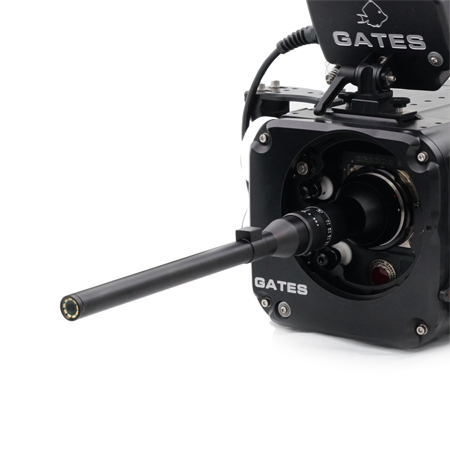

In collaboration with Venus Optics, the Gates MLA60 Probe Lens Adapter allows full submersion of the Laowa 24mm Macro Probe lens for truly unique macro imaging perspective. A long, tubular barrel with tiny lens tip can extend into the smallest of spaces, yet provide a remarkable 84° FOV, 2:1 magnification, and infinity focus. Further, the Laowa 24mm Macro covers full frame *and* larger sensors like RED Monstro from a standard Canon or Nikon mount.
Learn more about the MLA60 Macro Probe Lens Adapter
Unique 'Goby-Eye' Perspective
The Laowa 24mm Macro Probe lens offer remarkable 2:1 Magnification, wide 84° at the tiny lens tip and infinity focus.
Full Housing Integration
The MLA60 directly adapts iris / focus functions to the housing controls. Optional LED ring light power cable with on/off switching.
7in / 178mm probe extension
Collaboration with Venus Optics allows for full submersion of the 24mm Macro Probe while retaining generous barrel extension.
Required Components
- Laowa 24mm Macro Probe lens
- Full set of SPR60 Stackable Port Rings
MLA60 Construction
- Anodized Aluminum
- Stainless Steel
- ABS Polymer gears (3D Printed)
Weight, Packing
- 1.3 lbs / 0.6 kg
Depth Rating
- 100 feet / 30 m
Warranty
- 2 Years . Gates Warranty Details.
- Laowa lens covered by separate warranty. Contact Venus optics for details.
MLA60 / Laowa 24mm Macro Probe test footage courtesy of Jeff Hester / Diatom Studios
Laowa Test Footage from Diatom Studios on Vimeo.
Custom Ports
Custom Port
Gates Precision Ports extend to custom designs for specific applications like underwater UV imaging or Corrective Optics (CO) that adapt a specific lens for underwater imaging, and eliminating distortions / aberrations. Contact Gates to discuss your particular application.
Included Accessories
Seal Check Lite
The Gates Seal Check Lite is included with every DEEP DRAGON and assures housing integrity before entering the water. A mere 11oz / 320g it packs easy and travels lightly.
RT47 External Monitor Housing
Mounted atop Pro Explore is the low profile RT47 External Monitor, designed specifically for the RED TOUCH 4.7" LCD. Tilt / swivel any direction for optimal viewing. Optionally use other Gates External Monitors for RED LCD's.
Spare Kit / Tool Kit
All the items needed to setup and maintain Pro Action Housing
Carry Handle
Easy grip, transport and handling.
Optional Accessories
Stackable Port Rings (SPR's)
Support a variety of PL and DSLR lenses.
BODY CAP
Need added protection for travel or harsh setup environments? This body cap bayonets into place just like SPR's and Ports.
Nikonos RS Lens Adapter Kit
Specifically designed for underwater, Nikonos RS lenses can be adapted to DEEP DRAGON. Focus and Iris are mapped to the existing housing controls. Quick bayonet lens change and lighter / smaller rig for travel.
Surface and / or Underwater Command / Control of Astera Titan Tubes, the "the ultimate LED tube for filmmakers, TV studios and any creative person." Underwater Titan Tube (UT2)
Learn more....
Cheeseplate Adapter
For mounting Pro Action Housing to anything -- pole, tripod, crane, etc.
HD-SDI / UHD-SDI Surface Feed
Need topside DP monitoring? High speed digital SDI video feed is available. 50 to over 300 feed, the link includes gold contact connectors and certified coaxial cable.
Customization
Special modifications are routine. You really can have it ‘just the way you like’.
Support
Setup, Use and Care Guides
- Gates Pro Explore Setup, Use and Care Guide
- Gates Underwater Housing General Care and Maintenance Guide
- Gates Pro Action / Pro Explore SU&C Guide ADDENDUM Nikonos RS
Port and Lens References
Surface Command / Control
General Reference
Pro Explore Housing Supported Equipment
CAMERA
Battery Options
- REDBRICK
- Blueshape BV090, BV100HD, BV150, BV180, BV100HD SPLASH
- SWIT 8172 and 8192
- PAGlink 9303, 9304, 9308, 9309
LCD Displays
RED TOUCH 4.7" LCD (SKU 760-0019)
RED PRO TOUCH 7.0" LCD (SKU 730-0025) with optional RPT7 External Monitor
DSMC2 TOUCH 7.0" ULTRA BRITE LCD (SKU 730-0026) with optional RTB7 External Monitor
RED TOUCH 7" LCD (SKU 730-0007) optional when using RT7 External Monitor
Transvideo Starlite HD5 optional when using ST5 Starlite External Monitor
Lenses
DSLR
Compact PL Mount under 102mm diameter or 128T Gear
(0.8 MOD or 32 Pitch)
CAMERA MODULES
RED Jetpack SDI Module (SKU 720-0048) *OR*
RED Jetpack Expander Module (SKU 720-0039) if not using SDI surface feed or SDI External Monitor e.g. ST5 Starlite
RED Sidekick Module (SKU 720-0032)
REDMOTE (SKU 770-0006)
