Ultra Wide Probe Zoom Marine Imaging

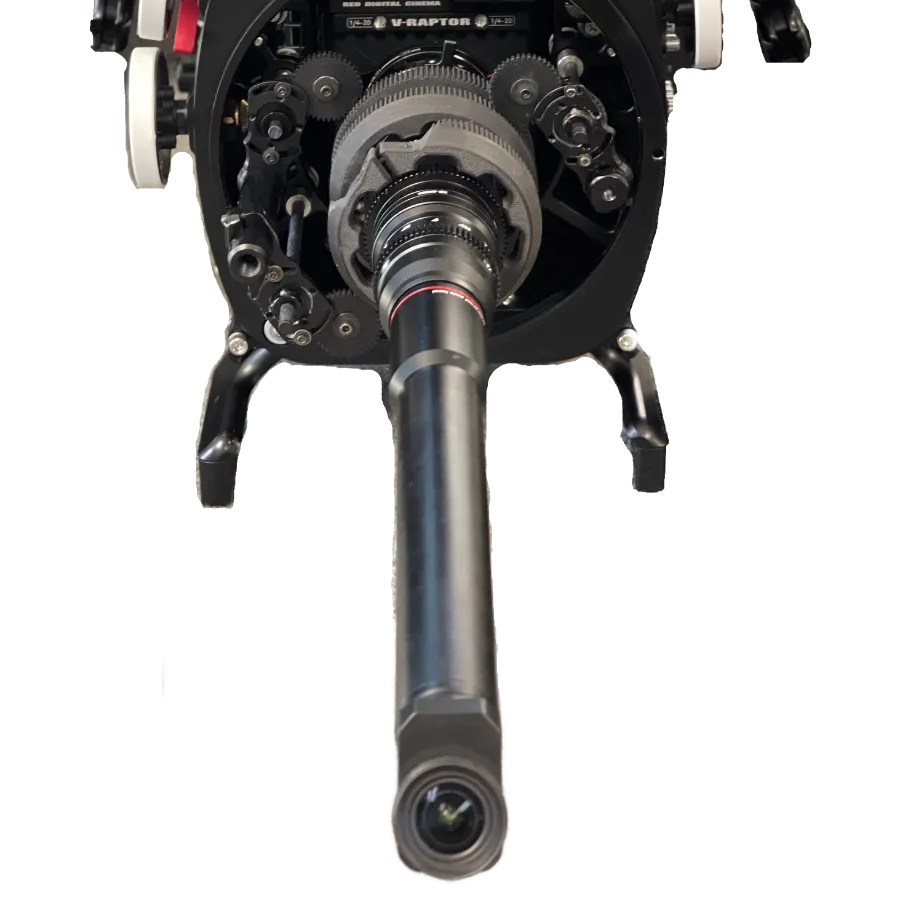

Laowa's 4th generation Probe Lens family adds two remarkable features: Ultra Wide 110.5° angle of view and an extensive 2.3X Zoom capability, the largest range on the market. In close collaboration with Venus Optics, the Gates PZA-80 adapts these remarkable lenses to our cinema-caliber underwater systems, creating a seamless underwater probe system.
The PZA-80 Adapter also supports both 15-35 T12 and 15-24 T8 Probe Zoom models with either straight, 35° or 90° barrels. This means versatile, opportunistic adaptability to varying subjects and fresh new perspectives in underwater macro imaging.
Like it's predecessors Pro2be and Periprobe, the Laowa Zoom Probe lenses are 35mm full fame, and a fast T8 iris on the 15-24 version. Truly impressive image quality is achieved with Gates cinema-caliber systems like PRO RAPTOR, ALEXA 35, and DEEP WEAPON-RAPTOR.

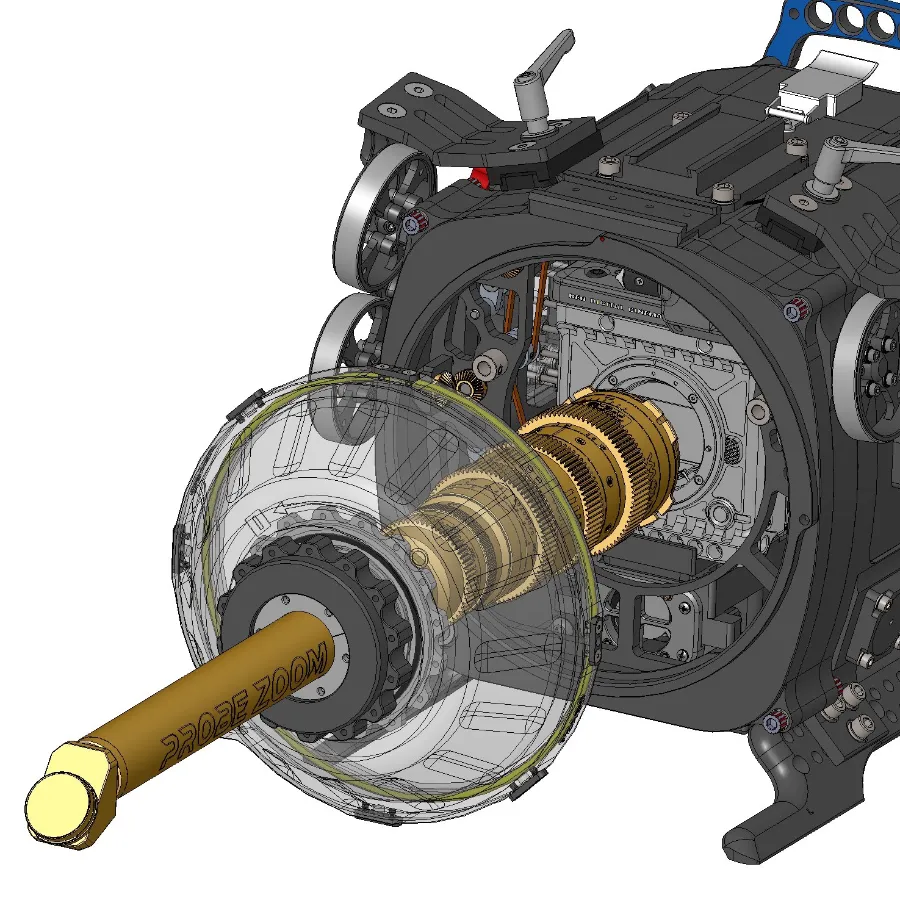

The PZA-80 kit includes a custom Stackable Port Ring Adapter with innovative sealing design around the Probe Zoom lens barrel, plus 2 custom 3D-printed adapter gears to align focus, iris and zoom with the housing controls. And as always, PZA-80 comes with Gates 2 year renewable warranty. Professionals know that failure is not an option, so they never take a chance, they take a Gates!
Gates cinema-grade systems. Contact Gates for details.
Key Features
Ultra Wide 110.5° Angle of View and 2.3X Zoom
Gates PZA-80 Adapter supports both 15-35 and 15-24 T8 versions. Flexible, Opportunistic.
Collaborative Design, Elegant Housing Integration
In collaboration with Laowa engineers, the PZA-80 blurs the lines between lens and housing. Focus / iris / zoom functions directly m ap to housing controls. 3.8" / 96mm diameter Flex Gears provide precise operation.
Long Barrel Extension 9 in / 230 mm
PZA-80 system is highly adaptable, accommodating the straight, 35° and 90° Probe Zoom lens barrels.
Reliable. Durable. Gates
Gates is synonymous with reliability and support. And only Gates offers a professional 2-year renewable warranty.
Laowa lenses are covered by separate warranty. Contact Venus Optics for details.
Specifications
Required Components
- Laowa Probe Zoom Lens
- Port Extender, Port Rings or PE/PR combination, housing dependent. Refer to PZA-80 SU&C Guide or Contact Gates
- PZA-80 Kit. Configuration is housing dependent. Contact Gates for details
PZA-80 Construction
- Anodized Aluminum
- Stainless Steel
- ABS Polymer gears (3D Printed)
Weight, packing
- PZA-80 ~3.5 lbs / 1.6 kg
Depth Rating
- 100 ft / 30 m
Warranty
- 2 Years . Gates Warranty Details.
- Laowa lens covered by separate warranty. Contact Venus optics for details.
