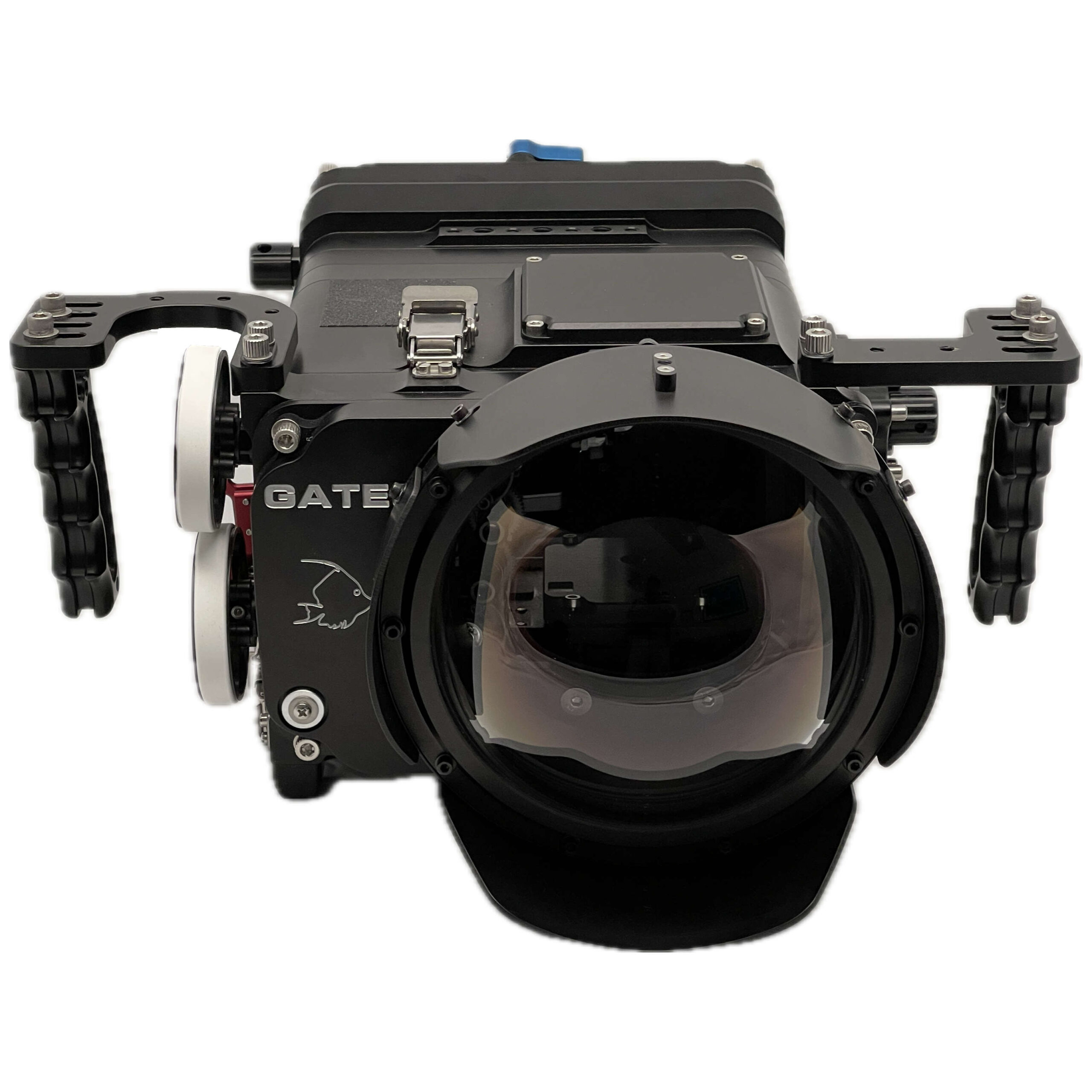

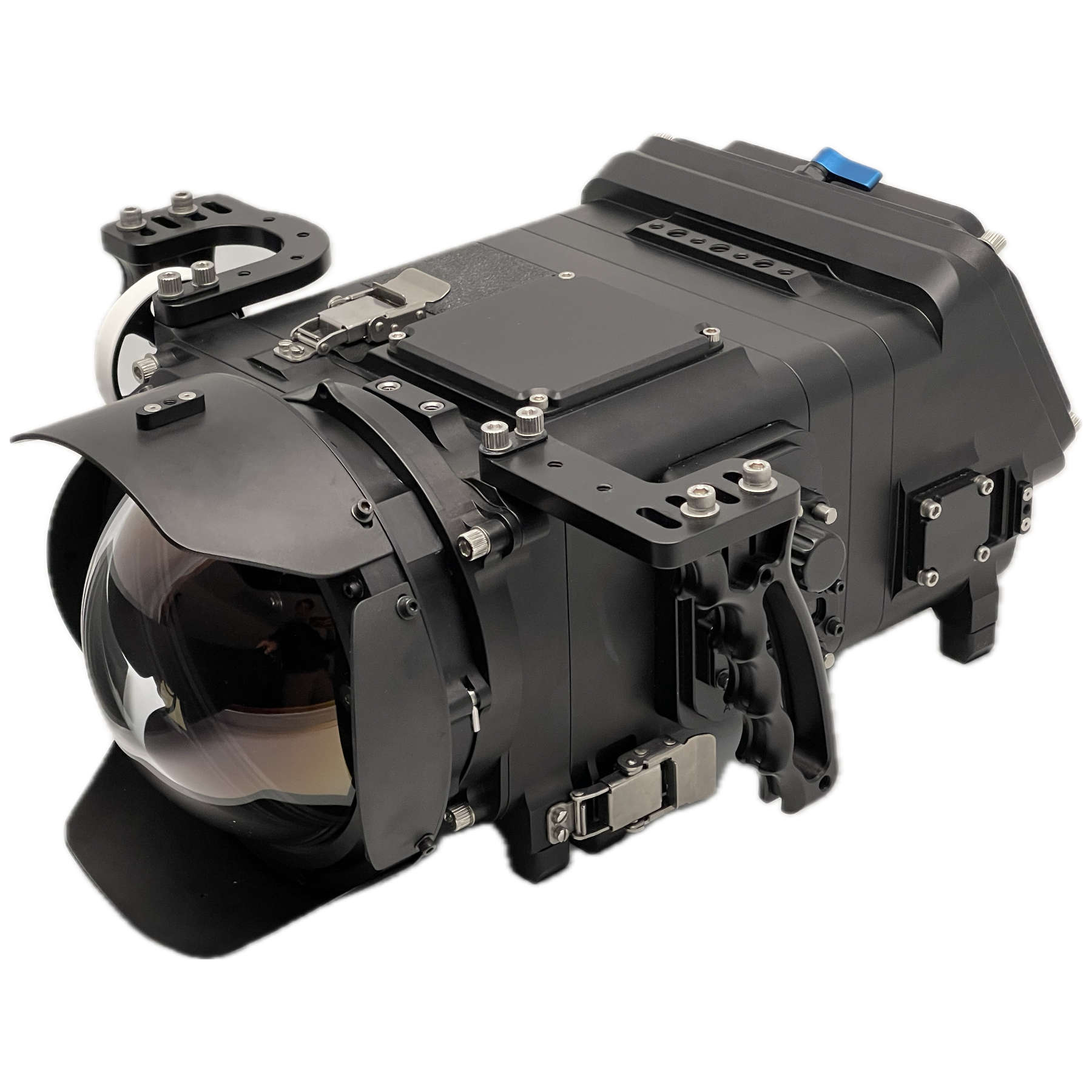

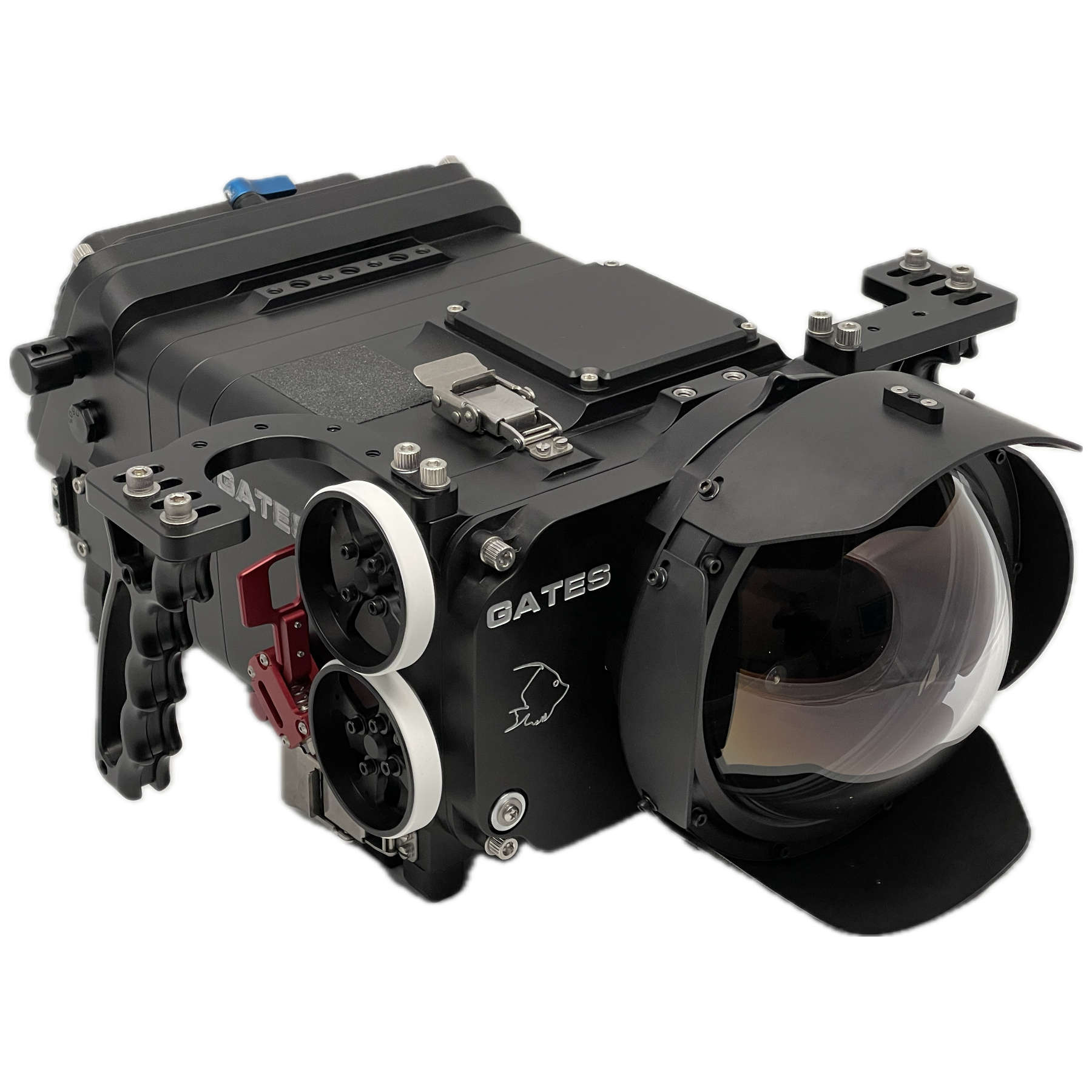

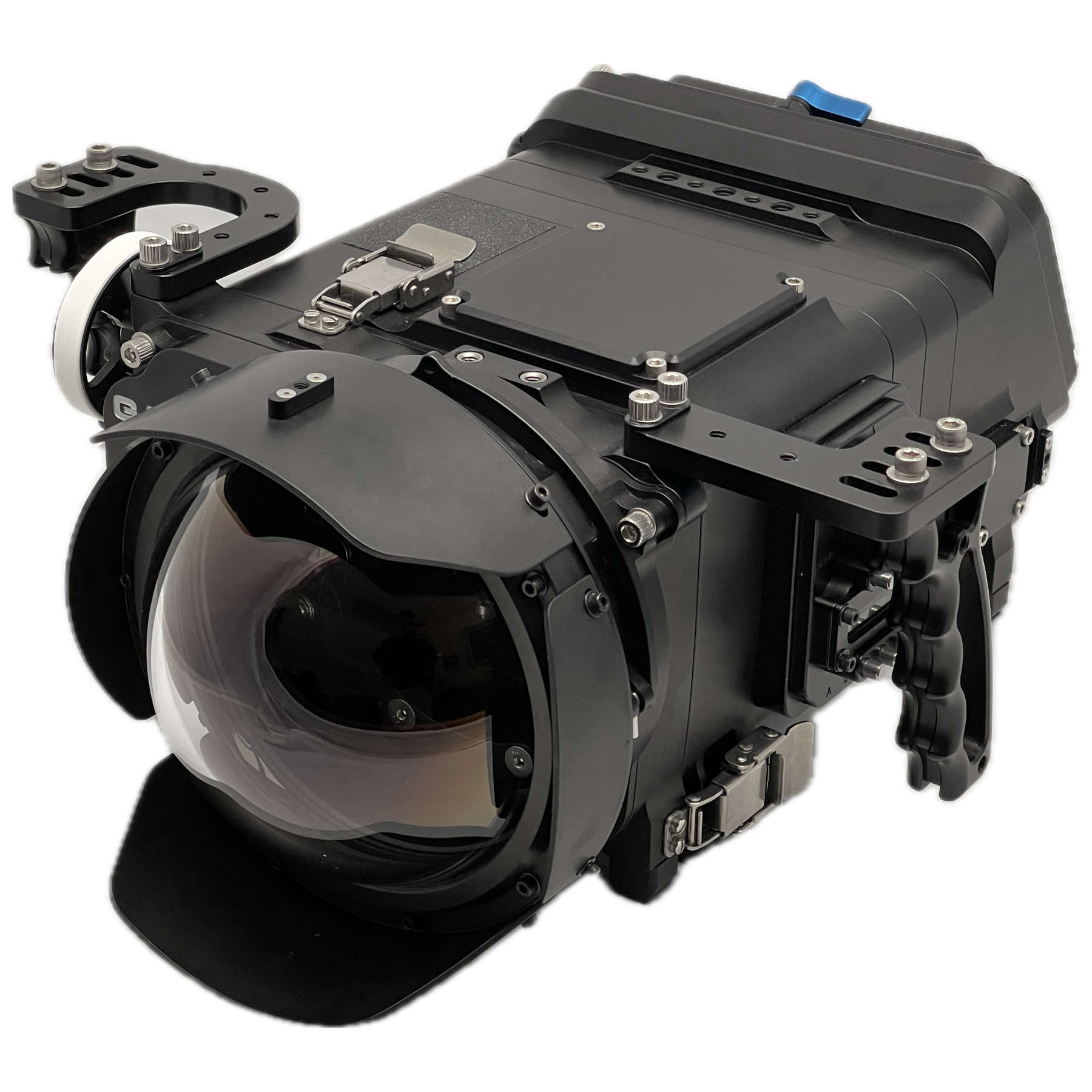

Ultra Low Light Underwater Imaging in a Compact Size
Like it's predecessor Gates ME20 Housing system, the new ML-105 is an ultra low-light underwater imaging system, capable of operating in environments nearly absent of light. Gates ML-105 Housing is designed to push the boundaries of underwater motion imaging, revealing natural bioluminescence, moonlit reefs, luminescent marine critters (like lanterneye fish), dimly lit caves and other light challenged scenes without the aid of additional, artificial lighting. Such breakthrough imaging is enabled by the Canon ML-105 camera, capable of incredible low light performance over 4 million ISO.

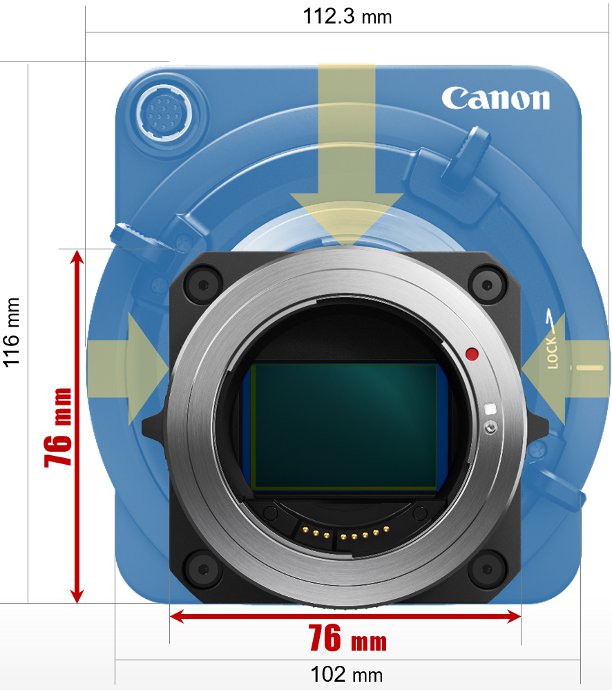

The Canon ML-105 camera is a remarkable 50% smaller than the ME20. This means a considerably smaller housing system with an integrated, rear-viewable 5.2 inch Atomos Ninja monitor / recorder. And unlike the ME20, the ML-105 Housing includes Gates GCC Command / Control module, providing direct access to camera functions.
Exploring frontiers in the underwater realm, the new Gates ME20 Housing pairs Canon ultra low light technology with Gates legendary reliability.
The seasoned professional will recognize many signature features in the Gates ML-105 Housing: precision mechanical focus / iris control of any PL or Canon EF lens; durable machined aluminum and stainless construction; clean, uncomplicated, user friendly design; Gates precision ports for clear, sharp images; extensive line of accessories and custom configurations; and Seal Check Lite for housing integrity verification. Experts know that failure is not an option, so they never take a chance…. they take a Gates!
Key Features

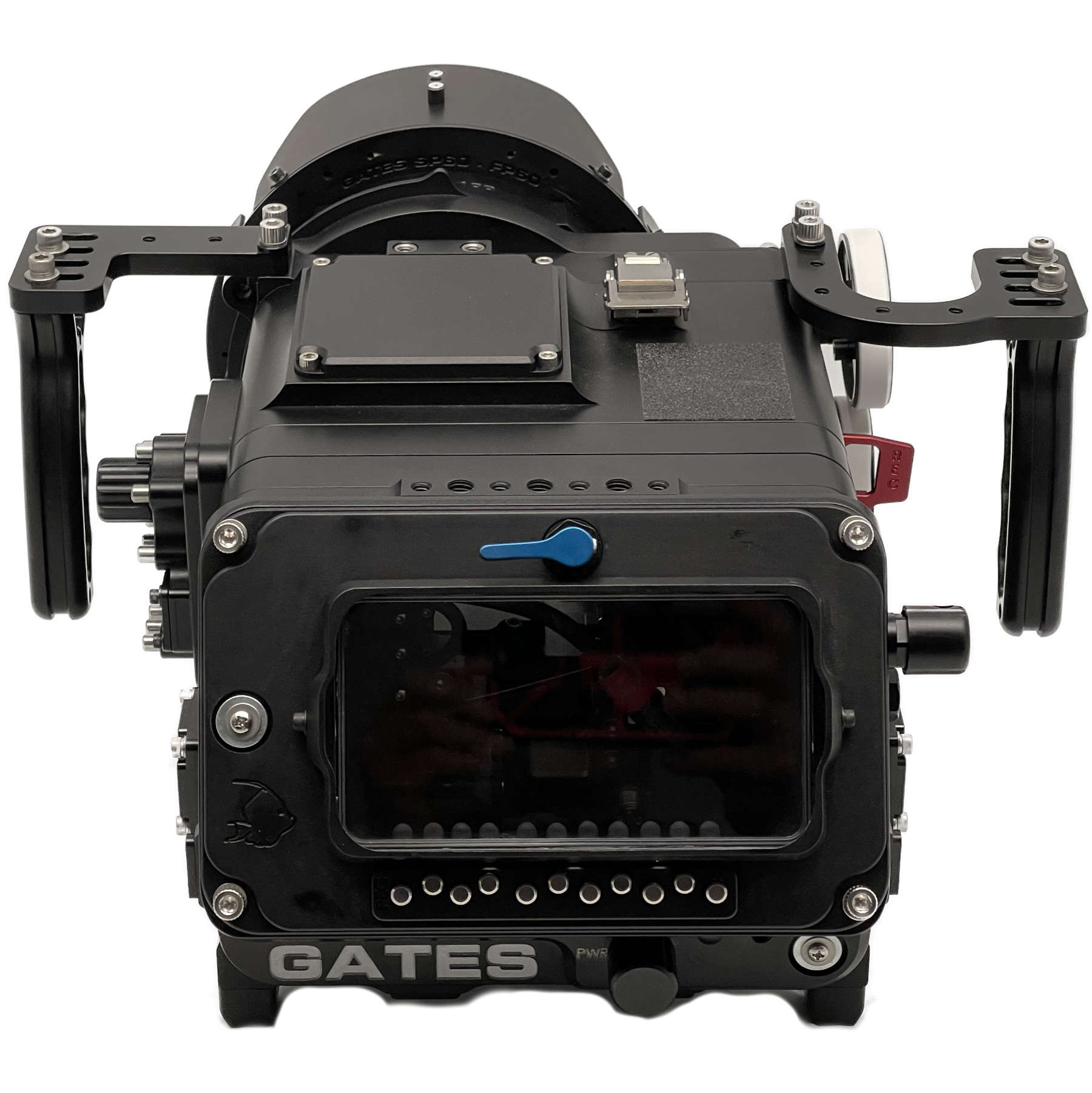

Fully Integrated Monitor / Recorder

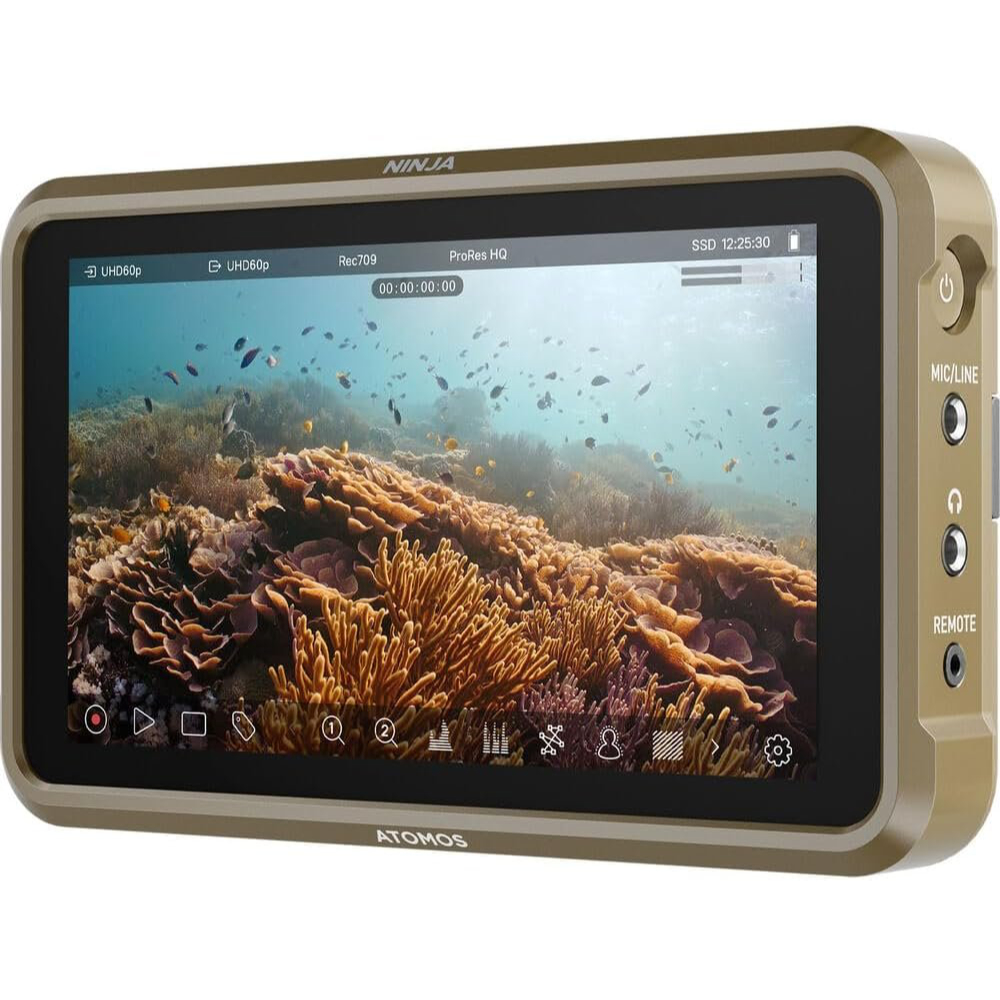

Comfortable 15° view angle and daylight-viewable, Gates ML-105 supports Atomos NINJA Monitor / Recorder.
Compact, Travelable, Lightweight.
ML-105 camera is 50% smaller than the ME20 predecessor. Which means the Gates ML-105 Housing is small and backpack-ready.
Complete COMMAND / CONTROL
Dedicated, direct connect camera control at your fingertips. Iris, ISO, shutter and more. GCC is also user update-able with feature enhancements and camera firmware changes.
Precision Ports™
ML-105 utilizes the entire Gates suite of 6, 8 and 10" dome and flat ports. AR coated glass or acrylic / perspex options.
Clean, uncomplicated design
Gates design are user friendly, reliable, and field serviceable.
Simplicity = Reliability.
External Monitor (Optional)
Need a top-mounted monitor with full swivel / tilt capability? You got it. ML-105 offers several External Monitor options.
Extensive Lens Support
ML-105 Housing accommodates a wide variety of Canon lenses, including CN-E low light primes.
Adjustable Buoyancy and Trim
Add /remove trim weights for ideal buoyancy and balance -- a key to stable, fluid shots.
Surface Command / Control (optional)
Gates ML-105 provisions for surface tether using Canon RC-V100 remote control. SDI surface video also available.
Seal Check Lite
The Gates Seal Check Lite assures housing integrity before entering the water. Know before you go.
2-Year Warranty.
Legendary factory direct support.
Gates is synonymous with reliability and support, and only Gates offers a 2-year, renewable warranty on all housings.
Customization
Have a unique application? Shooting style? Special setup needs? Gates routinely custom modifies housing to your requirements -- just the way you want it.
Specifications (Preliminary)
Controls
- Master System Power On/Off
- 2x Direct Coupled Lens Gear Drives
- Run / Stop (Switch activated, right thumb)
- Gates GCC Command / Control Module (direct, fast camera function access)
- LCD Power On/Off
Dimensions:
Construction
- Machined Aluminum, Type III Hard Anodized finish
- Stainless steel hardware
Depth Rating
- 250 feet / 76 meters
Weight in Water
- Adjustable Buoyancy / Trim
Weight in Air
- Variable depending on system setup
- ~20 lbs / 9 kg in empty transport configuration
- ~25.7 lbs / 11.7 kg with camera, 98 Whr battery, Canon 16-35 Lens, Atomos NINJA LCD / Recorder
Warranty
- 2 Years Renewable. Gates Warranty Details
Monitor Options
Gates ML-105 Housing features a built-in LCD / Recorder for Atomos Ninja / Ninja V. External Monitors are optional
Gates EM5 ULTRA Underwater Monitor Housing is a tailored, glove-fit for the SmallHD ULTRA 5 LCD, with a powerful 3000 nit HD display, visible even in the harshest daylight. The adjustable base can tilt / swivel to any position for the perfect viewing angle. An SDI interface is simple, robust, and broadly compatible with a variety of Gates Housings including RED and ARRI. Power is driven by the camera power source inside the main housing shell for long run time. And the EM5 ULTRA can be either slightly negative buoyancy or perfectly neutral with included trim float -- no 'turtling'! Of course, Gates EM5 ULTRA Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years. 5" / 125 mm widescreen display is a brilliant 3000 nits HDR illumination. with a tough polyurethane jacket is "bulletproof". are programmable, and easily accessible next to the shaded LCD. Only Gates offers a professional 2-year renewable warranty on all housings. Adjust EM5 ULTRA for the perfect viewing angle. A true professional touch. Neutrally buoyant design means no fighting a rig that wants to flip over. EM5 ULTRA Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ALEXA 35 ARRI ALEXA DEEP WEAPON - RAPTOR FLEX4K
Super Bright 3000 nit Widescreen HD Display
Rugged, Water Blocked Cable
F1 / F2 / F3 Controls
2-Year Warranty
Tilt / Swivel base mount
No 'Turtling'
Display
Controls
Dimensions
Input Format
Material
Weight
Depth Rating
Warranty
Cable / Connectors
Power Source / Run Time
Mini/ Mini LF / ALEXA 35 / ALEXA / FLEX4K Housings
DEEP WEAPON / DEEP RAPTOR Housing
Housings using Gates MultiConn (GMC) bulkhead connector system
Gates EM7 CINE Underwater Monitor Housing is a bespoke, glove-fit for the SmallHD CINE 7 LCD, offering a vivid 1800 nit 1900x1200 resolution display, visible even the bright daylight of shallow tropical waters. As with all Gates External Monitors, its adjustable base can tilt / swivel to any position for the perfect viewing angle. Simple, robust SDI interface that is broadly compatible with a variety of Gates Housings for RED, ARRI, and Sony. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from the main camera housing shell. For the perfect trim, EM7 CINE can be either slightly negative or perfectly neutral buoyancy with included trim float -- no 'turtling'! Of course, Gates EM7 CINE Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years. SmallHD CINE 7 LCD is a big 7" / 178 mm 1920 x 1200 display with brilliant HDR illumination. with a tough polyurethane jacket is "bulletproof". Power can be either 2x Sony L-Series batteries (mounted to CINE 7 LCD) or from the main housing system. Only Gates offers a professional 2-year renewable warranty on all housings. Adjust EM7 CINE for the perfect viewing angle. A true professional touch. Neutrally buoyant design means no fighting a rig that wants to flip over. EM7 CINE Underwater Monitor Housing
Compatible Housings: GATES IMMERSIVE HOUSING DEEP WEAPON - RAPTOR
ARRI ALEXA MINI / MINI LF ALEXA 35 ARRI ALEXA FLEX4K
Easy-to-see Daylight Bright 1800 nit Display
Rugged, Water Blocked Cable
Dual Power Options
2-Year Warranty
Tilt / Swivel base mount
No 'Turtling'
Display
Controls
Dimensions
Input Format
Material
Weight
Depth Rating
Warranty
Cable / Connectors
Power Source / Run Time
Gates Immersive Housing
Mini/ Mini LF / ALEXA 35 / ALEXA / FLEX4K Housings
DEEP WEAPON / DEEP RAPTOR Housing
Housings using Gates MultiConn (GMC) bulkhead connector system
Tailored to the SmallHD 503 Ultrabright LCD, the Gates EM503 Underwater Monitor Housing is a brilliant 2200 nits, visible even in harsh daylight. Dedicated Power / F1 / F2 buttons are readily accessible next to the shaded 5" display, and the adjustable base can tilt / swivel to any position for the perfect viewing angle. SDI means simple, robust interface and broadly compatible with a variety of Gates Housings. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from inside the main housing shell. Both versions can be neutrally buoyant with included trim floats -- no 'turtling'! Of course, Gates EM503 Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years. 5" / 125 mm widescreen display is a brilliant 2200 nits HDR illumination. with a tough polyurethane jacket is "bulletproof". are easibly accessible next to the shaded LCD. Only Gates offers a professional 2-year renewable warranty on all housings. adjust EM503 for the perfect viewing angle. A true professional touch. Neutrally buoyant design means no fighting a rig that wants to flip over. EM503 Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ARRI ALEXA DEEP WEAPON - RAPTOR FLEX4K
Super Bright, Widescreen Display
Rugged, Water Blocked Cable
Power / F1 / F2 Controls
2-Year Warranty
Tilt / Swivel base mount
No 'Turtling'
Display
Controls
Dimensions
Input Format
Material
Weight
Depth Rating
Warranty
Cable / Connectors
Power Source / Run Time
Run time more than 4 hours.Mini/ Mini LF / ALEXA / FLEX4K Housings
DEEP WEAPON / DEEP RAPTOR Housing
Housings using Gates MultiConn (GMC) bulkhead connector system
The Gates Starlite ST5 is specifically designed for the Transvideo Starlite SDI monitor / recorder (not included), a compact, smartphone-size 5.0” / 125mm color LCD. Accessible on the Starlite LCD via the ST5 housing are 'Smart Corners' with direct access to a variety of functions including histogram, vectorscope, waveform and peaking. The Startlite ST5 is a swivel-base mounted Underwater Monitor for viewing, framing and focus at any angle -- even in bright sunlight. The ST5 draws power from the camera or v-lock battery, preserving a low profile to the housing and eliminating extra batteries. Of course, the Starlite ST5 External Monitor housing comes with Gates 2 year renewable warranty and ‘bulletproof’ construction. Reliable, durable, dependable – the Gates hallmark since 1969. 5" / 125 mm widescreen display. is robust and reliable. Corner controls on the touch screen provide user-assignable functions. Only Gates offers a professional 2-year renewable warranty on all housings. The ST5 draws power from the camera for a more compact size and no additional batteries needed. Starlite ST5 Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ARRI ALEXA DEEP WEAPON DEEP DRAGON
Compact Size, Widescreen Display
SDI Interface
Assignable Button Control
2-Year Warranty
External Power
Display
Controls
Dimensions
Input Formats
Material
Weight
Depth Rating
Warranty
Cable / Connections
Power / Run Time
SU&C Guides
Replacement Cables
1000 nits bright LCD. 4K/60P recording in ProRes RAW. Extensive focus / exposure tools. All in a compact, neutrally buoyant package. That's the Gates NVS External Monitor Housing. Designed specifically for the Atomos NINJA V, SHINOBI and SHINOBI SDI, Gates NVS Underwater Monitor Housing accommodates all three with field-configurable changes. Touch screen buttons are readily accessible below the shaded 5" display, and the mounting base will tilt / swivel to any position for the perfect viewing angle. Battery powered or driven by the camera v-lock (SHINOBI SDI only), NVS preserves a streamlined, low profile to the housing for minimal water resistance. Of course, Gates NVS Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years. 5" / 125 mm widescreen display is a bright 1000 nits. are all supported via field-configurable changes. Contact us for details. are easibly accessible below the shaded LCD. Only Gates offers a professional 2-year renewable warranty on all housings. adjust NVS for the perfect viewing angle. A true professional touch. Neutrally buoyant design means no fighting a rig that wants to flip over. NVS Underwater Monitor Housing
Compatible Housings: ARRI ALEXA MINI / MINI LF ARRI ALEXA DEEP WEAPON-RAPTOR SONY Z90
Compact Size, Widescreen Display
ATOMOS NINJA V, SHINOBI and SHINOBI SDI LCD's
Touch screen controls
2-Year Warranty
Tilt / Swivel base mount
No 'Turtling'
Display
Controls
Dimensions
Input Formats
Material
Weight
Depth Rating
Warranty
Cable / Connections
Power / Run Time
Mini/ Mini LF / ALEXA / FLEX4K Housings
Standard cable length (Housing to Monitor): 24-28 in / 61-71 cm. Custom length available. Mini/ Mini LF / ALEXA / FLEX4K Housings
Standard cable length (Housing to Monitor): 16-18 in / 41-46 cm. Custom length available. Z90 Housing (for Sony PXW-Z90 Camera)
Standard cable length (Housing to Monitor): 25-28 in / 63-71 cm. Custom length available. DEEP WEAPON Housing
Standard cable length (Housing to Monitor): 25-28 in / 63-71 cm. Custom length available. AX700 / Z90 Housing (for Sony FDR-AX700 or PXW-Z90 Camera)
Standard cable length (Housing to Monitor): 30-36 in / 76-91 cm. Custom length available.
Port Options
The best camera in the world can't make up for poor optics. Poor optical design and materials introduce ‘image killers’ – distortions, aberrations, degraded resolution, or vignetting. Gates family of Precision Ports are sharp and clear: the finest optics for the finest underwater images. No image killers. Professional to amateur, super wide to macro, Gates Precision Ports suit a wide range of needs, conditions and experience. Of course all ports are backed by our legendary customer support and the same standard of excellence expected of all Gates products.
60-Series Ports
The SP60-6 is a 6in / 152 mm spherical dome port that preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging. Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable. For medium to wide and fisheye imaging, the SP60-6 supports a wide variety of lenses The SP60-6 is available with either Acrylic / Perspex dome or BK7 Anti-Reflective (AR) coated glass domes. Field Serviceable and replaceable dome (acrylic / Perspex only)
SP60-6 Dome Port
Versatile
AR Coated Glass
Field Serviceable
Material Options
Element Diameter / Clear Aperture
Dome Spherical Diameter
Depth Rating
A simple, versatile port option for macro work or lenses that don't perform well with a dome port. The FP80 supports a wide range of lenses for medium to macro imaging. a practical material for field use, minor scratches can be polished out. Fits perfectly with the Pro Action sleek profile. The FP80 element is user-changeable in the field.
FP60 Flat Port
Versatile
Acrylic (Perspex) Element
Compact Size
Field Replaceable
Material
Element Diameter / Clear Aperture:
Depth Rating
Optical Notes
80-Series Ports
Due to its larger front element, the FP80 supports a variety of medium to macro lenses – including external zooms. A simple, versatile port option. Both Acrylic (Perspex) and Glass versions available. The FP80 supports a wide range of lenses for medium to macro imaging. BK7 glass element with Anti Reflective (AR) coating is optional. Shade choices include W075 (standard) and Macro (optional) The FP80 element is user-changeable in the field.FP80 Flat Port
Versatile
AR Coated Glass
Shade
Field Replaceable
Material
Element Diameter / Clear Aperture:
Shades
Depth Rating
Optical Notes
The SP80 preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging. Medium to macro, too, when paired with a macro zoom lens. Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable. For medium to wide and fisheye imaging, the SP80 supports a wide variety of lenses The SP80 is available with either Acrylic / Perspex dome or BK7 Anti-Reflective (AR) coated glass domes. Field Serviceable and replaceable dome (acrylic / Perspex only)SP80 Standard (Dome) Port
Versatile
AR Coated Glass
Field Serviceable
Material Options
Element Diameter / Clear Aperture
Dome Spherical Diameter
Depth Rating
The SP80-10 is a 10in / 254mm spherical dome port that, like it's smaller SP80-8 sibling preserves field of view (FOV) underwater for wide to fisheye imaging. The SP80-10 however, exhibits superior compatibility with rectilinear lenses, mitigating the soft corners classically found with dome ports in general. This particularly beneficial with certain cinema PL mount glass like Arri Master Primes and Ultra Primes. The SP80-10 is available in Anti-Reflective (AR) coated glass only. For medium to wide and fisheye imaging, the SP80-10 excels at rectilniear imaging, particularly with PL mount cinema lenses. The SP80-10 is made of optically pure BK7 Anti-Reflective (AR) coated glass domes. The SP80-10 is compatible with hundreds of lenses. Click the link above to Gate Lens Compatibility Reference.
SP80-10 Dome Port
Superior Rectilinear Compatibility
AR Coated Glass
Versatile
Material Options
Element Diameter / Clear Aperture
Dome Spherical Diameter
Depth Rating
Specialized Port / Adapters
In collaboration with Venus Optics, the Gates MLA60 Probe Lens Adapter allows full submersion of the Laowa 24mm Macro Probe lens for truly unique macro imaging perspective. A long, tubular barrel with tiny lens tip can extend into the smallest of spaces, yet provide a remarkable 84° FOV, 2:1 magnification, and infinity focus. Further, the Laowa 24mm Macro covers full frame *and* larger sensors like RED Monstro from a standard Canon or Nikon mount. Learn more about the MLA60 Macro Probe Lens Adapter The Laowa 24mm Macro Probe lens offer remarkable 2:1 Magnification, wide 84° at the tiny lens tip and infinity focus. The MLA60 directly adapts iris / focus functions to the housing controls. Optional LED ring light power cable with on/off switching. Collaboration with Venus Optics allows for full submersion of the 24mm Macro Probe while retaining generous barrel extension. MLA60 / Laowa 24mm Macro Probe test footage courtesy of Jeff Hester / Diatom Studios Laowa Test Footage from Diatom Studios on Vimeo.
MLA60 Macro Probe Lens Adapter
Unique 'Goby-Eye' Perspective
Full Housing Integration
7in / 178mm probe extension
Required Components
MLA60 Construction
Weight, Packing
Depth Rating
Warranty
Custom Ports
Custom Port Designs
Gates Precision Ports extend to custom designs for specific applications like underwater UV imaging or Corrective Optics (CO) that adapt a specific lens for underwater imaging, and eliminating distortions / aberrations. Contact Gates to discuss your particular application.
Included Accessories
Seal Check Lite
The Gates Seal Check Lite is included with every ML-105 Housing, and assures housing integrity before entering the water. A mere 11oz / 320g it packs easy and travels lightly.
Carry Handle
Easy grip, transport and handling.
Spare Kit / Tool Kit
All the items needed to setup and maintain ML-105 Housing
2-Year Warranty.
Legendary factory direct support.
Like any other valuable accessory, Gates 2-year renewable warranty and unparalleled support are part of the ML-105 kit.
Optional Accessories
Monitor Shades and Stackable Extensions
Block out unwanted light with 2in / 5cm Shade and / or stacking 1.6in / 4cm Shade Extensions.
Surface Command / Control
Need topside authority? Gates ML-105 provisions for:
* SDI Video Feed
* Camera Control w/ Canon RC-V100 Remote
External Monitor
Really want a top-mounted monitor with full swivel / tilt capability? You got it. The Gates NVS External Monitor, which accepts the same ATOMOS SHINOBI SDI LCD used in ML-105.
Water Alarm
An extra measure beyond Seal Check, the Gates Water Alarm provides both visible and audible warnings. The siren is coupled directly to the housing shell and resonates directly to the water, rendering it unmistakable.
Easy Grip Lens Control
A big, fat grippy knob extension makes fine lens control easy, especially with thick dive gloves.
Body Cap
Need added protection for travel or harsh setup environments? This body cap bayonets into place just like SPR's and Ports.
Customization
Special modifications are routine. You really can have it ‘just the way you like’.
Stackable Port Rings (SPR's)
Using lengthy lenses? SPR's come in 0.6 / 1.0 / 1.5 / 2.0 / 4.0 sizes for optimal port positioning.
Support
Setup, Use and Care Guides
Port and Lens References
GCC FIRMWARE UPDATE
ATOMOS NINJA FIRMWARE
- As of May 2024, NINJA beta firmware release 11.06.00b0 is required to enable SDI Record Trigger
- Download here: Atomos NINJA beta firmware 11.06.00b0
- Follow instructions per Atomos Instructions.
Other Reference
ML-105 Housing Supported Equipment
CAMERA
Canon ML-105
Monitor / Recorder
- Atomos NINJA or NINJA V
- Atomos ATOMX SDI Expansion Module
- Atomos ATOMOS Battery Eliminator
Batteries - Micro V-Lock
Compatible
- RED
- CORE SWX
- bebob
- Hawkwoods
- SWIT
- IDX
Incompatible
- SWIT
- MINO-S210
- IDX
- Imicro-150
- bebob
- V150MICRO
Lenses
- Canon EF Mount Lenses
- Max Lens Envelope:
- SPR60 Port Rings
- Max lens overall OD: 5.6 in / 142mm
- Max lens gear OD: 4.25 in / 108 mm / 136 Teeth
- Min lens gear OD: 3.1 in / 79 mm / 100 Teeth
- SPR80 or PR80 Port Rings
- Max lens overall OD: 7.5 in / 190mm
- Max / Min gear OD: same as above.
- SPR60 Port Rings
