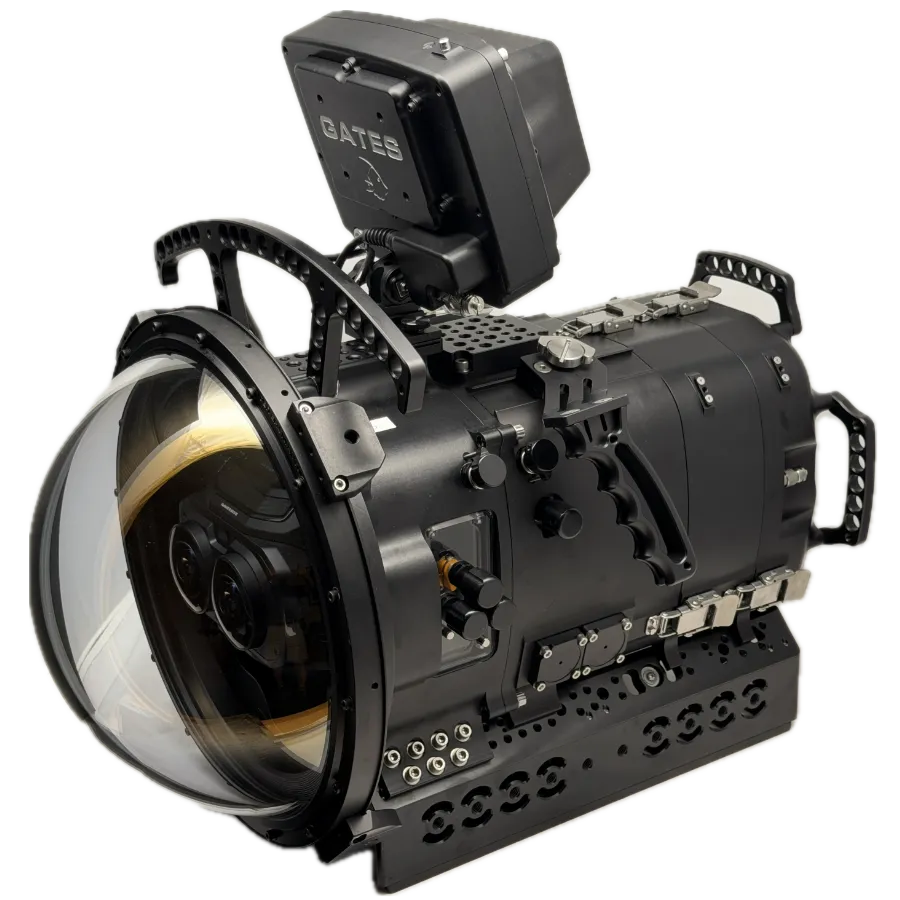

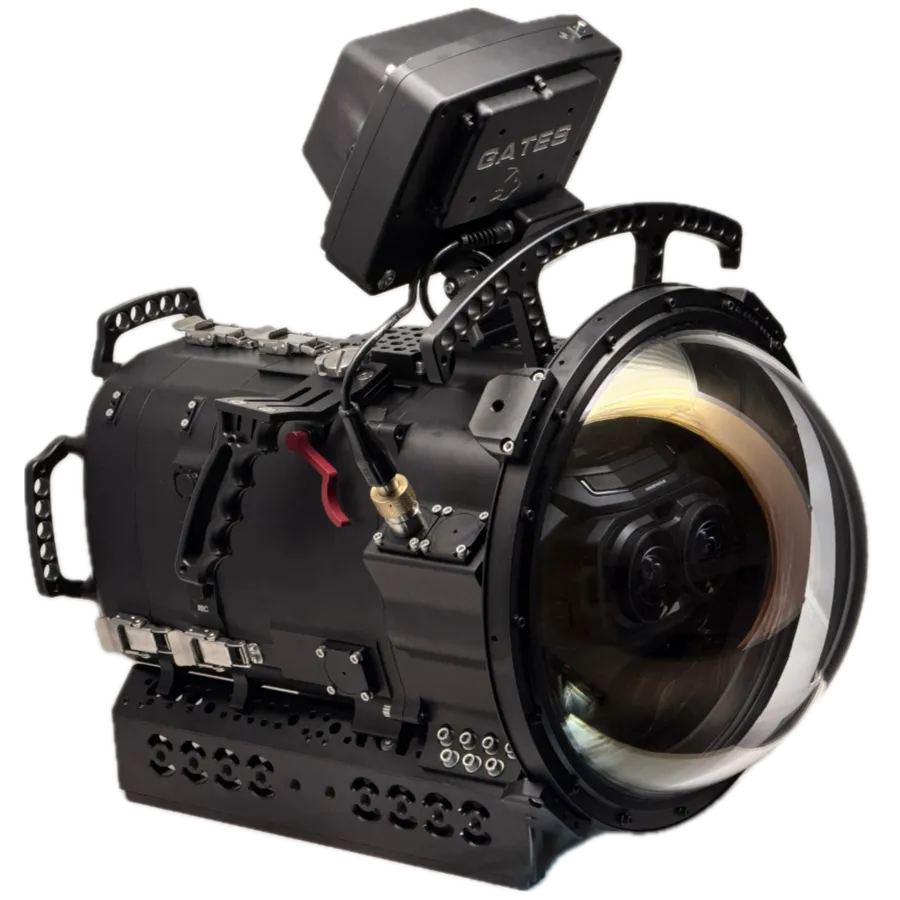

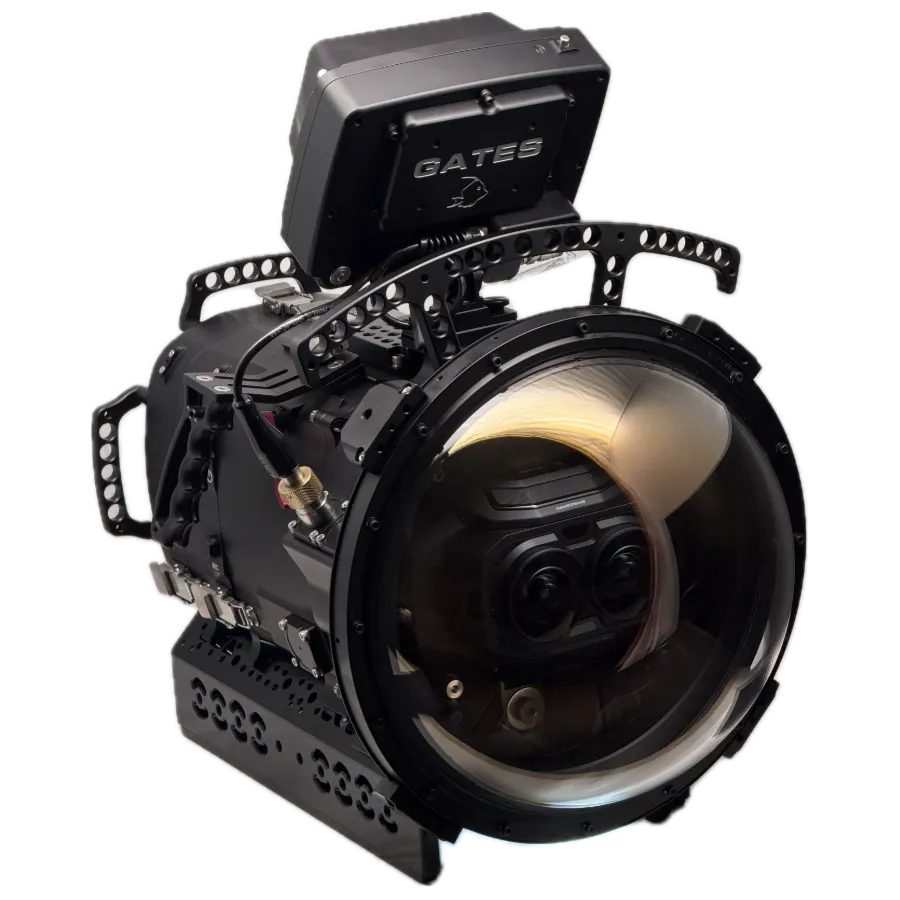

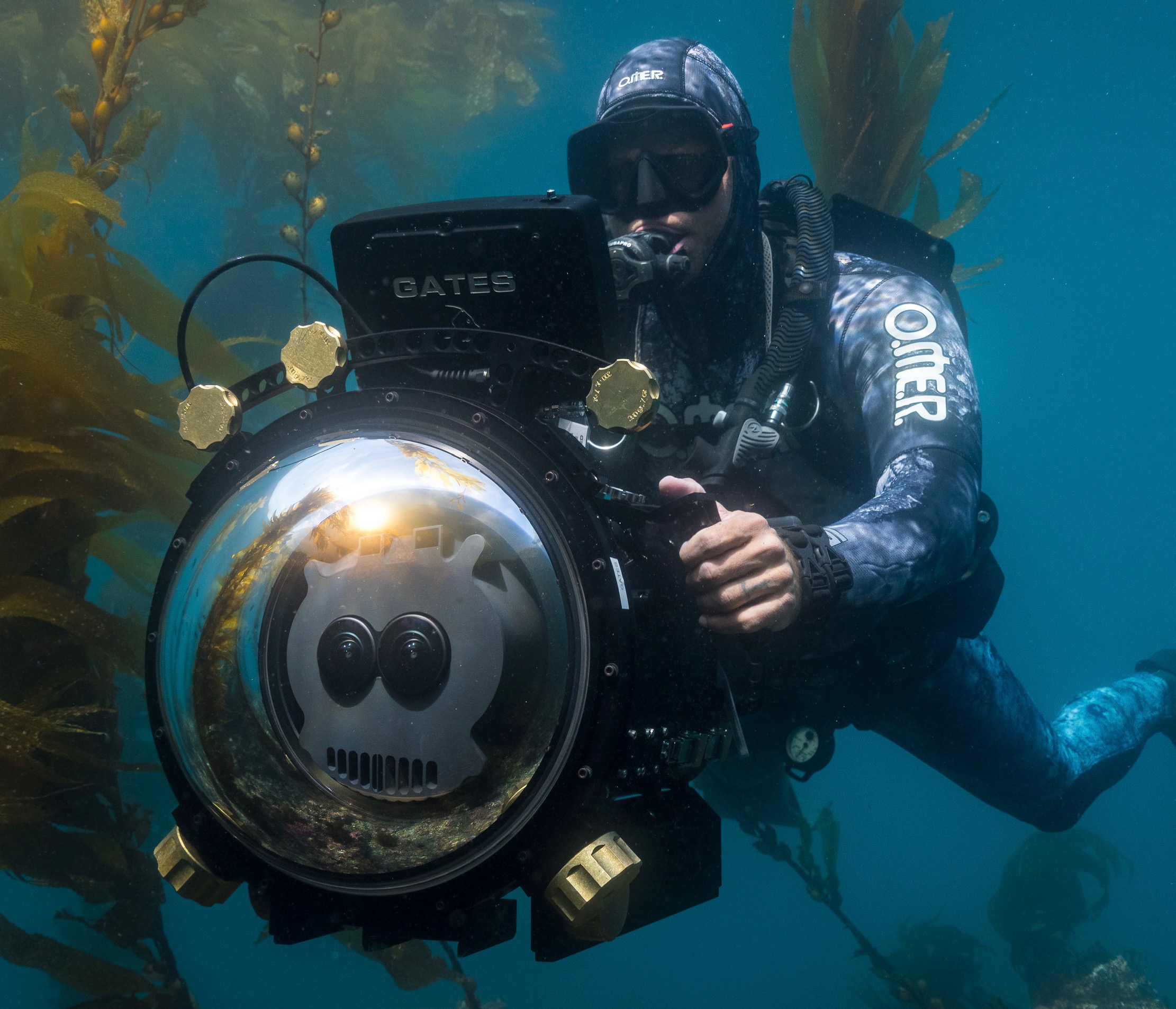

Gates Immersive Housing opens the underwater world to Apple Vision Pro

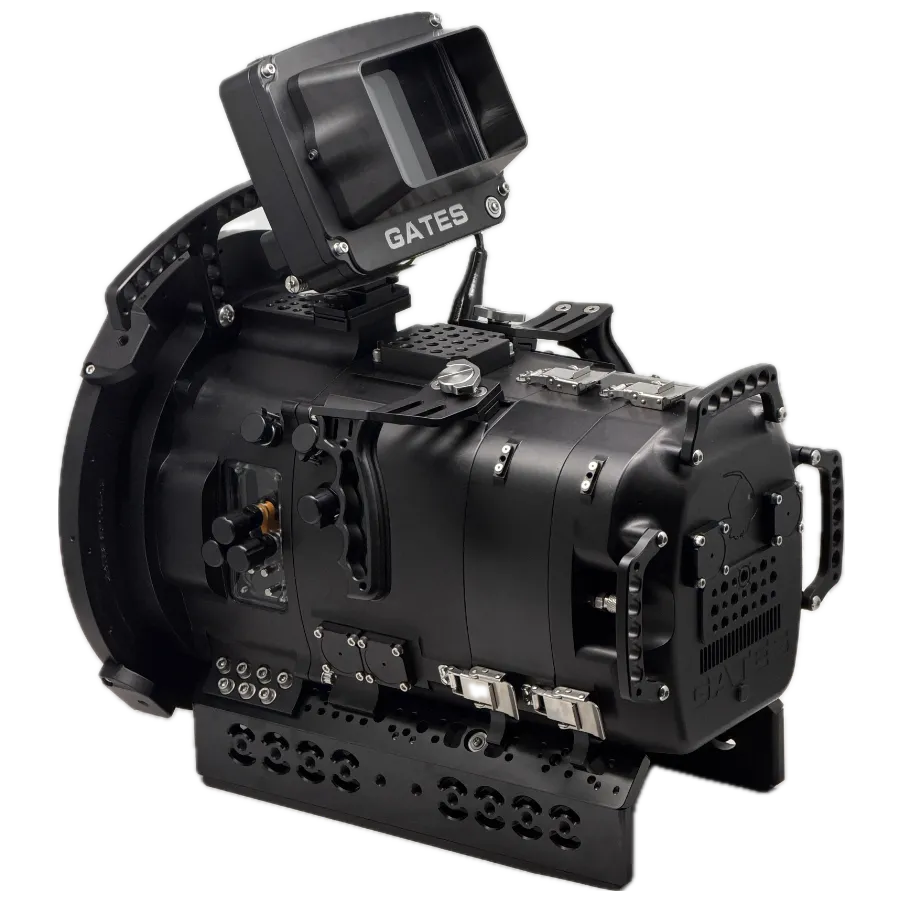

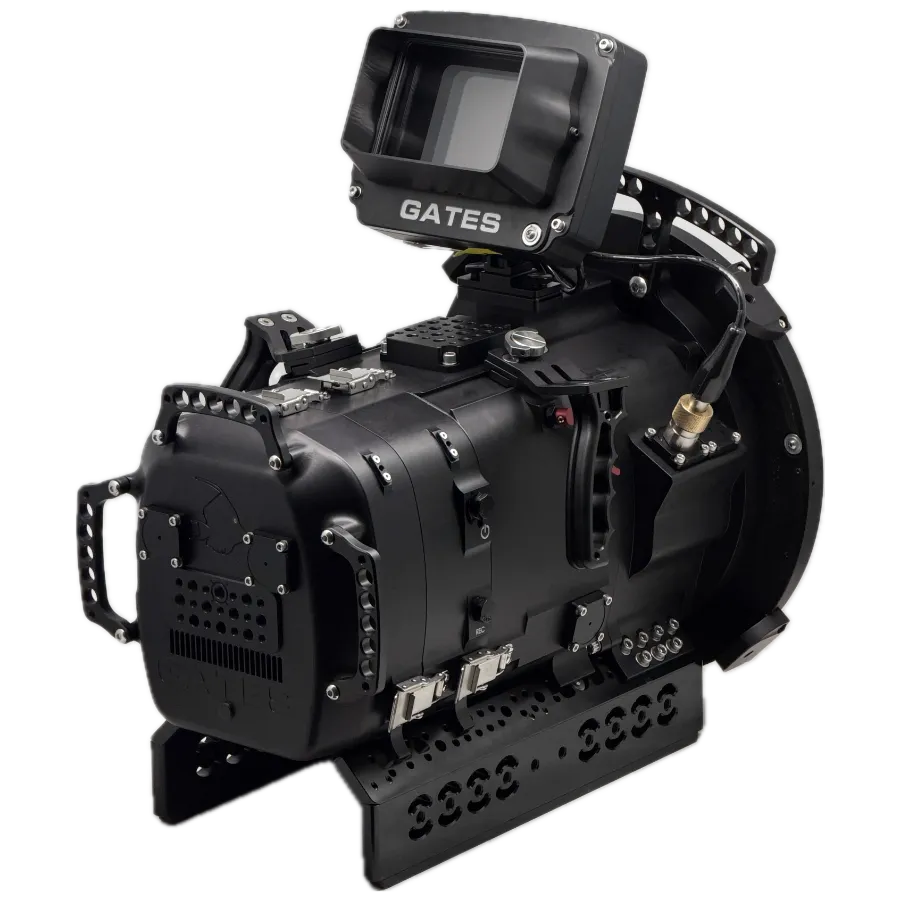

Gates Immersive Housing is a dedicated underwater imaging system designed expressly for the Blackmagic URSA Cine Immersive camera from Blackmagic Design. An integrated platform, Gates Immersive Housing acquires was developed in close collaboration with Apple and Blackmagic Design, and features precise camera alignment and underwater calibration to ensure comfortable, distortion-free viewing on Apple Vision Pro. The system leverages the camera's dual 8K sensors (8160 x 7200 per eye) for ultra-high-resolution, stereoscopic 3D immersive video at 90fps, recording to a single Blackmagic RAW file for simplified workflows in DaVinci Resolve Studio.
Key features include full field imaging behind an impressive 12in / 305mm AR coated glass dome port; Housing controls for solo diver operation, or surface tethers for full remote command / control; fast media / battery change; system calibration matching camera + dome + housing as a unique combination; and Gates EM7 CINE External Monitor for the SmallHD Cine 7 LCD.
The Immersive Housing is, of course, a Gates through and through: reliable, durable construction; field maintainable; know-before-you-go Seal Check system; perfect balance / trim with Gates Buoyancy Trim system, and Gates legendary service / support.
Your dive into Immersive awaits. So don't take a chance…. they take a Gates!

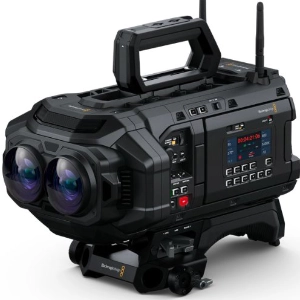

Compatible Cameras: Blackmagic URSA Cine Immersive
Gates Immersive Housing is available for hire from:
Key Features
Original design for Blackmagic
URSA Cine Immersive
Fresh and useful features define Gates Immersive Housing, including several for precise camera/dome/housing registration.

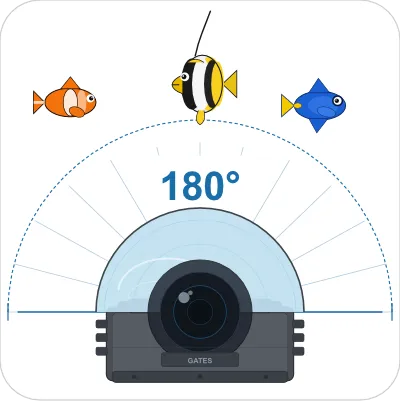

Complete Field of View Imaging

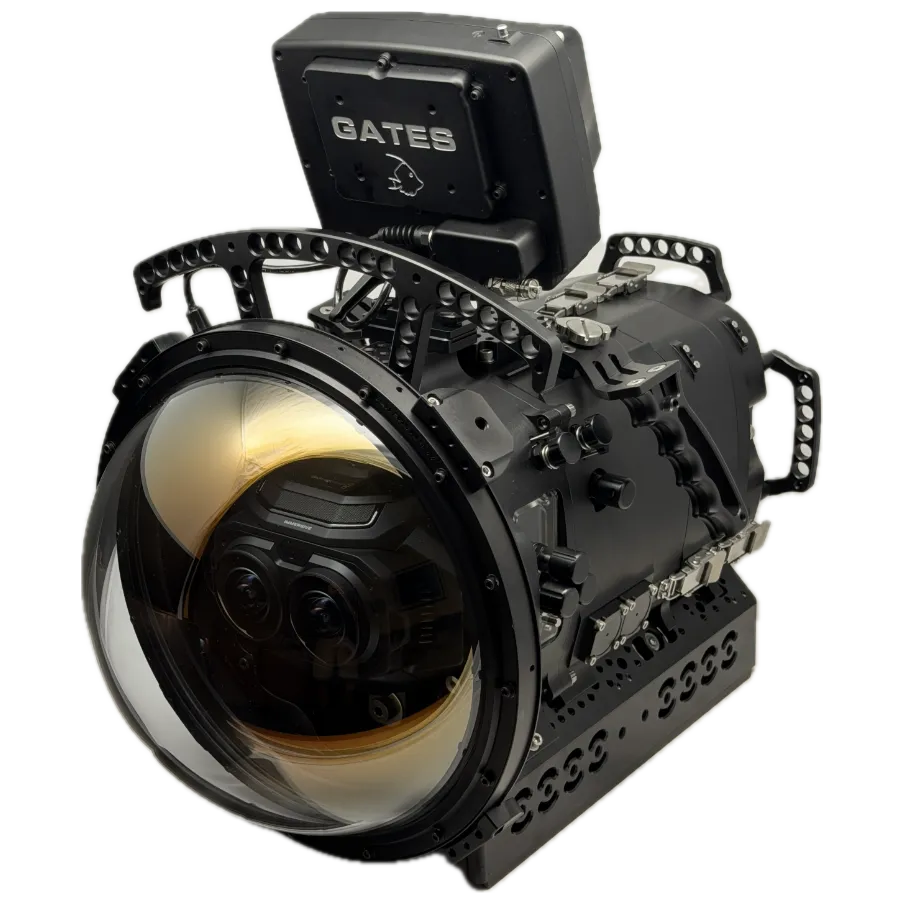

First of it's kind, a remarkable 12.6 in / 320mm AR coated glass dome port is key to retaining a full 180° camera image. No compromises.

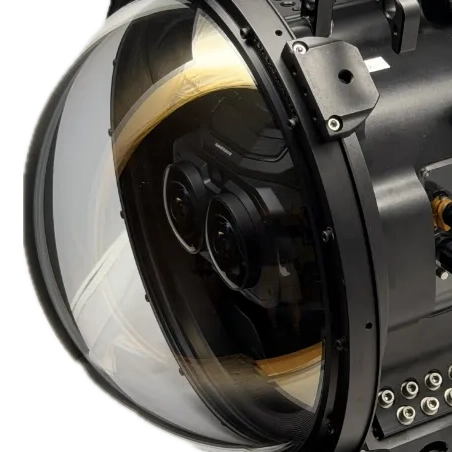

AR Coated 12.6 in / 320 mm Glass Dome
Another Gates innovation, this optically pure anti-reflective glass dome is key to producing the highest quality immersive content for Apple Vision Pro.
Repeatable, Calibrated System for Apple Vision Pro
A comfortable, distortion-free underwater experience is achieved by calibrating the dome / housing / camera system. And the Gates Immersive Housing includes many features for calibration repeatiblity, too.
Diver Operation.... or ....
Controls for ND Filter, ISO, Shutter, White Balance and Assignable are available to the underwater pro.

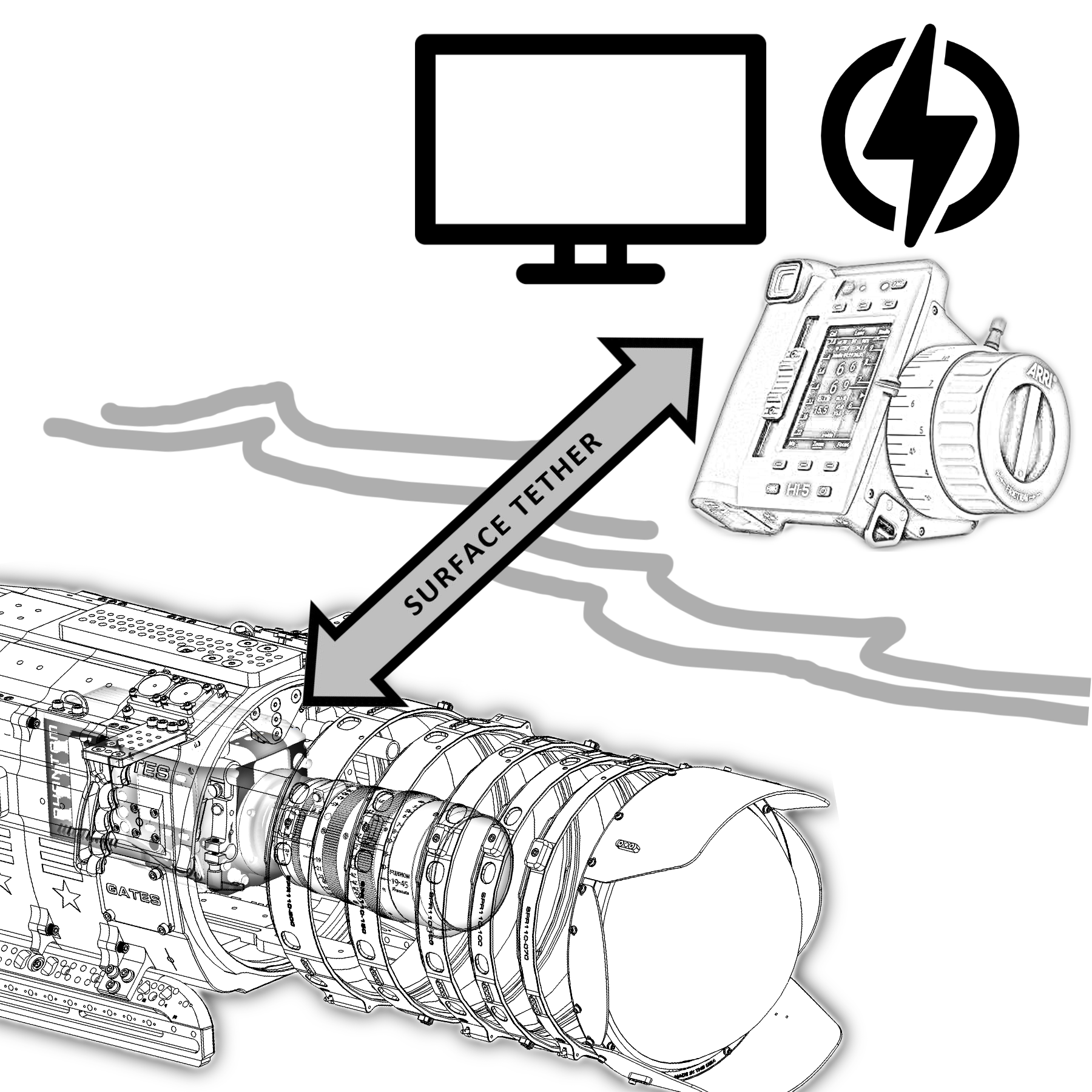

....Surface Command / Control
Comprehensive system remote authority in all categories -- SDI video feed, Gig-E camera control, and DC power -- are enabled via surface tether cables with robust, reliable cables and Gates MultiConn (GMC) Bulkhead connectors.

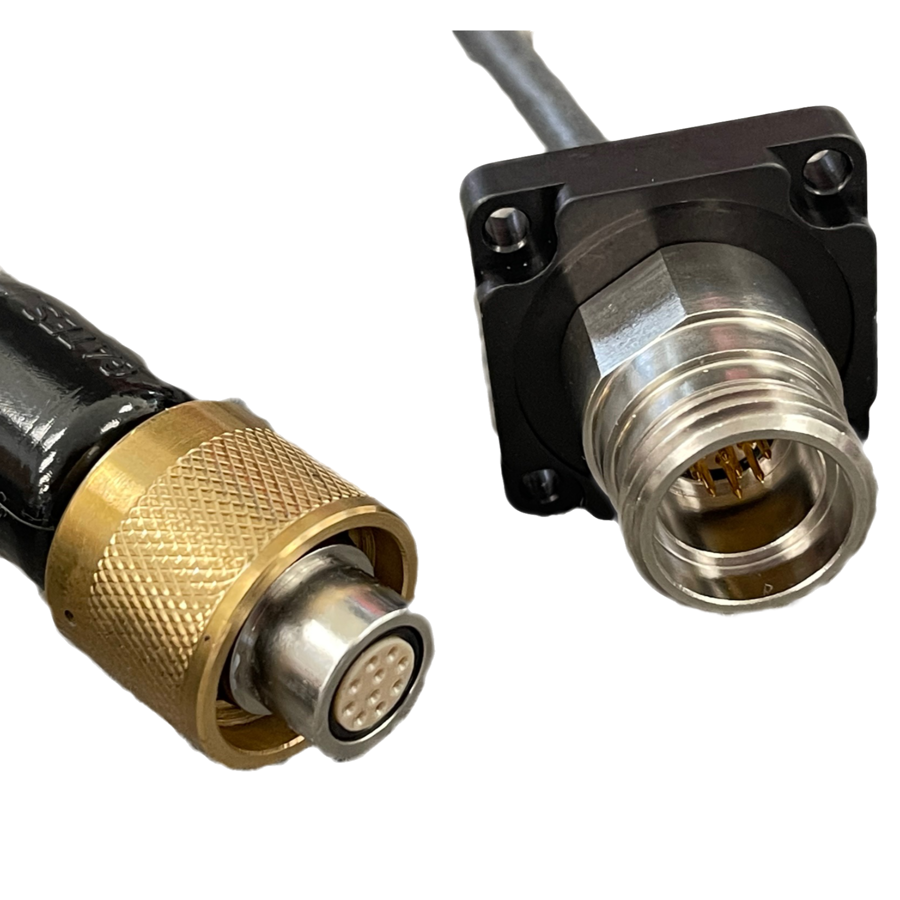

Gates MultiConn (GMC) Bulkhead Connectors
Genuine innovation, Gates MultiConn takes advantage of LEMO connector insert robustness for reliable surface-to-housing command and control.

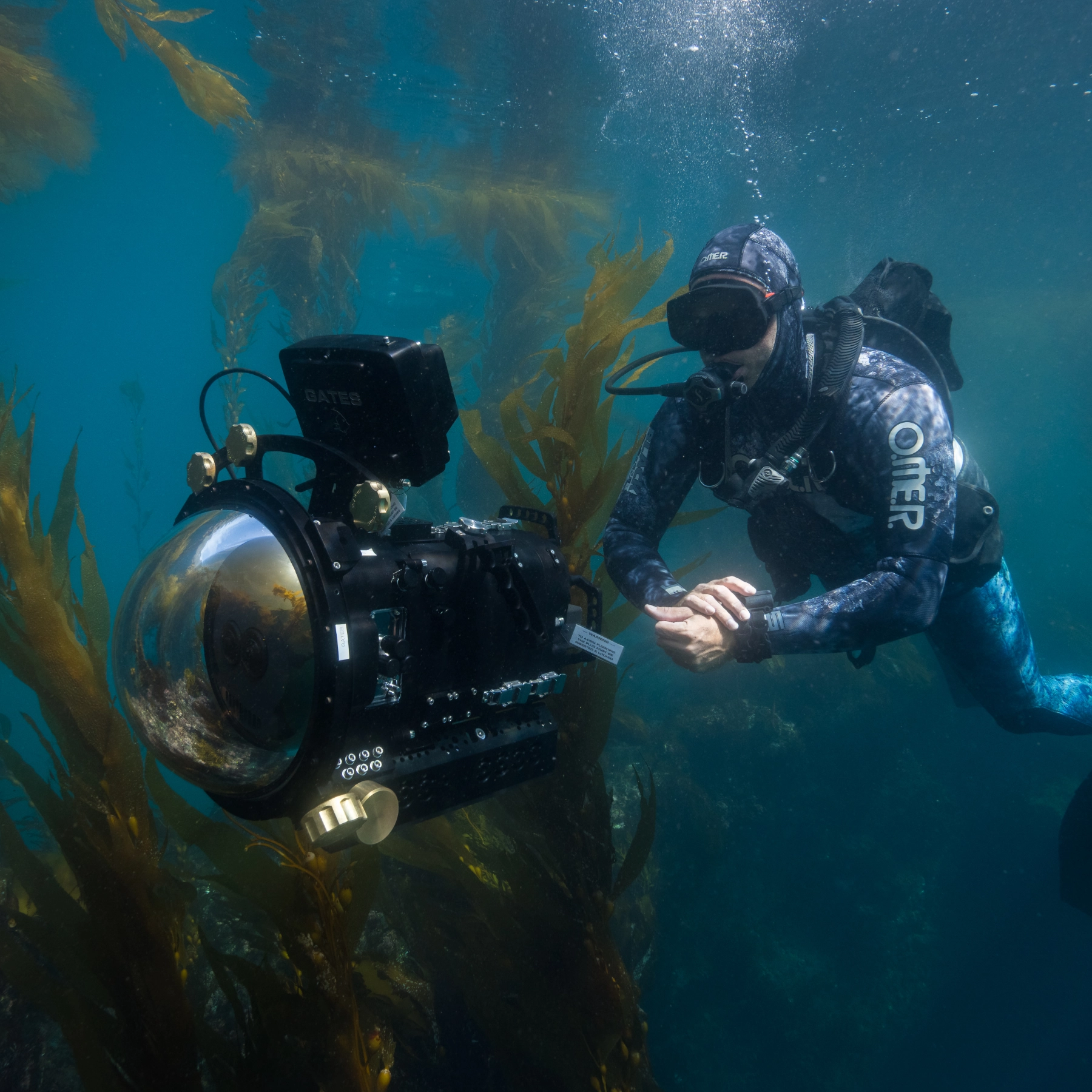

Perfect Buoyancy and Trim
A Gates hallmark, the Immersive Housing can be adjusted to your desire: slightly positive, perfectly neutral, or slightly negative. Gates Trim Weight System makes it entirely your choice.
Big, Bright 7 in External Monitor
Diver monitoring via the Gates EM7 CINE External Monitor, designed for the SmallHD Cine 7 LCD with an easy-to-see 1800 nits brightness.
Seal Check
Know before you go. The Gates Seal Check II is included with Gates Immersive Housing, assuring housing integrity before entering the water.
Field Serviceable
Gates products are nearly 100% serviceable in the field.
Water Alarm
An extra measure beyond Seal Check, the Gates Water Alarm provides both visible and audible warnings.
Diver Controls
- Power On / Off
- Run / Stop
- ND Filter
- ISO Increase / Decrease
- Shutter Up / Down
- White Balance
- Assignables x3
Dimensions: Base System
- Gates Immersive Housing Dimensional Drawing
Construction
- Machined Aluminum, Type III Hard Anodized finish.
- Stainless steel hardware.
Weight in Air
- Housing + EM7 Cine External Monitor 44 lbs / 20 kg
- AR Coated Glass Dome Port 12.6 in / 320 mm 18 lb / 8.2 kg
Weight in Water
- Neutral and trim in diver operation configuration.
- Adjustable with Gates Trim Weight System
Depth Rating
- 150 feet / 45 meters.
Equipment Required
- Camera:
- Blackmagic URSA Cine Immersive
- Blackmagic recording media
- Batteries
- Bebob B90CineML x2 (stackable).
Batteries are not included.
These batteries are recommended for optimal buoyancy / trim. - Other batteries are compatible that have D-Tap connection
in a location that does not interfere with other components.
Contact Gates for details.
- Bebob B90CineML x2 (stackable).
- LCD:
- SmallHD Cine 7 LCD monitor
Optional Surface Tethers
See Surface Tethers Options
External Monitoring
EM7 CINE Underwater Monitor Housing
Compatible Housings: GATES IMMERSIVE HOUSING DEEP WEAPON - RAPTOR
ARRI ALEXA MINI / MINI LF ALEXA 35 ARRI ALEXA FLEX4K
Gates EM7 CINE Underwater Monitor Housing is a bespoke, glove-fit for the SmallHD CINE 7 LCD, offering a vivid 1800 nit 1900x1200 resolution display, visible even the bright daylight of shallow tropical waters. As with all Gates External Monitors, its adjustable base can tilt / swivel to any position for the perfect viewing angle. Simple, robust SDI interface that is broadly compatible with a variety of Gates Housings for RED, ARRI, and Sony. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from the main camera housing shell. For the perfect trim, EM7 CINE can be either slightly negative or perfectly neutral buoyancy with included trim float -- no 'turtling'!
Of course, Gates EM7 CINE Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.
Easy-to-see Daylight Bright 1800 nit Display
SmallHD CINE 7 LCD is a big 7" / 178 mm 1920 x 1200 display with brilliant HDR illumination.
Rugged, Water Blocked Cable
with a tough polyurethane jacket is "bulletproof".
Dual Power Options
Power can be either 2x Sony L-Series batteries (mounted to CINE 7 LCD) or from the main housing system.
2-Year Warranty
Only Gates offers a professional 2-year renewable warranty on all housings.
Tilt / Swivel base mount
Adjust EM7 CINE for the perfect viewing angle. A true professional touch.
No 'Turtling'
Neutrally buoyant design means no fighting a rig that wants to flip over.
Display
- SmallHD CIN 7 LCD
- Illumination: 1800 nits
- Widescreen 7 .0 inch / 178 mm color LCD
- 1920x1200 Resolution
Controls
- Power On / Off
Dimensions
Input Format
- SDI
Material
- Machined Aluminum, Type III 'Hard' Anodized finish
- Stainless steel hardware
Weight
- Dry: 6.1 lbs / 2.8 kg (no LCD, base configuration)
- In Water: Neutral (w/included trim float)
Depth Rating
- 200 feet / 61 meters
Warranty
- 2-Years Renewable
Cable / Connectors
- Marine-grade multi conductor cable
- Gates Pass-Thru type or MultiConn bulkhead connector type
Power Source / Run Time
- Powered by either
- Camera battery; or
- 2x Sony L-Series NP-F970 or equivalent. Batteries mounted to LCD.
- Run time variable depending on battery size.
Gates Immersive Housing
- Gates EM7 CINE GMC Type.
- Power Source:
- Camera battery via D-Tap
Mini/ Mini LF / ALEXA 35 / ALEXA / FLEX4K Housings
- Gates EM7 CINE Small Pass-Thru type. Specify 5000-94-330 BCP ASSY, EM7 CINE SM PASS THRU TYPE
- Standard cable length (housing to monitor) : 18 in / 46 cm. Custom lengths available.
- Power Source:
- Camera / Camera battery via D-Tap; or
- 2x L-Series batteries NP-F970 or equivalent
DEEP WEAPON / DEEP RAPTOR Housing
- Gates EM7 CINE Large Pass-Thru type. Specify 5000-94-331 BCP ASSY, EM7 CINE LG PASS THRU TYPE
- Standard cable length (housing to monitor): 24in / 61 cm. Custom lengths available.
- Power Source:
- Camera / Camera battery via D-Tap; or
- 2x L-Series batteries NP-F970 or equivalent
Housings using Gates MultiConn (GMC) bulkhead connector system
- Gates EM7 CINE GMC type. Specify
- 5000-94-332 GMC ASSY, EM7 CINE MON
- 5000-94-300 GMC ASSY, BLKHD, EM503 MON (Same as EM503)
- Standard cable length (housing to monitor): Approx 18in / 46 cm. Custom lengths available.
- Power Source:
- Camera / Camera battery via D-Tap; or
- 2x L-Series batteries NP-F970 or equivalent
Port Options
At a remarkable 12.6 in / 320 mm diameter, the SP110-12 stands alone, a new standard in underwater optics. Optical glass with anti-reflective coating, SP110-12 is designed for rectilinear cinema lenses, yet equally at home in natural history applications where split shots and close focus are key parameters. ARRI Master Primes, Fujinon Cinema Zoom's and Anamorphic Lenses all benefit from this superior, 'no compromises' Dome Port. The SP110-12 is available in Anti-Reflective (AR) coated glass only. For medium to wide and fisheye imaging, the SP110-12 excels at rectilinear imaging, particularly with PL mount cinema lenses. The SP110-12 is made of optically pure BK7 Anti-Reflective (AR) coated glass domes. The SP110-12 is compatible with hundreds of lenses. Click the link above to Gate Lens Compatibility Reference.
SP110-12 Dome Port
Superior Rectilinear Compatibility
AR Coated Glass
Versatile
Material Options
Element Diameter / Clear Aperture
Dome Spherical Diameter
Depth Rating
Optional Surface Tethers
Gates Immersive Housing offers three surface tethers options: Camera Control, Power, and SDI Video Feed.
Details here: Gates Surface Cable Options, Immersive Housing
Camera Control
Gates MultiConn bulkhead connector and a tough, polyurethane jacketed CAT5 cable Ethernet cable enable full camera control with the Blackmagic Camera App. iOS and Android versions.
Cables reference:
- 5000-94-183 GMC ASSY, SRFCE GIG-E
- 5000-94-194 GMC ASSY, BLKHD GIG-E RJ45
SDI Video
Robust 3GHz swept coax cable and Gates MultConn 75Ω Triax delivers 3G-SDI video up to 150 feet.
Cables reference:
- 5000-94-204 GMC ASSY, SURFACE SDI BNC
- 5000-94-205 GMC ASSY, BLKHD SDI BNC
Power
Surface power source via power bank 24-28 VDC, delivered over Gates MultiConn and 14AWG / 2.5mm2 gauge wire for minimal losses.
Kit items:
-
- 5000-94-225 GMC ASSY, SRFCE PWR 3PIN XLR 14AWG
- 5000-94-391 GMC ASSY, BLKHD PWR 2P LEMO
- 5000-94-392 CABLE ASSY, PWR DC CONV - ARRI 8P
- 5000-94-393 CABLE ASSY, LEMO 2P - MINI XLR FMLE
- 0295-10-536 SUBASSY, DC CONVERTER BRICK, IMMERSIVE P2
Support
-
- Gates Immersive Housing FAQ's
- Gates Immersive Housing Dimensional Drawing
- Gates Immersive Housing Specialists
