Phantom Flex 4K Underwater Housing - Gates Underwater Products

High Speed 4K Underwater Imaging

Designed specifically for the Phantom Flex 4K camera, the Gates Flex 4K housing provides underwater imaging at 4K resolution and an unprecedented 960 fps. Fast action sequences like predation and feeding are a super slow motion delight. Developed in close collaboration with Vision Research Inc the Flex 4K housing includes integrated features like remote run / stop and full camera menu access. Of course Gates benchmark 2 year renewable warranty and legendary reliability are standard with the Flex 4K housing.

Professionals the world over know that failure is not an option. From research to broadcast TV and cinema productions, they never take a chance...they take a Gates!

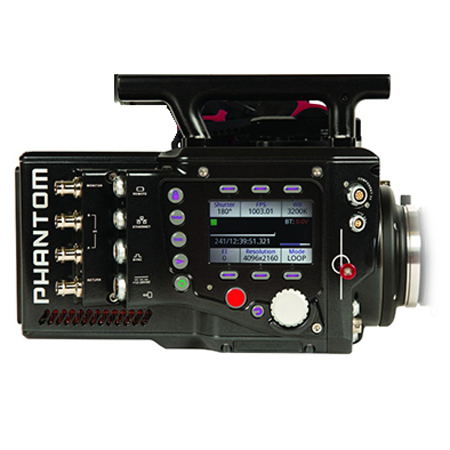

Compatible Cameras: Vision Research Phantom Flex 4K

Key Features

Durable

"Bulletproof" machined aluminum, black type III 'hard' anodize finish and sealed with a nickel-acetate process.

User friendly field serviceable controls

User friendly field serviceable controls are 100% mechanical -- no complicated mechanisms or electronics to fail.

Simplicity = Reliability

TVL 55 Monitor Case

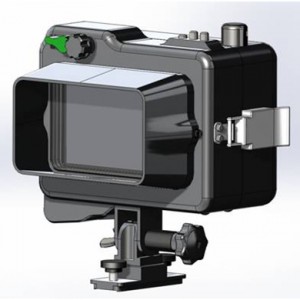

The TVL55 External Monitor housing is included with the PF4K. It is designed specifically for the TV Logic VFM-058W field monitor.

Precision Ports™

Quality optics means clarity, sharpness and NO vignetting (cutoff dark corners) to spoil your images.

Accessories Suite

An extensive set of accessories is available for cinema, natural history, broadcast TV, research, military and many more applications.

2-Year Warranty

Only Gates offers a 2-year, renewable warranty on all housings.

Extensive Lens Support

Many PL mount lenses are supported in the PF4K Housing. (Contact Gates for details).

Adjustable Buoyancy and Trim

Add /remove trim weights for ideal buoyancy and balance -- a key to stable, fluid shots.

Adjustable Handles

Adjust the handles for perfect grip and convenient access to controls.

Seal Check II

The Gates Seal Check II is included with the Flex 4K and assures housing integrity before entering the water.

Learn more....

Field Serviceable

Gates products are nearly 100% serviceable in the field.

Specifications

Controls (All Mechanical)

Power On/Off
Remote Trigger (LOOP mode) and Record/Standby (R/S Mode)
Soft Keys x 6
Assign 1 / 2
Record
Select / Set Roller
Playback
Lock
Tools
Back
Direct lens coupled (manual) Iris
Direct lens coupled (manual) Focus
Direct lens coupled (manual) Zoom

Dimensions: Basic Shell

Transport size with 8" dome, PE286

19.7" L x 11.5" H x 11.9" W ”
50 cm x 29.2 cm x 30.2 cm

Fully Assembled with monitor, handles, 8” dome, PE286

19.7" L x 17.7" H x 16.5" W ”
50 cm x 49.5 cm x 41.9 cm

Construction

Machined Aluminum, Type III Hard Anodized finish.
Stainless steel hardware.

Weight in Air

33 lbs / 19.5 kg (complete w/camera)

Weight in Water

Fully adjustable buoyancy / trim

Depth Rating

200 feet / 61 meters.

Batteries

Hawkwoods RP-150 / RP-165.
Other V-Lock types (contact Gates for details).

Warranty

2 Years Renewable. Gates Warranty Details.

Included Items

External LCD Monitor shell only(LCD not included)
Gates [infopopup:seal-check] system
Pelican Case
Tool & O-Ring Kit

Equipment Required

(Basic set. See Supported Equipment for more info)

Vision Research Flex 4K Camera
Cinemag
TV Logic VFM-058W
V-Lock type battery
LENS of choice (contact Gates for details)

Monitor Options

Underwater Monitor Housing is included with FLEX4K Housing. LCD's not included

EM7 CINE Underwater Monitor Housing

Compatible Housings: GATES IMMERSIVE HOUSING DEEP WEAPON - RAPTOR
ARRI ALEXA MINI / MINI LF ALEXA 35 ARRI ALEXA FLEX4K

Gates EM7 CINE Underwater Monitor Housing is a bespoke, glove-fit for the SmallHD CINE 7 LCD, offering a vivid 1800 nit 1900x1200 resolution display, visible even the bright daylight of shallow tropical waters. As with all Gates External Monitors, its adjustable base can tilt / swivel to any position for the perfect viewing angle. Simple, robust SDI interface that is broadly compatible with a variety of Gates Housings for RED, ARRI, and Sony. Two power options are available: 2x Sony L-series batteries (with optional shell extension), or a slim, travel-able version driven by the camera power source from the main camera housing shell. For the perfect trim, EM7 CINE can be either slightly negative or perfectly neutral buoyancy with included trim float -- no 'turtling'!

Of course, Gates EM7 CINE Underwater Monitor Housing comes with 'bulletproof' construction, a 2 year renewable warranty‘ and legendary Gates customer support. Reliable, durable, dependable – the Gates hallmark for over 50 years.

Key Features

Easy-to-see Daylight Bright 1800 nit Display

SmallHD CINE 7 LCD is a big 7" / 178 mm 1920 x 1200 display with brilliant HDR illumination.

Rugged, Water Blocked Cable

with a tough polyurethane jacket is "bulletproof".

Dual Power Options

Power can be either 2x Sony L-Series batteries (mounted to CINE 7 LCD) or from the main housing system.
