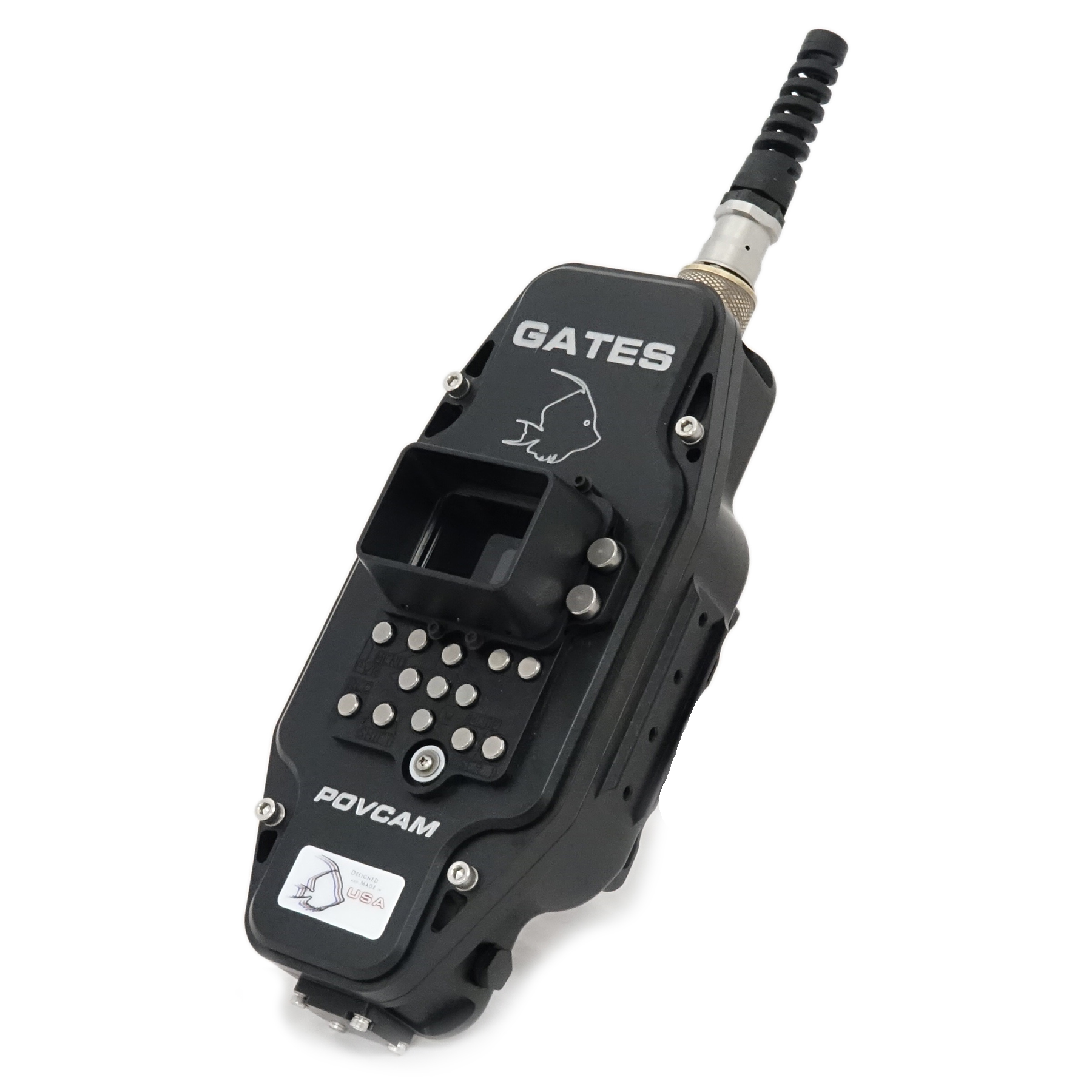

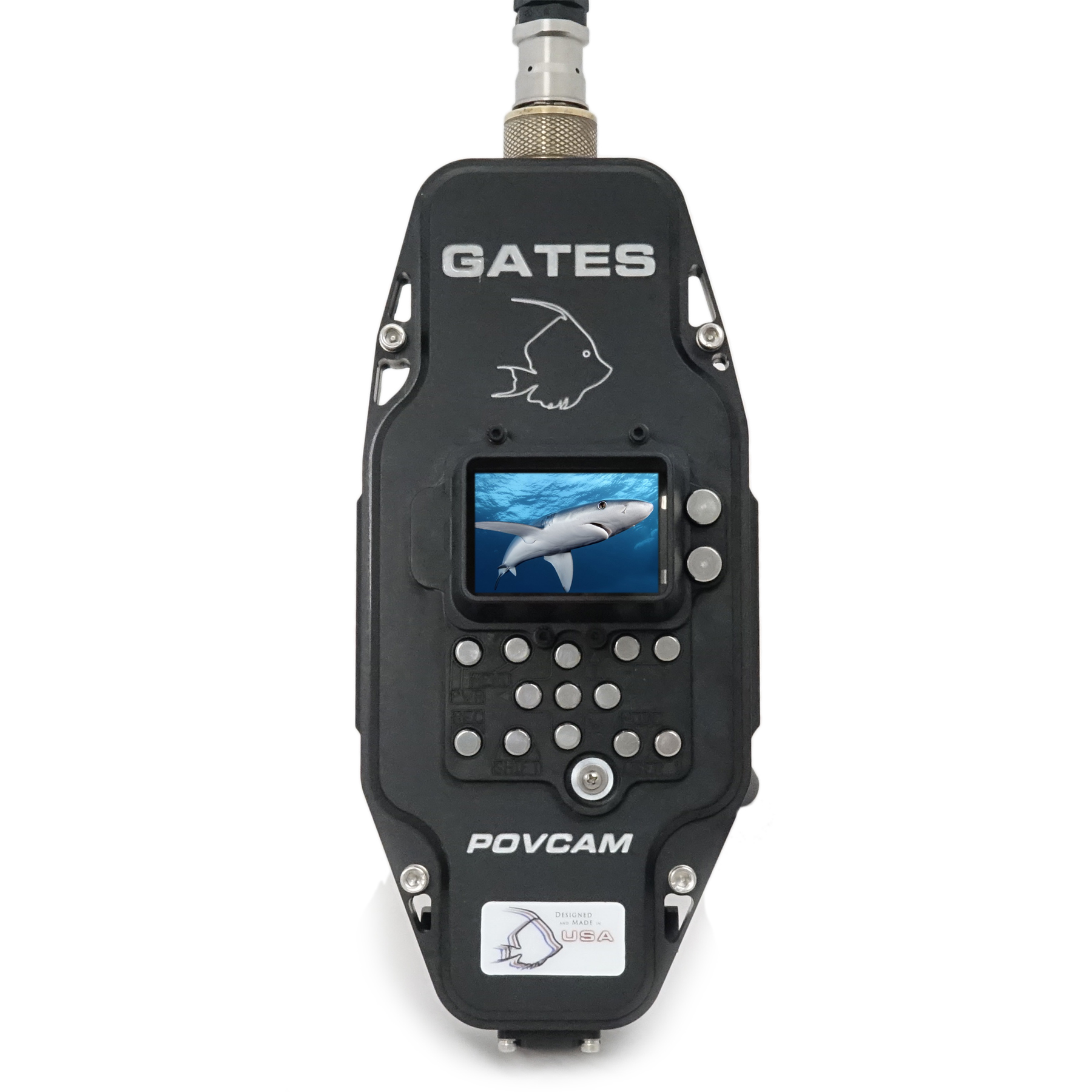

Point of View 4K Remote Imaging

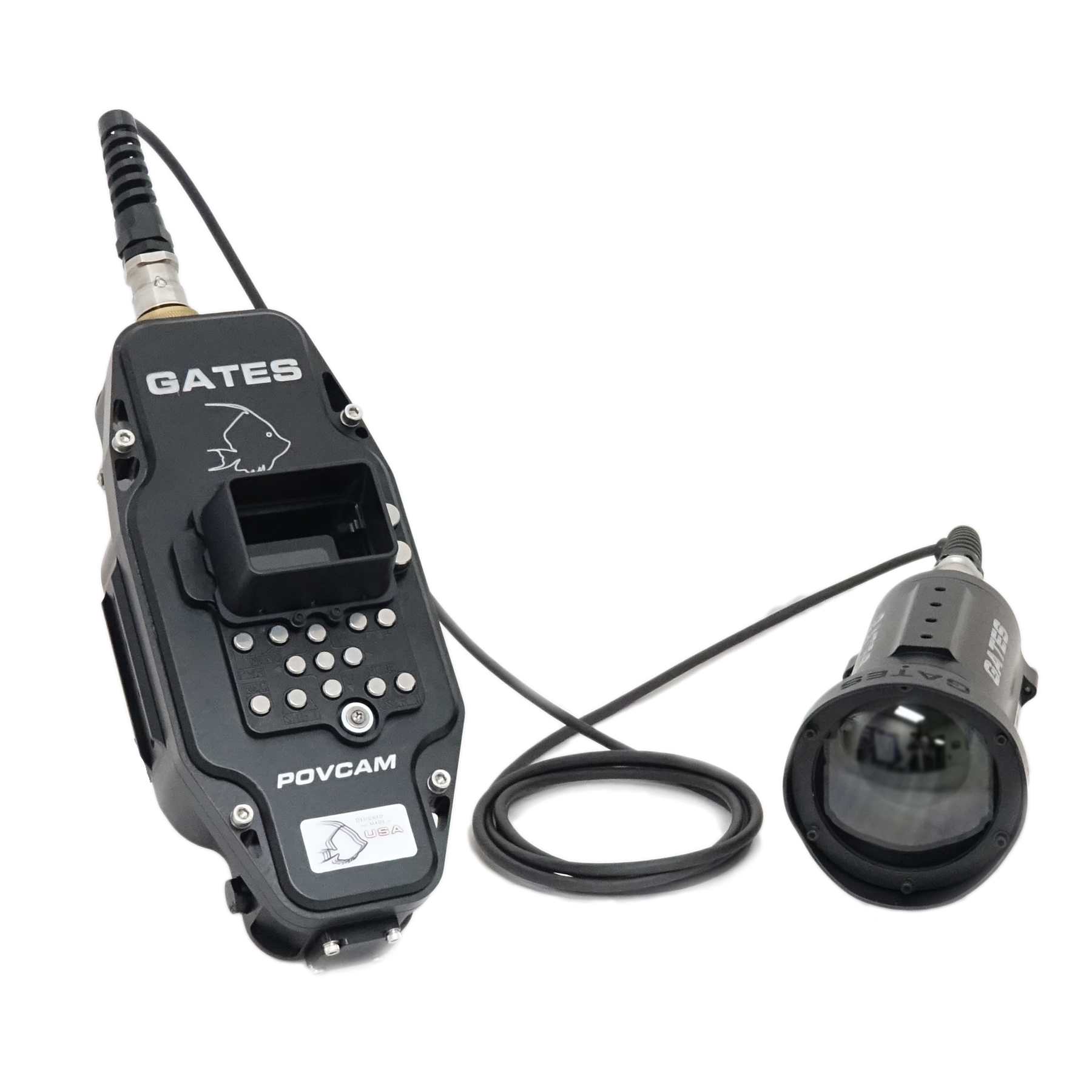

Successor to the highly successful HMR10/HCK10 POV HD Housing, the new Gates POV CAM is a 4K Point Of View system with remarkable UHD imaging from up to 60ft / 20m away. POV CAM is perfectly suited for remote imaging applications where distance and/or small camera size are important. Like a highly maneuverable pole cam for an up close and personal underwater Polar Bear shot. A tight cenote passage ahead can be inspected before attempting entry. Or how about POV action of a shark feed with the UCK20 camera housing in the frenzy? POV CAM has countless Natural History, research, military and broadcast applications. What will you do with POV CAM?
The POV CAM system of course includes Gates legendary 2 year warranty and customer support. Reliability, durability, dependability – the Gates hallmark for 50 years.
Don't take a chance…. take a Gates!
Key Features
Highly configurable and glove-fit shell
for a myriad of uses that require distance and/or small size.

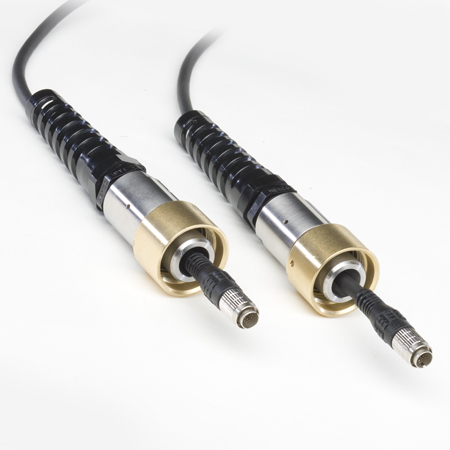

60ft / 20m Cable distance
between camera / recorder using Gates proprietary bulkhead pass-through design. Reliable signal integrity.

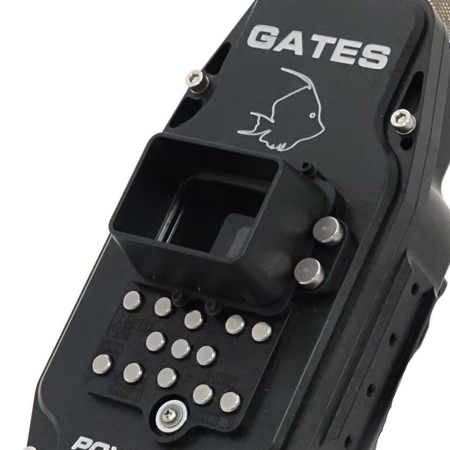

Clean, Uncomplicated Design
is field serviceable.
Simplicity = Reliability
HD-SDI Surface Feed
for topside viewing and recording (optional).
Seal Check Lite
ensures housing integrity before entering the water. ‘Peace of mind ahead of time.’ (optional)
Precision Ports
Means clarity and sharpness, critical to 4K underwater imaging.

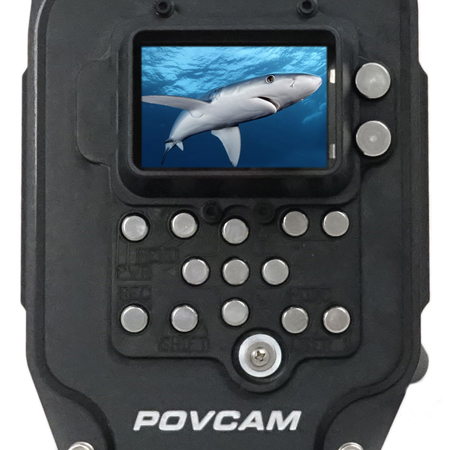

Full Camera, Menu and Soft Key Control
provides underwater access to all functions. Detachable shade, too.
Specifications (preliminary)
Controls (All Mechanical)
- Power
- Record/Standby
- Mode
- User
- Menu
- Adjust +/-
- Set
- Navigation (up/down/left/right)
- Touch Keys x 4
Dimensions

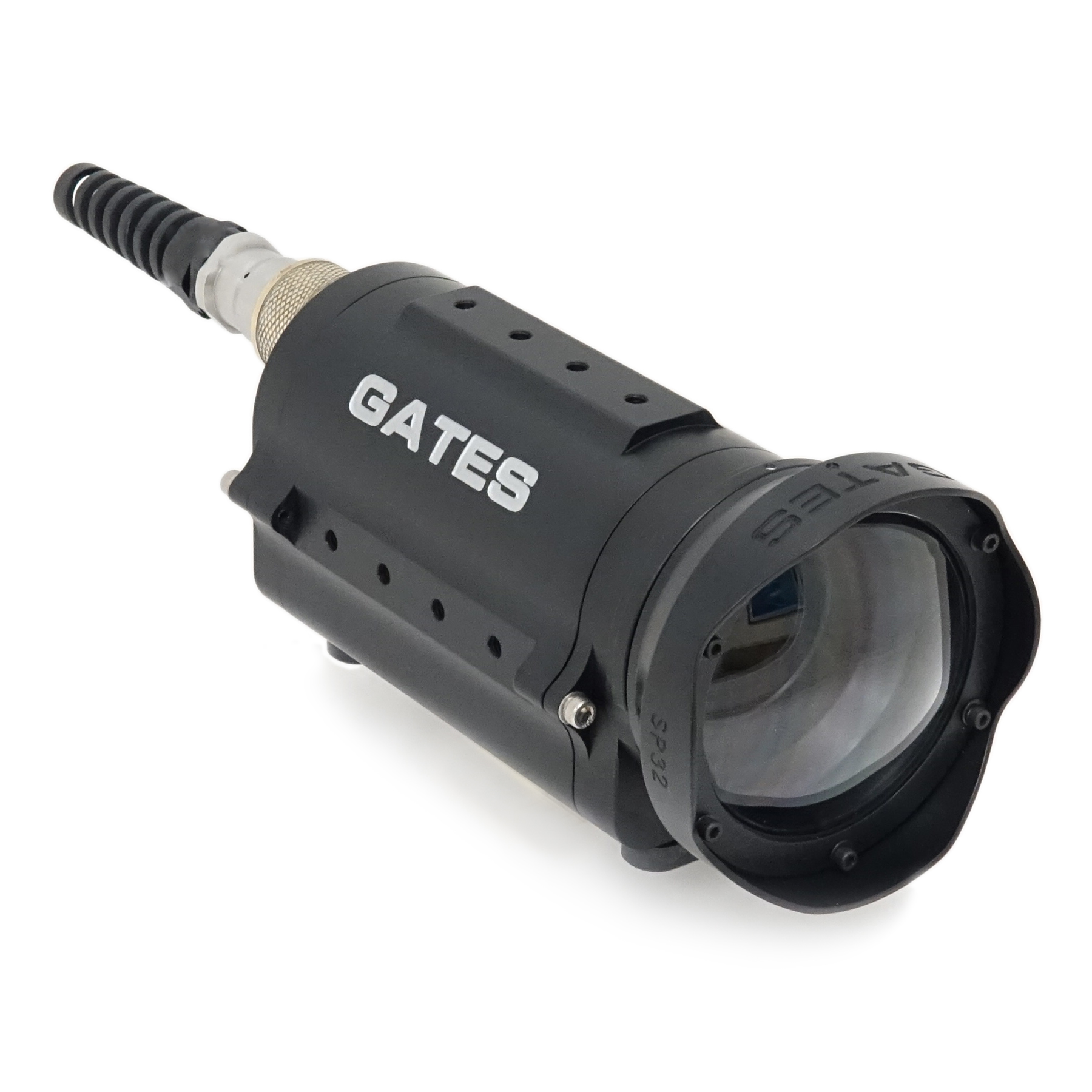

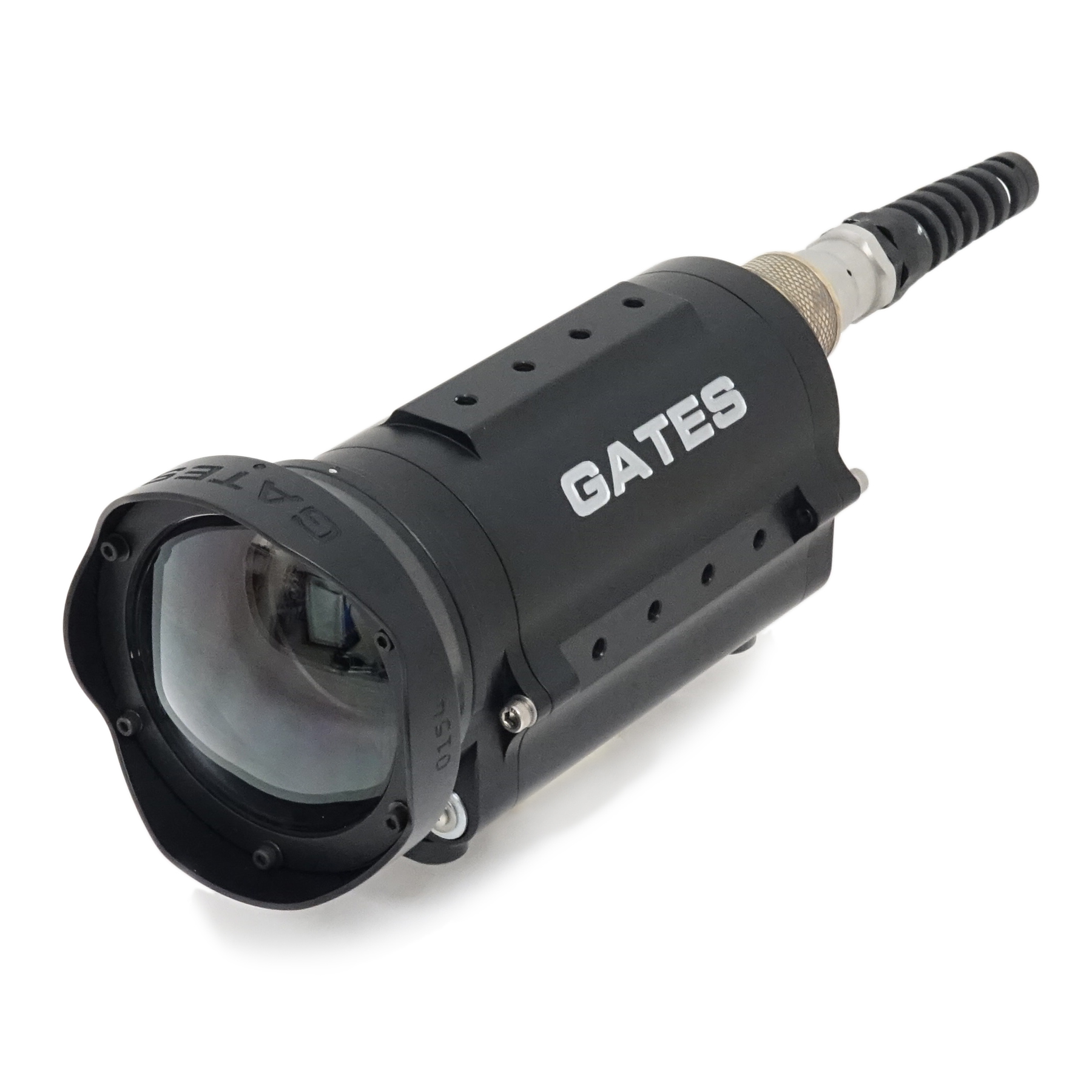

UCK20 Camera Housing Dimensional Drawing
UMR20 Recorder Housing Dimensional Drawing
Construction
- Machined Aluminum, Type III Hard Anodized finish.
- Stainless steel hardware.
Weight in Air
- UMR20: 4.65lb / 2.1kg w/GP32A Wide Angle Port
- UCK20: 3.85lb / 1.8kg
Weight in Water
- UMR20: 16oz / 454g negative w/GP32A Wide Angle Port
- UCK20: 15oz / 425g negative
Depth Rating
- 250 feet / 75 meters
Batteries
- Accommodates all Panasonic batteries including AG-VBR118G (11800 mAh)
Warranty
- 2 Year Renewable. Gates Warranty Details.
Port Options
The best camera in the world can't make up for poor optics. Poor optical design and materials introduce ‘image killers’ – distortions, aberrations, degraded resolution, or vignetting. Gates family of Precision Ports are sharp and clear: the finest optics for the finest underwater images. No image killers.
Professional to amateur, super wide to macro, Gates Precision Ports suit a wide range of needs, conditions and experience. Of course all ports are backed by our legendary customer support and the same standard of excellence expected of all Gates products.

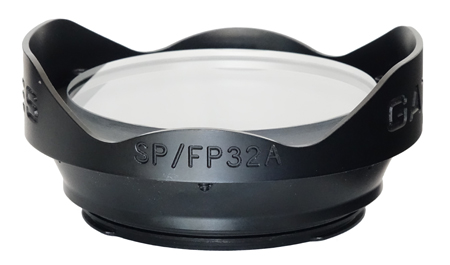

Flat (Macro) Port FP32A or FP32B
A simple, versatile port, the FP32A is ideal for medium to macro imaging. Diopters on the camera increase magnification for even smaller subjects.
Versatile
The FP25 allows full camera zoom support for medium to macro imaging.

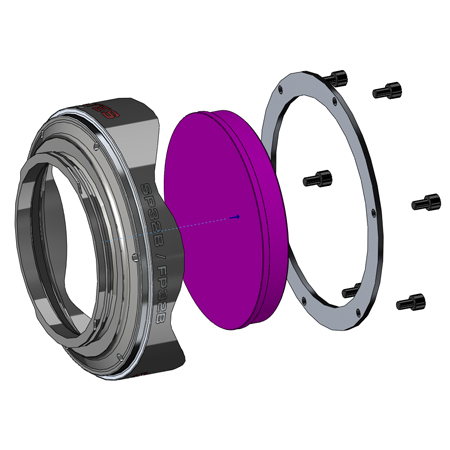

Field Replaceable
The FP25 element is user-changeable in the field.

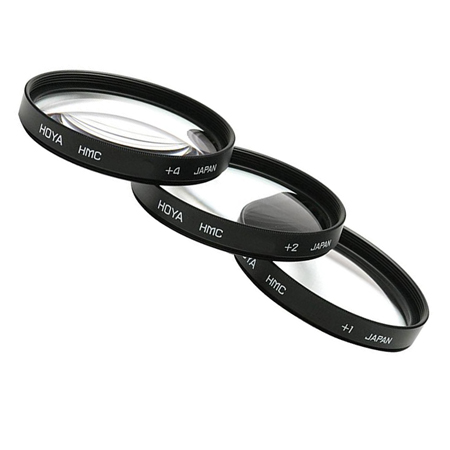

Macro Imaging
For tiny critters, the FP25 is perfect for use with close up lenses like +1, +2 and +4 diopters.
Material
- Optical grade Acrylic / Perspex
Element Diameter / Clear Aperture:
- 2.8 in / 71mm
Depth Rating
- 450ft / 137m
Optical Notes
- Flat ports reduce Field of View (FOV) by 20% underwater.

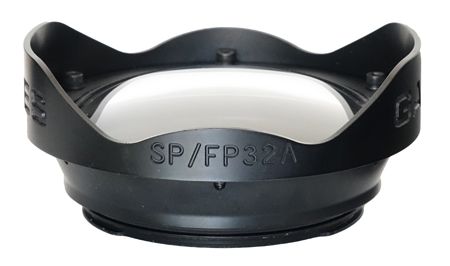

Standard (Dome) Port SP32A
The SP32A is a classic dome design that preserves camera field of view (FOV) underwater. The acrylic (perspex) element is field serviceable / replaceable.
Classic Design
A simple dome element port that preserves the camera FOV at wide angles.

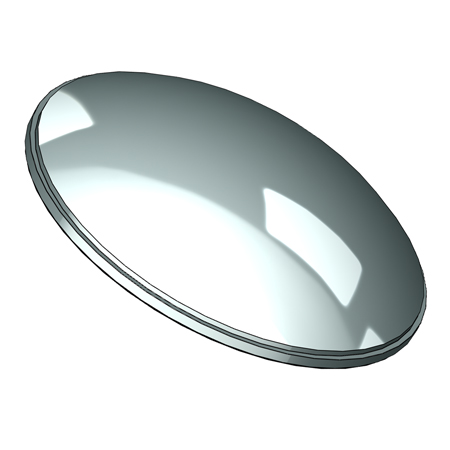

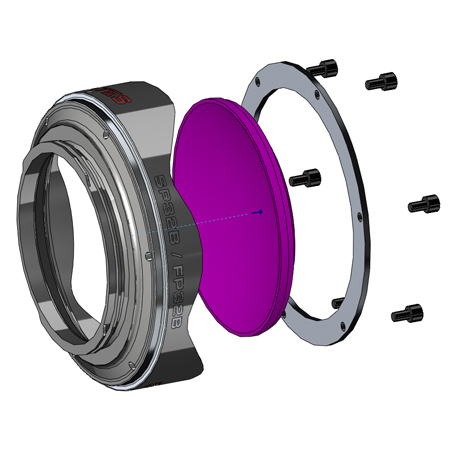

Field Serviceable
Field Serviceable and replaceable dome element.
Dome Material
- Acrylic / Perspex. Field serviceable / replaceable.
Element Diameter / Clear Aperture:
- 2.8 in / 71mm
Dome Spherical Diameter
- 8in / 203mm
Depth Rating
- 450ft / 137m
Optical Notes
- The SP25 Dome Port is generally compatible with cameras only at full wide. Depending on the camera, it provides little or no zoom through zoom support.

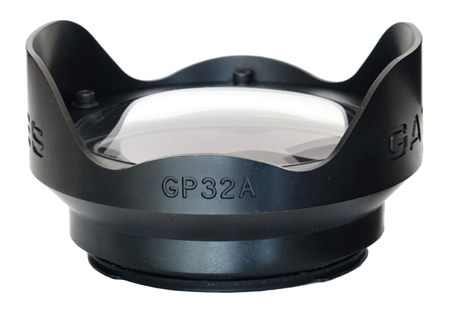

Wide Angle Port GP32A
A practical 'all in one' port, the GP32A performance ranges from Dolphins to Nudibranchs. A Gates workhorse. The optical acrylic (perspex) outer dome element is field serviceable / replaceable.
Wide Angle Imaging
At the wide end, the GP32A provides up to 90° diagonal FOV.

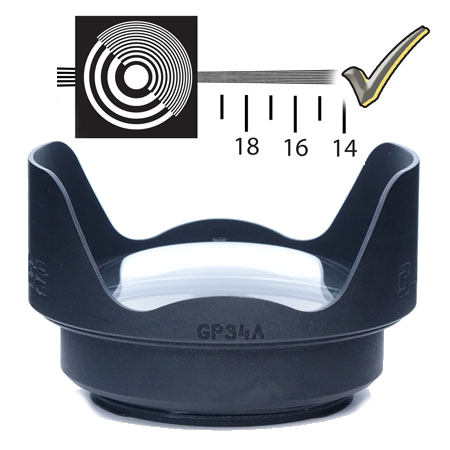

High Performance
The GP32A supports 90% of the UCK20 camera zoom range.
Tough and Durable

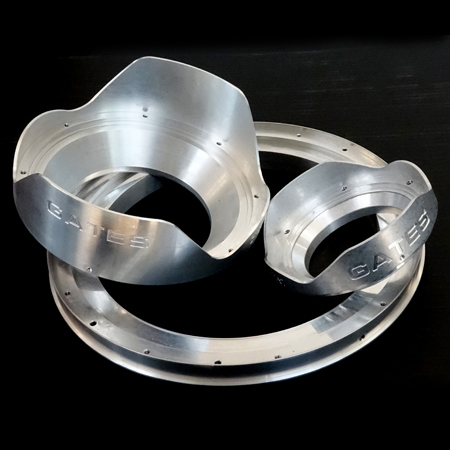

A workhorse port, the GP32A has an aluminum shell and acrylic outer dome. Depth rating 450' / 137m,
Field Serviceable
Field Serviceable and replaceable dome element.
Dome Material
- Acrylic / Perspex. Field serviceable / replaceable.
Magnification / Field of View (FOV):
- 0.8X / ~80-100° Field of View (Dependent on camera).
Replaceable Dome Spherical Diameter
- 8in / 203mm.
Depth Rating
- 450ft / 137m.
Optional Accessories

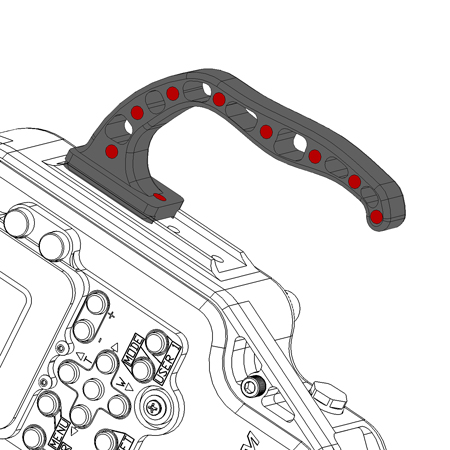

Carry Handle
Easy grip, transport and handling.
HD-SDI Surface Feed
Need topside monitoring? 50 to over 300 feet of high speed SDI is available. Certified coaxial cable and gold contact bulkhead connectors.
Seal Check Lite
Verify housing integrity before entering the water. A Gates original.
Surface and / or Underwater Command / Control of Astera Titan Tubes, the "the ultimate LED tube for filmmakers, TV studios and any creative person."
Underwater Titan Tube (UT2)
Learn more....

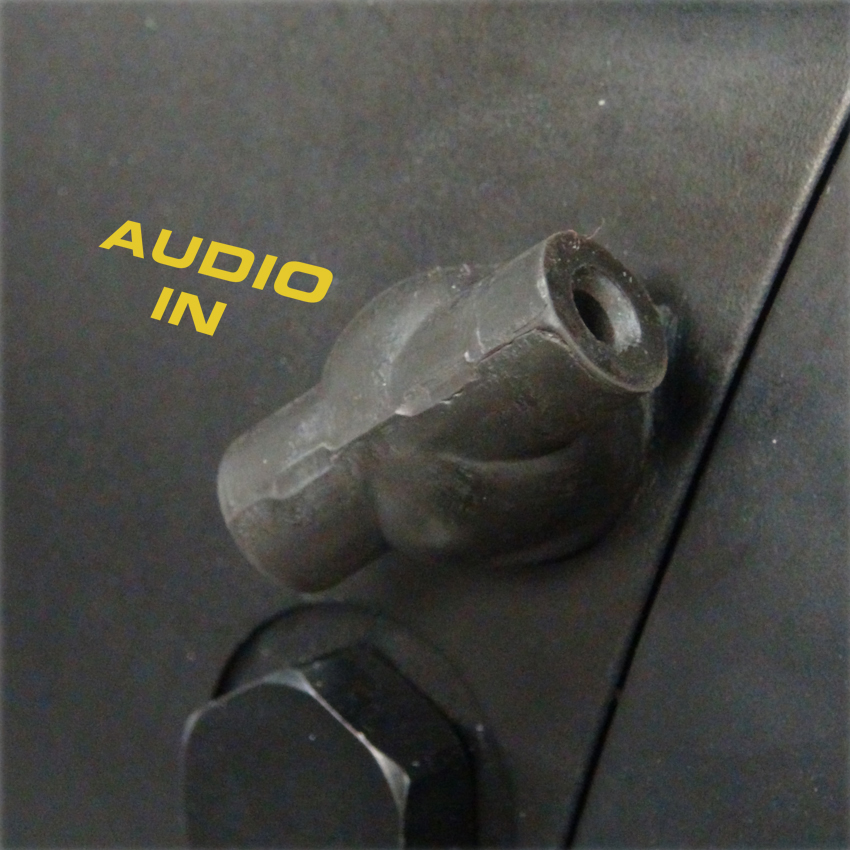

Diver Comm / External Power Input
Diver communications capture on-camera.
Customization
Special modifications are routine. A tailored housing to suit your unique application.
